Trakmotive CV Axle Shaft for Corolla, Matrix, Vibe TO-8233
Regular price $0.00 $107.16
eBay TrakMotive CV Axle Shaft for Corolla, Matrix, Vibe TO-8233 Fitment Chart: Years Make Model Submodel Body Type Drive Type Transmission Liters...
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.

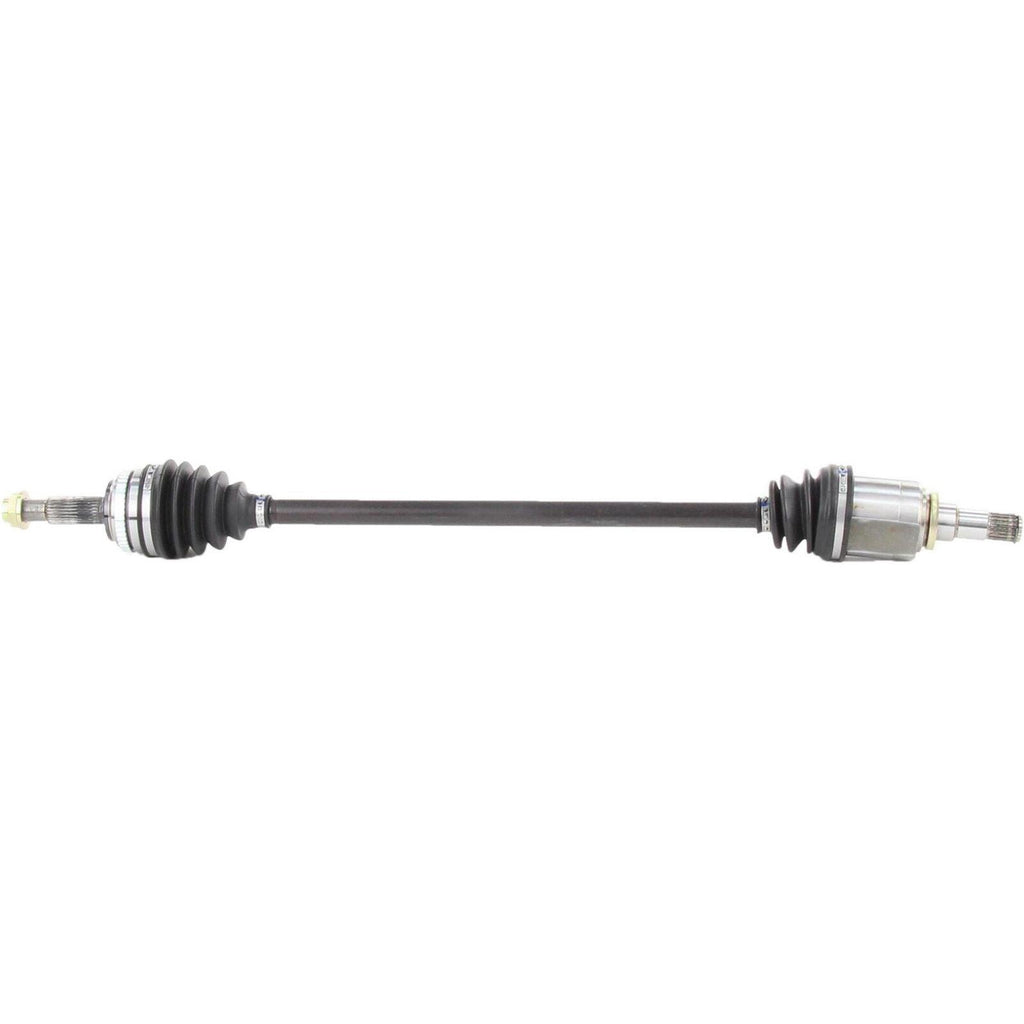

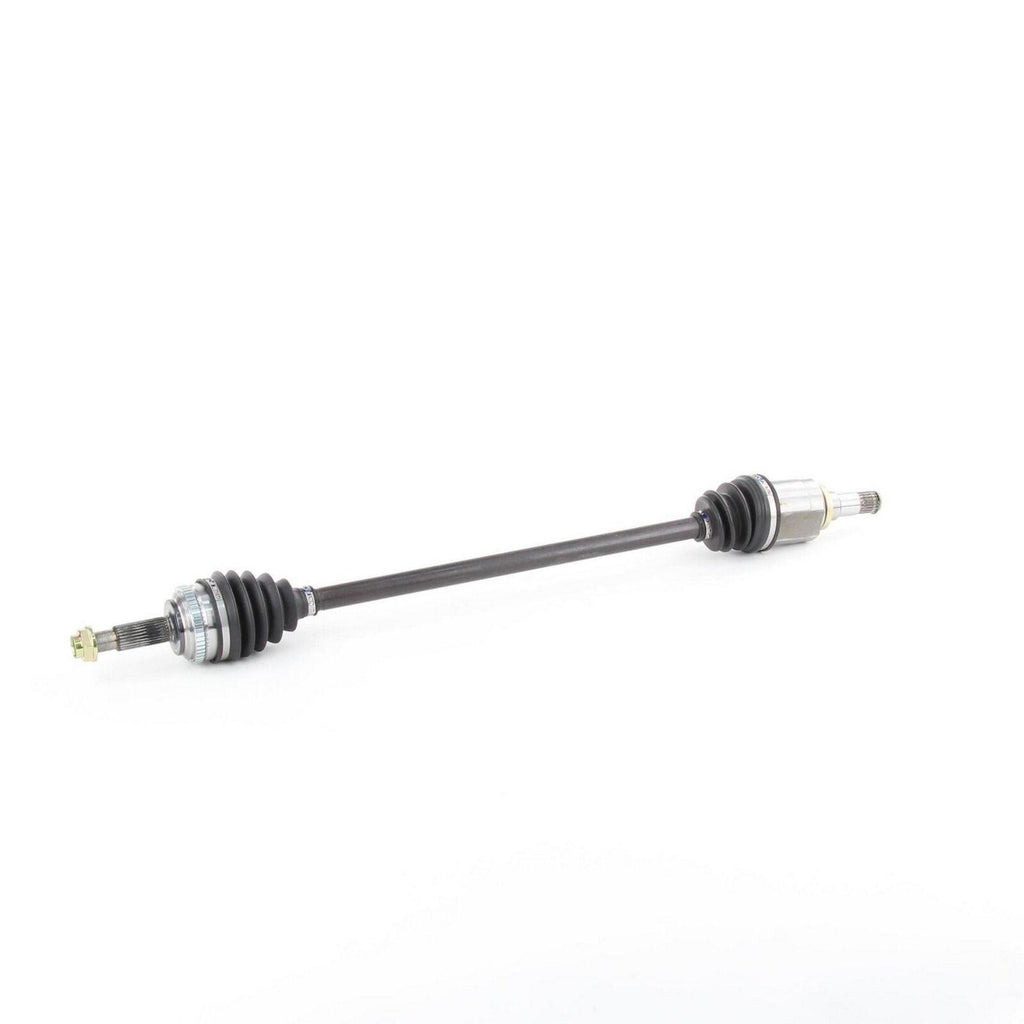

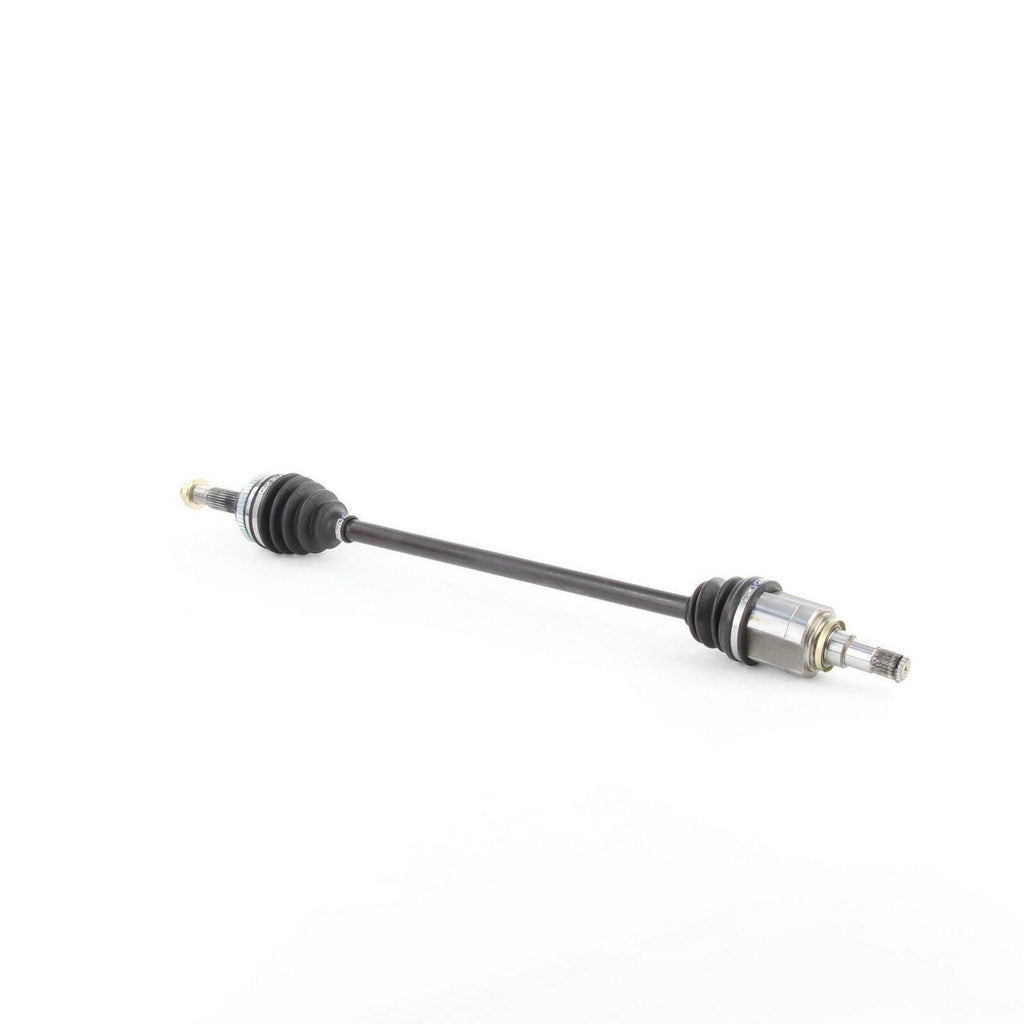

TrakMotive CV Axle Shaft for Corolla, Matrix, Vibe TO-8233
Specifications:
Part Category: CV Axle Shaft
Brand: TrakMotive
Manufacturer Part Number: TO-8233
Vehicle Position: Front Passenger Side
Placement on Vehicle: Front Right
Label: CV Axle Shaft
Product Type: Factory Replacement
Type: CV Axle Shaft
Number of Pieces: 1
Abs Ring Tooth Count: 48
Abs Ring Type: Toothed
Abs Tone Ring Included: Yes
Axle Nut Head Type: Hex
Axle Nut Height (in): 4/5
Axle Nut Height (mm): 20
Axle Nut Hex Size (in): 1 1/4
Axle Nut Hex Size (mm): 31.8
Axle Nut Included: Yes
Axle Nut Length (in): 1 1/3
Axle Nut Length (mm): 34.4
Axle Nut Locking Type: Stake
Axle Nut Thread Size: M22*1.5
Boot Material: Neoprene
Inboard Joint Type: Male
Inboard Shaft Connection Style: Male
New Or Remanufactured: New
Number Of Inboard Splines: 20
Number Of Outboard Splines: 26
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Conventional
Overall Compressed Length (in): 36.34
Overall Compressed Length (mm): 923
Interchange Part Number: 40751022 4341001130 4341001131 4341002760 4341002A00 4341002A01
Replaces Part Numbers: 4341002A02 4341002A03 4947N 5003N 60-5288 80-6175 AX-36229 MP5288
Replacement Part Numbers: TO-2236A TO-2238A TO-8-8678A TO-8233
Brand Label: CV Axle Shaft
Important Information:
HOW TO CHECK VEHICLE FITMENT:
Please use eBay Vehicle Compatibility Guide to determine fitment to your vehicle.
RETURN POLICY:
We offer a 30 day return policy on new and unused items in original packaging. Please see the Returns section of the listing for full return policy information.
Damaged items can only be exchanged once the original shipment is received back.
SHIPPING INFORMATION:
This ships via standard shipping.
We ship from multiple warehouses and will always ship from the closest warehouse to your location.
International orders are handled exclusively through the eBay Global Shipping Program.
Fitment Chart:
| Years | Make | Model | Submodel | Body Type | Drive Type | Transmission | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2018-2019 | Toyota | Corolla | L | Sedan | L | ||||
| 2018-2019 | Toyota | Corolla | LE | Sedan | L | ||||
| 2018-2019 | Toyota | Corolla | LE Eco | Sedan | L | ||||
| 2018-2019 | Toyota | Corolla | SE | Sedan | L | ||||
| 2018-2019 | Toyota | Corolla | XLE | Sedan | L | ||||
| 2018-2019 | Toyota | Corolla | XSE | Sedan | L | ||||
| 2014-2017 | Toyota | Corolla | FWD | Manual | L | ||||
| 2014-2016 | Toyota | Corolla | FWD | Automatic | L | ||||
| 2014-2017 | Toyota | Corolla | FWD | Automatic CVT | L | ||||
| 2013 | Toyota | Corolla | FWD | L | |||||
| 2009-2010 | Pontiac | Vibe | 1.8L | L4 | |||||
| 2009-2012 | Toyota | Corolla | L | exc. XRS | |||||
| 2009-2014 | Toyota | Matrix | FWD | 1.8L | L4 |
Specifications:
Part Category: CV Axle Shaft
Brand: TrakMotive
Manufacturer Part Number: TO-8233
Vehicle Position: Front Passenger Side
Placement on Vehicle: Front Right
Label: CV Axle Shaft
Product Type: Factory Replacement
Type: CV Axle Shaft
Number of Pieces: 1
Abs Ring Tooth Count: 48
Abs Ring Type: Toothed
Abs Tone Ring Included: Yes
Axle Nut Head Type: Hex
Axle Nut Height (in): 4/5
Axle Nut Height (mm): 20
Axle Nut Hex Size (in): 1 1/4
Axle Nut Hex Size (mm): 31.8
Axle Nut Included: Yes
Axle Nut Length (in): 1 1/3
Axle Nut Length (mm): 34.4
Axle Nut Locking Type: Stake
Axle Nut Thread Size: M22*1.5
Boot Material: Neoprene
Inboard Joint Type: Male
Inboard Shaft Connection Style: Male
New Or Remanufactured: New
Number Of Inboard Splines: 20
Number Of Outboard Splines: 26
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Conventional
Overall Compressed Length (in): 36.34
Overall Compressed Length (mm): 923
Interchange Part Number: 40751022 4341001130 4341001131 4341002760 4341002A00 4341002A01
Replaces Part Numbers: 4341002A02 4341002A03 4947N 5003N 60-5288 80-6175 AX-36229 MP5288
Replacement Part Numbers: TO-2236A TO-2238A TO-8-8678A TO-8233
Brand Label: CV Axle Shaft
