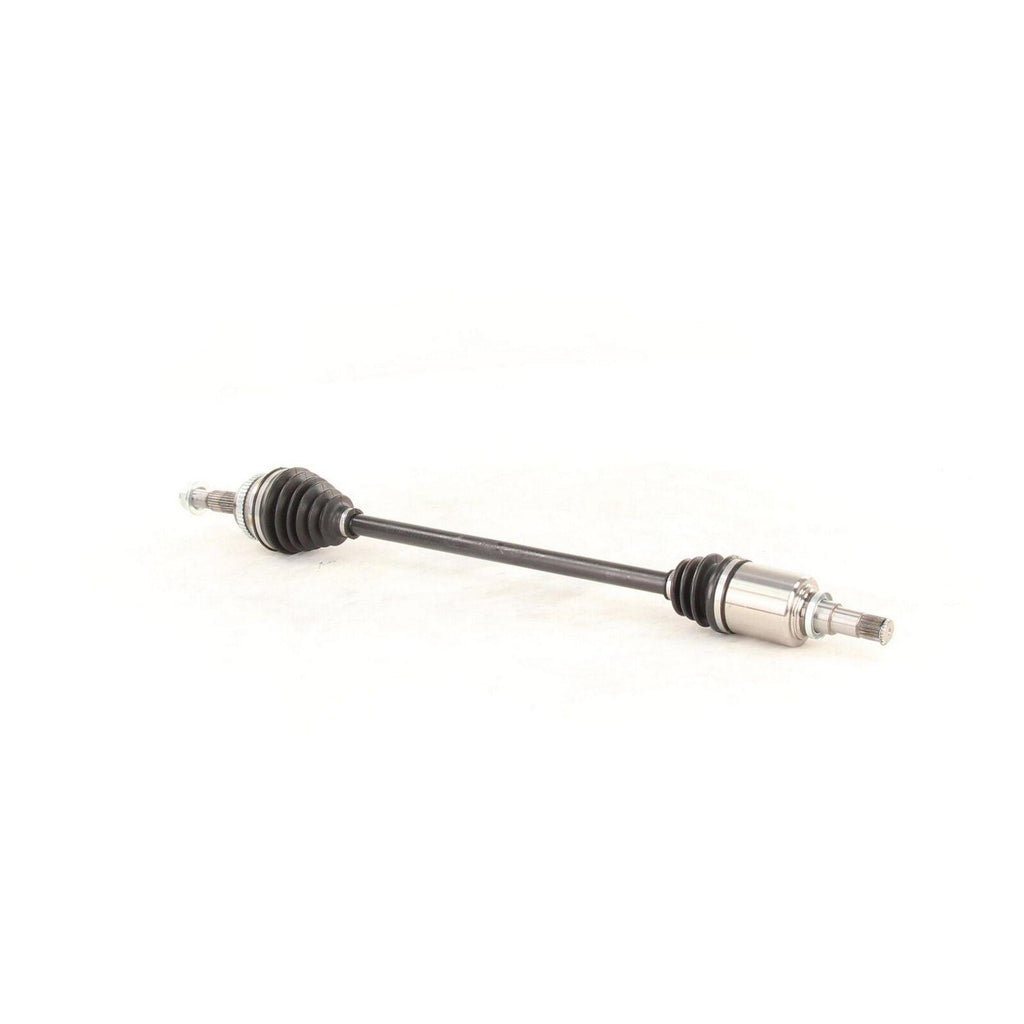

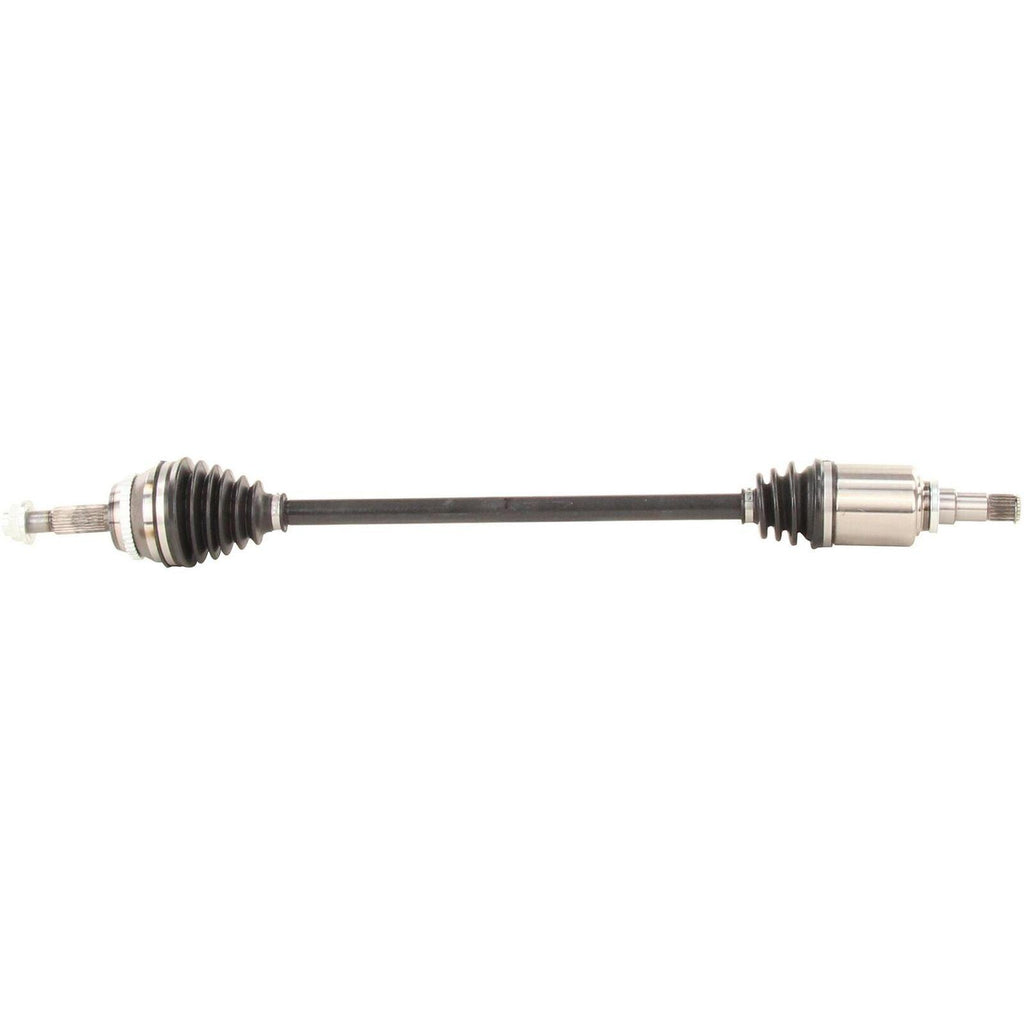

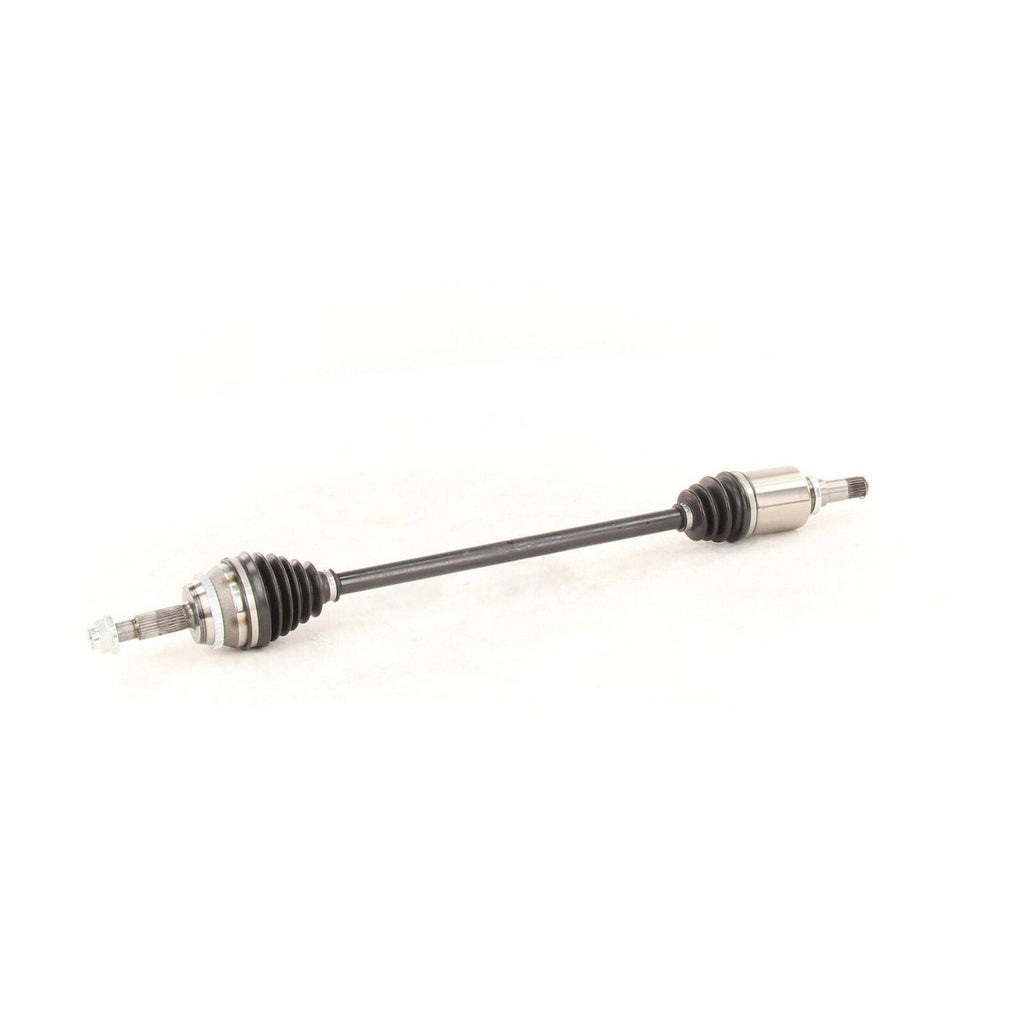

Trakmotive CV Axle Shaft for Vibe, Corolla, Matrix TO-8092
Regular price $0.00 $98.65
eBay TrakMotive CV Axle Shaft for Vibe, Corolla, Matrix TO-8092 Fitment Chart: Years Make Model Submodel Drive Type Transmission 2004-2008 Toyota Matrix...
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
TrakMotive CV Axle Shaft for Vibe, Corolla, Matrix TO-8092
Specifications:
Part Category: CV Axle Shaft
Brand: TrakMotive
Manufacturer Part Number: TO-8092
Vehicle Position: Front Passenger Side
Placement on Vehicle: Front Right
Label: CV Axle Shaft
Product Type: Factory Replacement
Type: CV Axle Shaft
Number of Pieces: 1
Abs Ring Tooth Count: 48
Abs Ring Type: Toothed
Abs Tone Ring Included: Yes
Axle Nut Head Type: Hex
Axle Nut Height (in): 1
Axle Nut Height (mm): 24
Axle Nut Hex Size (in): 1 1/4
Axle Nut Hex Size (mm): 32
Axle Nut Included: Yes
Axle Nut Length (in): 1 1/2
Axle Nut Length (mm): 37
Axle Nut Locking Type: Stake
Axle Nut Thread Size: M22*1.5
Boot Material: Neoprene
Inboard Joint Type: Male
Inboard Shaft Connection Style: Male
New Or Remanufactured: New
Number Of Inboard Splines: 23
Number Of Outboard Splines: 26
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Conventional
Overall Compressed Length (in): 35.93
Overall Compressed Length (mm): 912.7
Interchange Part Number: 1220 40751084 411706 4282N 4341002350 60-5219 60-5220 652429
Replaces Part Numbers: 66-5220 7036119 80-5971 80-6214 801706 88969953 AX-3611 AX-36119
Replacement Part Numbers: CV2394 CV9057 NCV10547 NCV69584 PO10505 TO-2006A TO-8-8638A
Replace Part Numbers: TO-8092
Brand Label: CV Axle Shaft
Important Information:
HOW TO CHECK VEHICLE FITMENT:
Please use eBay Vehicle Compatibility Guide to determine fitment to your vehicle.
RETURN POLICY:
We offer a 30 day return policy on new and unused items in original packaging. Please see the Returns section of the listing for full return policy information.
Damaged items can only be exchanged once the original shipment is received back.
SHIPPING INFORMATION:
This ships via standard shipping.
We ship from multiple warehouses and will always ship from the closest warehouse to your location.
International orders are handled exclusively through the eBay Global Shipping Program.
Fitment Chart:
| Years | Make | Model | Submodel | Drive Type | Transmission |
|---|---|---|---|---|---|
| 2004-2008 | Toyota | Matrix | FWD | Automatic | |
| 2003-2008 | Pontiac | Vibe | FWD | Automatic | |
| 2003-2008 | Toyota | Corolla | Automatic | ||
| 2003 | Toyota | Matrix | Base | FWD | Automatic |
| 2003 | Toyota | Matrix | XR | FWD | Automatic |
