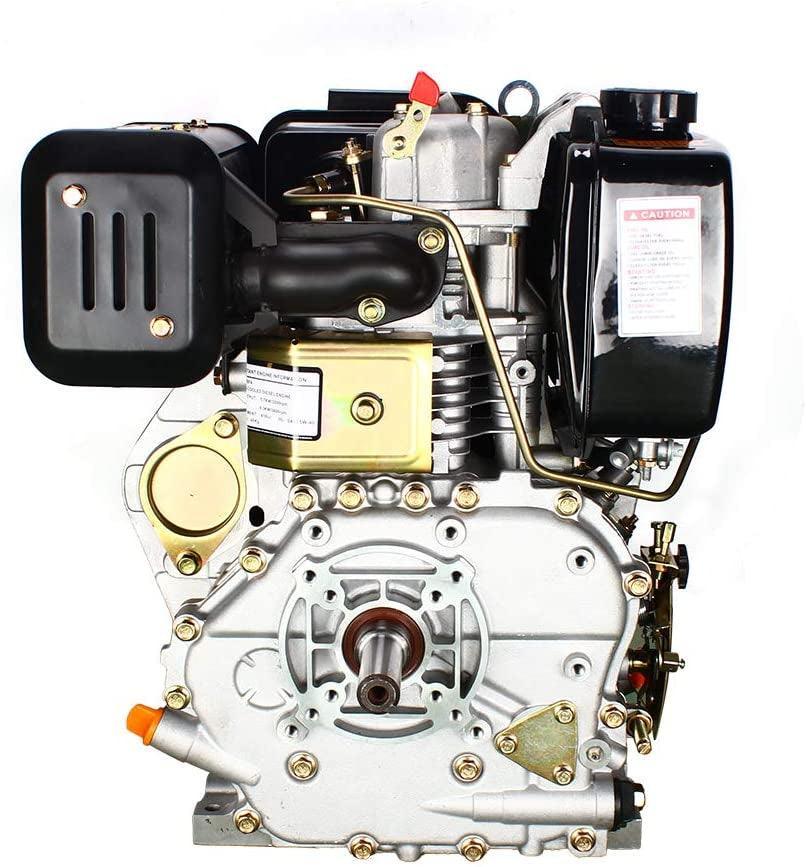

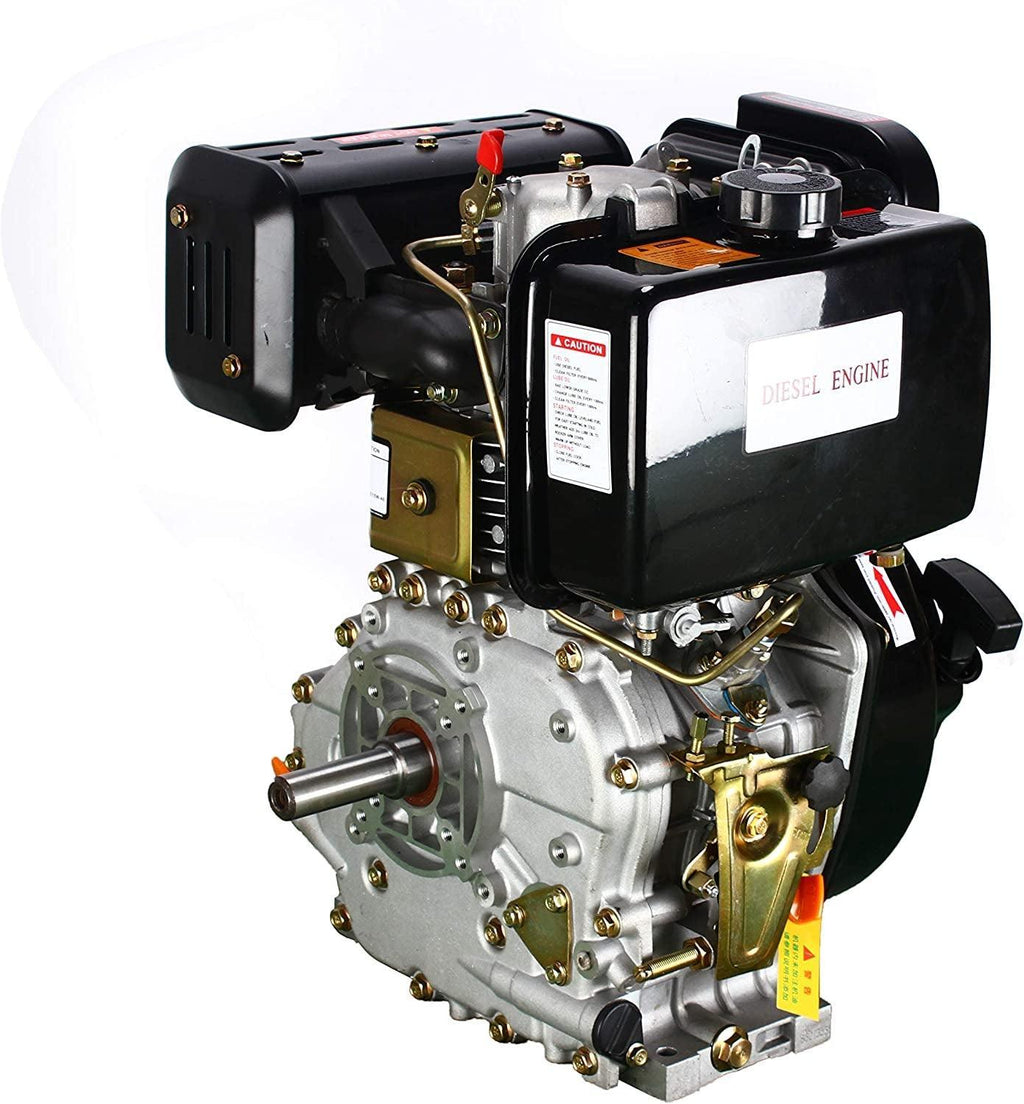

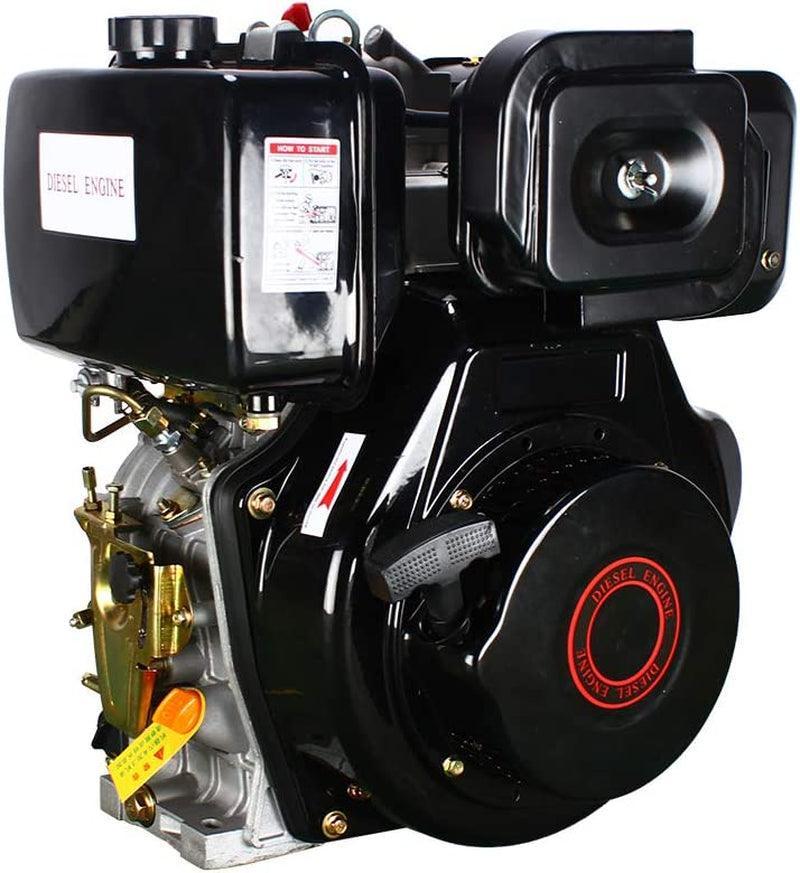

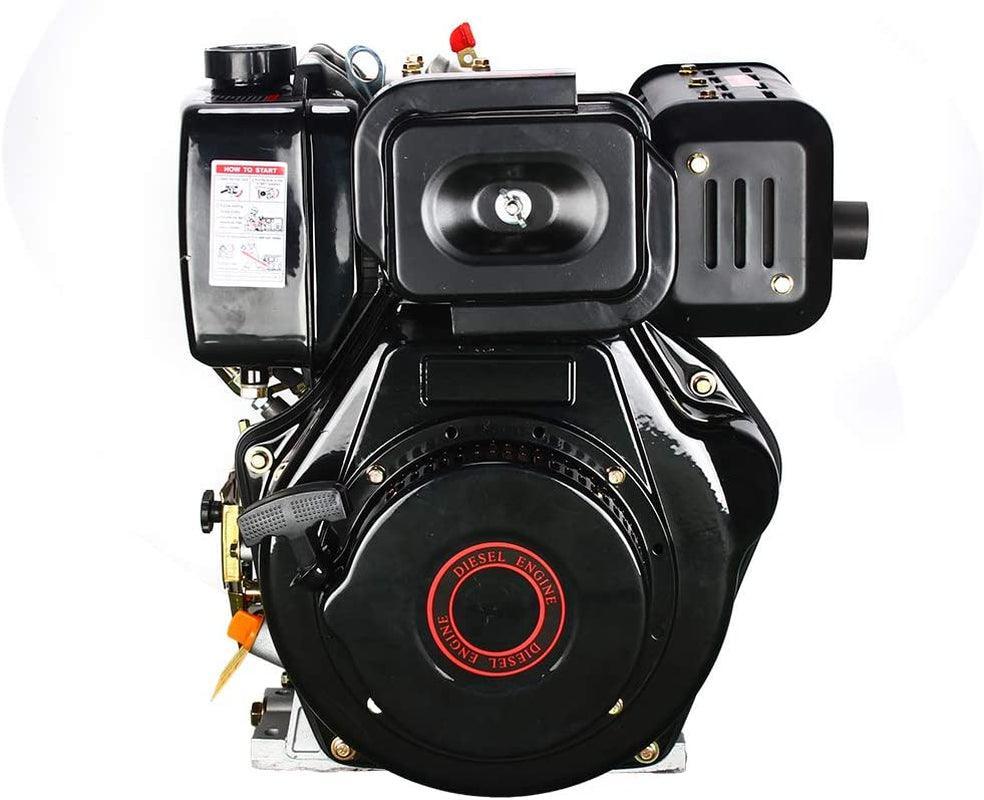

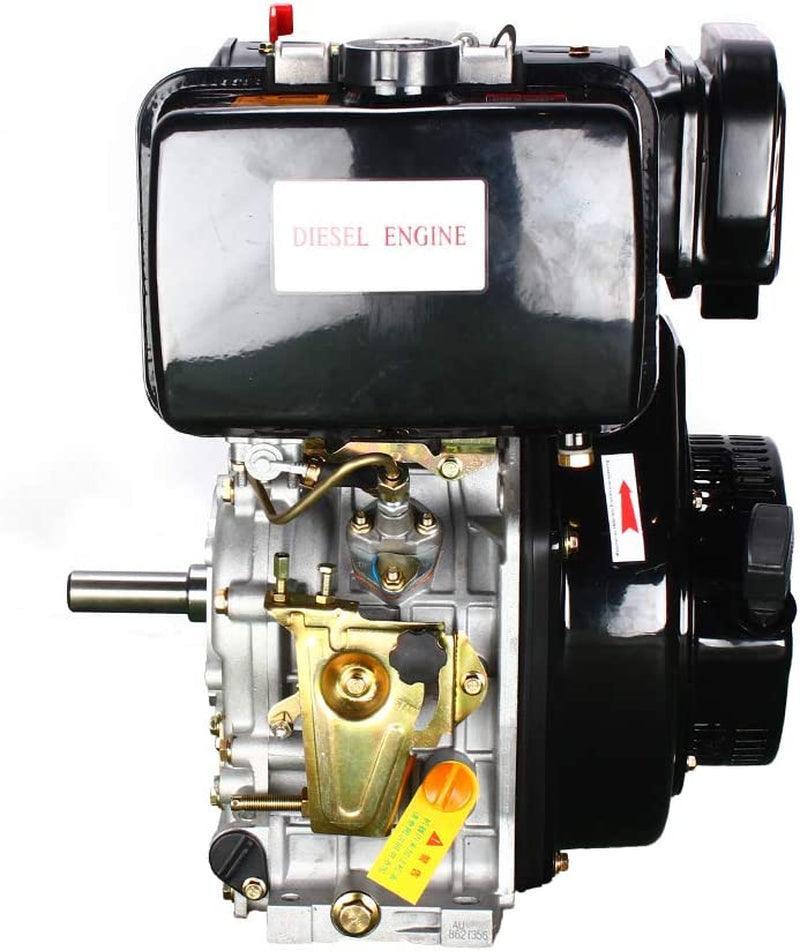

186F 9HP Diesel Engine 4 Stroke Single Cylinder 406CC Forced Air Cooling Diesel Engine for Agricultural Machinery
Regular price $0.00 $934.25
ćPROFESSIONAL DIESEL ENGINEć4-stroke Air- Cooled Diesel Engine.Through advanced software analysis and optimization design, the reliability of diesel engine in structure and cooling...
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
- ćPROFESSIONAL DIESEL ENGINEć4-stroke Air- Cooled Diesel Engine.Through advanced software analysis and optimization design, the reliability of diesel engine in structure and cooling is ensured. Optimize fuel system and intake and exhaust system to save energy and fuel.
- ćDIESEL ENGINE SPECIFICATIONSćModelļ¼186F Š¢ŃŃŠµļ¼Single-cylinder, vertical, 4-stroke air- cooled diesel engine Combustion systemļ¼Direct injection Bore*stroke(mm)ļ¼86x70mm Displacement capacity(cc)ļ¼ 406cc
- ćDIESEL ENGINE PARAMETERćOil System: Pressure and Splash Engine Cooling Type: Forced Air Cooling
- ćSHAFT PARAMETER ć Shaft Type: Keyed - Straight Shaft Diameter: 1" Diameter, 1/4" Keyway Shaft Length: 72.2mm (2-5/6" Length) Shaft I.D. Thread Size: 7/16-20UFN-2B, 20mm depth
- ćWIDE APPLICATIONćIt is widely used in small agricultural machinery, such as micro-tiller, pastoral management machine, irrigation and drainage machine, generator set, small transport vehicle, small walking tractor and other fields.
Specifications:
Modelļ¼186F
Combustion systemļ¼Direct injection
Bore*stroke(mm)ļ¼86x70mm
Displacement capacity(cc)ļ¼ 406cc
Speed(rpm)ļ¼3600 rpm
Max.output(kw): 6.3
Fuelļ¼0#diesel oil
Fuel oil tank volume(L)ļ¼5.5 L
Fuel oil consumption rate(g/kw.h)ļ¼ā¤280

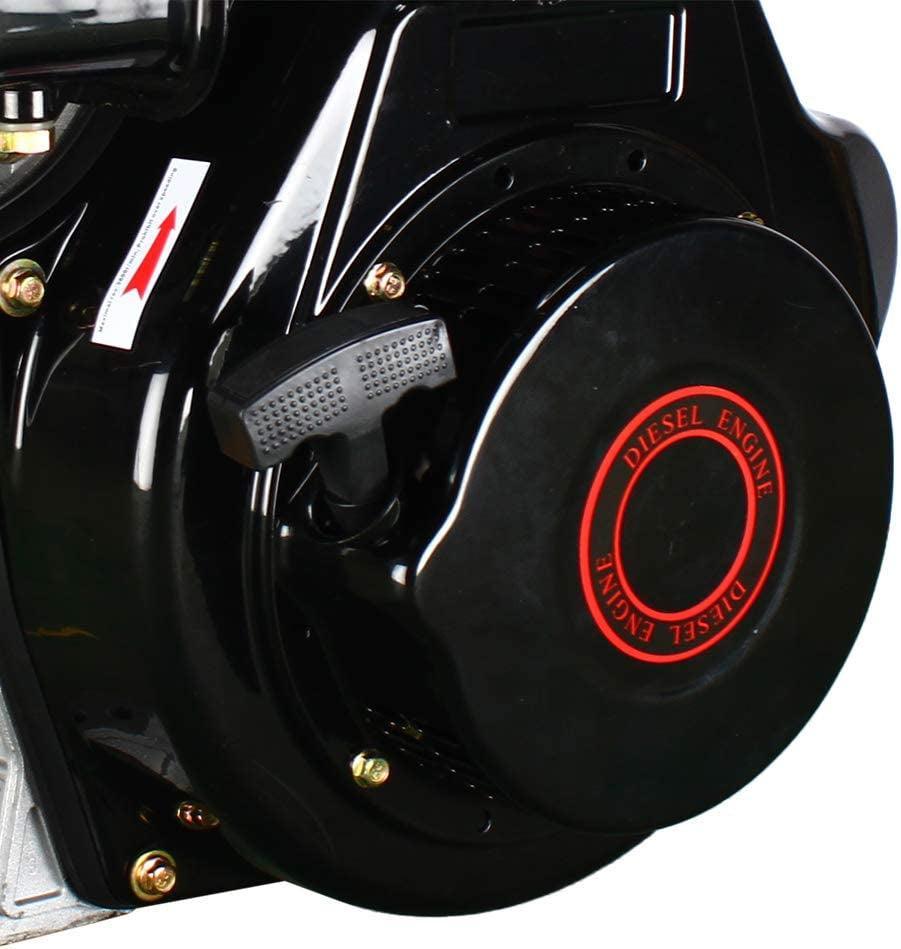

Starting systemļ¼Recoil

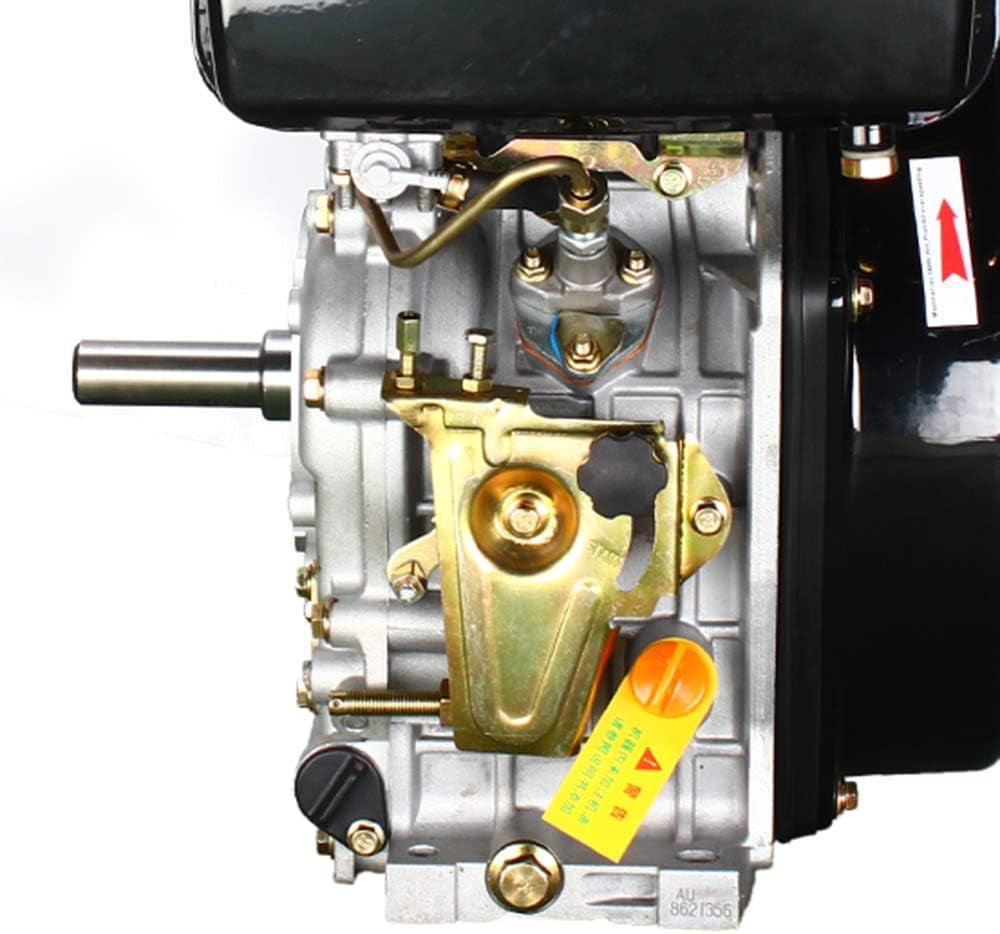

Shaft Type: Keyed - Straight
Shaft Diameter: 1" Diameter, 1/4" Keyway
Shaft Length: 72.2mm (2-5/6" Length)
Shaft I.D. Thread Size: 7/16-20UFN-2B, 20mm depth
Bolt Pattern: 4 Bolt
Oil System: Pressure and Splash
Engine Cooling Type: Forced Air Cooling
