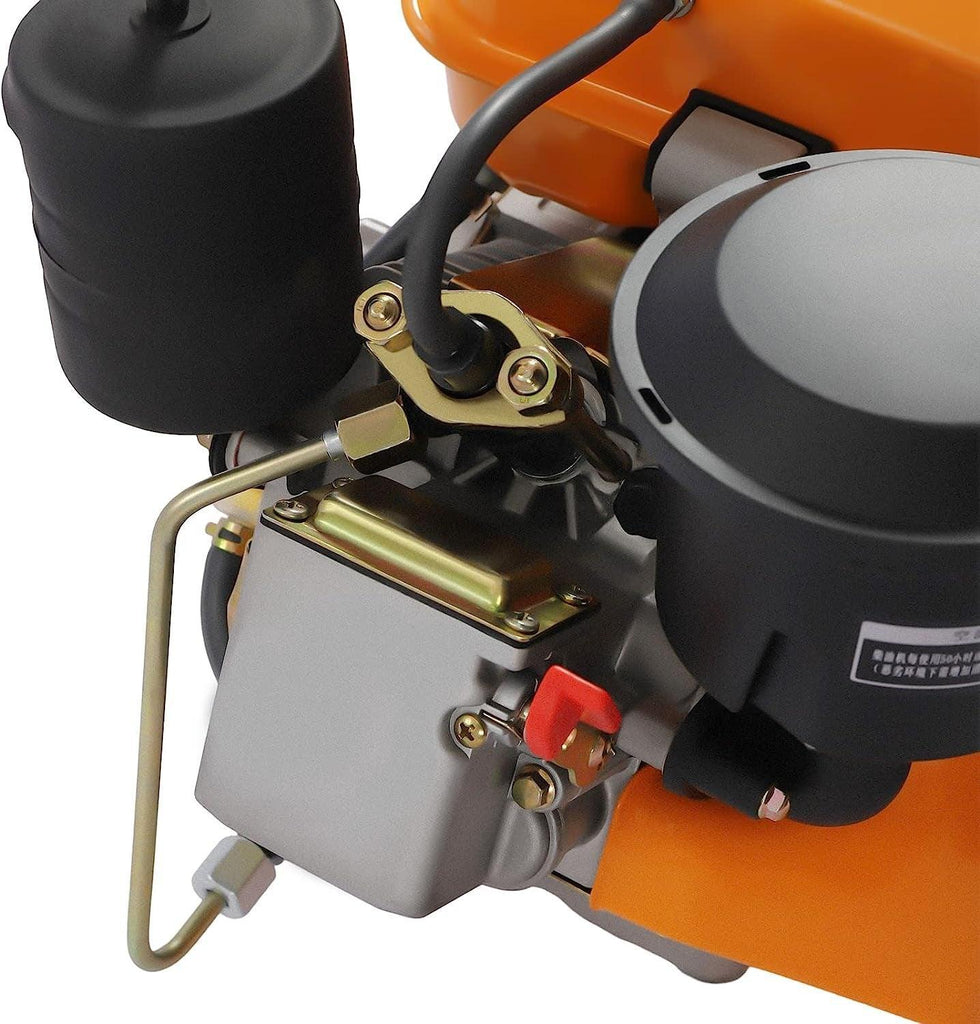

196CC Diesel Engine 2.2KW Single Cylinder Diesel Motor 3000 RPM Air Cooling Vertical Engine Manual Start for Agricultural Production (Orange)
Regular price $0.00 $400.60
HIGH-QUALITY MATERIALS AND EXQUISITE CRAFTSMANSHIP - This diesel engine is made of high-quality materials, compact in structure, small in size and light...
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
- HIGH-QUALITY MATERIALS AND EXQUISITE CRAFTSMANSHIP - This diesel engine is made of high-quality materials, compact in structure, small in size and light in weight. The fuel tank is thickened, the capacity is increased, the high-quality welding process, and the special painting process are not easy to leak oil and not easy to paint off.
- ECONOMICAL AND LONG-LASTING LIFE -The four-stroke diesel engine optimizes the fuel system and intake and exhaust system to save energy and fuel; the fuel atomization is good, the fuel consumption is low, the fuel injection is more punctual, and the service life is long. Compared with gasoline engines, it is more economical and lighter than vertical diesel engines.
- GOOD HEAT DISSIPATION PERFORMANCE - Reinforced thickened alloy box, fast heat dissipation, low oil temperature and light weight. Through advanced software analysis and optimized design, the reliability of the diesel engine in terms of structure and cooling is guaranteed.
- WIDE APPLICATION RANGE -196CC diesel engine is widely used in pasture management machinery, irrigation and drainage machinery, generator sets, small transport vehicles, small walking tractors and other small agricultural machinery fields; it perfectly meets your various work needs.
- MAIN PARAMETERS - Model: 168F Shell material: Aluminum Displacement: 196CC Speed: 3000 RPM Maximum output: 2.2KW Number of cylinders: Single Cylinder Engine cooling method: Air Cooling Start method: Manual Start Starting system: Hand Recoil Ignition method: Compression Ignition
Features:
1. Optimize the fuel system and intake and exhaust systems to save energy and fuel.
2. Compact structure, small size and light weight.
3. Compared with gasoline engines, it is more economical and lighter than horizontal axis diesel engines.
4. Through advanced software analysis and optimization design, the reliability of the diesel engine in terms of structure and cooling is ensured.
Specifications:
Type: Horizontal Axis 4-Stroke Air-Cooled Diesel Engine
Model: 168F
Shell material: Aluminum
Displacement: 196CC
Speed: 3000 RPM
Maximum output: 2.2KW
Number of cylinders: Single Cylinder
Engine cooling method: Air Cooling
Start method: Manual Start
Starting system: Hand Recoil
Ignition method: Compression Ignition
Compression ratio: 22:1
Fuel: 0 diesel
Fuel consumption rate: 12 fl oz / kw.h
Fuel tank capacity: 100 fl oz
Engine oil capacity: 24 fl oz
Net torque: 8Nm / 2880rpm
Shaft type: Flat key
Oil system: Splash
Bore size: 2.7'' x 2.1''
Keyway: 0.2'' / 5mm
Shaft length: 0.8'' x 2''
Shaft diameter: 0.8''
Shaft inner diameter thread size: M8*0.05''

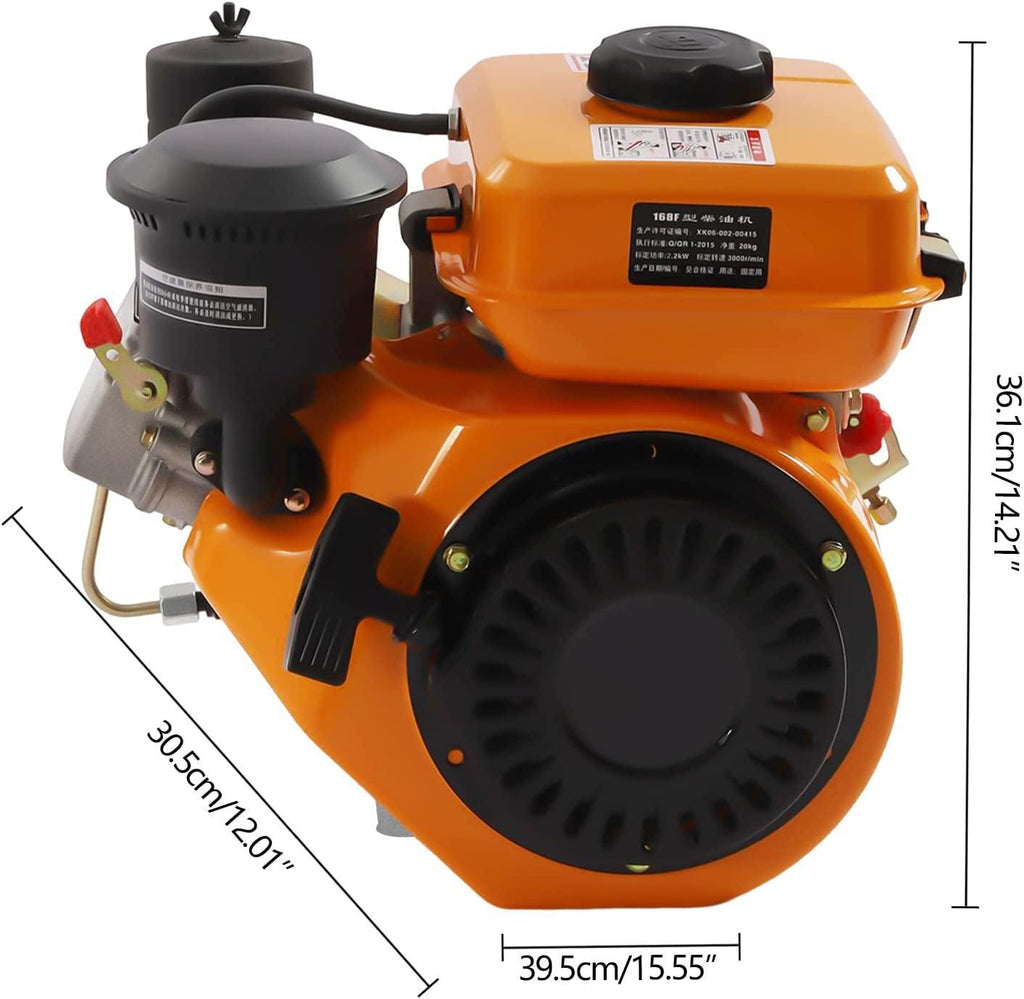

Engine size: 15.5'' x 12'' x 14''
Engine weight: 44 lb
Product size: 16'' x 14'' x 15''
Shipping weight: 46 lbs
Package includes:
1 x Diesel Engine
