30-4853 Pro Series Dyno-Shaft On-Vehicle Dynamometer

30-4853 Pro Series Dyno-Shaft On-Vehicle Dynamometer

Availability: Unavailable

Product type:

Vendor: greatparts

Regular price $0.00 $2,002.32

Measures Torque and RPM at the driveline to deliver real Horsepower and Torque numbers Does not skew readings like accelerometer-based units. Real...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Guaranteed safe checkout:

Measures Torque and RPM at the driveline to deliver real Horsepower and Torque numbers Does not skew readings like accelerometer-based units. Real Data. No assumptions!
Eliminates guesswork when troubleshooting or making changes at the track; laboratory-grade strain gauge requires no slip rings or batteries and is maintenance free

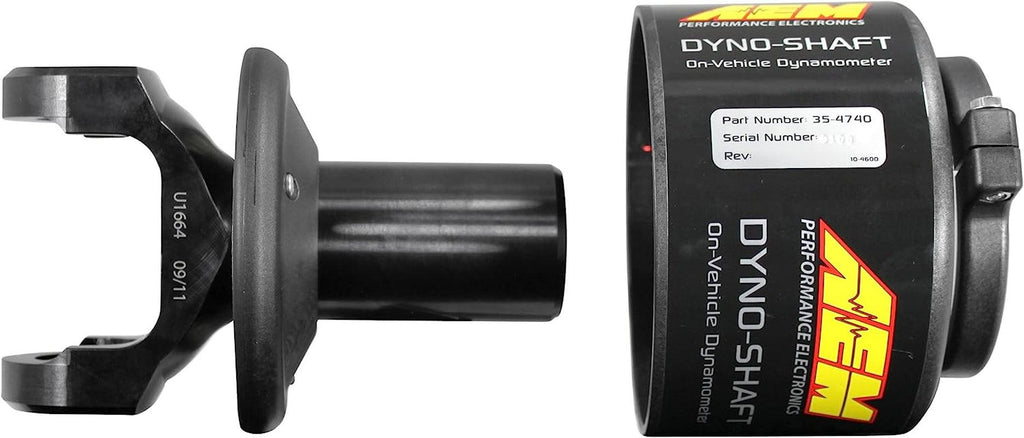

Create dyno charts which can be saved, printed, or shared electronically via AEMnet; Pro slip yoke is CNC machined from Chrome Moly to ensure balance and concentricity
Pro slip yoke is case hardened for applications with roller bearing extension housings Pro slip yoke undergoes a Laboratory-Grade calibration process
Can be used with the AEM AQ-1 data logger, AEM Series 2 EMS, and some third party CAN-enabled engine management systems, data loggers and displays

The Dyno-Shaft On-Vehicle Dynamometer Pro Series is a true on-vehicle dynamometer system that measures Torque and RPM while you drive to deliver Horsepower numbers in real time while you drive. It is a real dyno for your car that measures Horsepower, Torque and RPM as accurately as the most respected dynamometers, with the advantage of being able to gather this data in real-world conditions. Eliminate Guesswork - Know for sure if slower times are due to a loss of power, vehicle set up or driver error. Engine tuning - Stop trying to approximate real world test conditions and start testing in the real world. Finally you can test with actual intake air conditions, actual vehicle loading and the hundred other things that make a real vehicle behave very different than it does when on a dyno. In other words, it allows you to measure a vehicle’s power in real world conditions. Chassis Set Up - Know when the tires will break loose. Ideal for optimizing drag launches and determining the longitudinal forces your tires can handle in road racing. Torque Converter and Clutch development - Finally know what your Torque converter or clutch is doing while you are making a pass. Dyno It All - The Dyno-Shaft accurately reads in all conditions including steady state, uphill or downhill, even while coasting down. It can even measure the effectiveness of an exhaust brake on diesel applications. Recording, Reading And Outputting Dyno-Shaft Data. At its core, the Dyno-Shaft Pro Series is a sensor that measures Torque and RPM and uses this data to output a vehicle’s Horsepower and Torque in real time. You will need a ‘host device’ to record, view and output data from the Dyno-Shaft. The following devices are capable of reading and logging data from the Dyno-Shaft via AEMnet.
