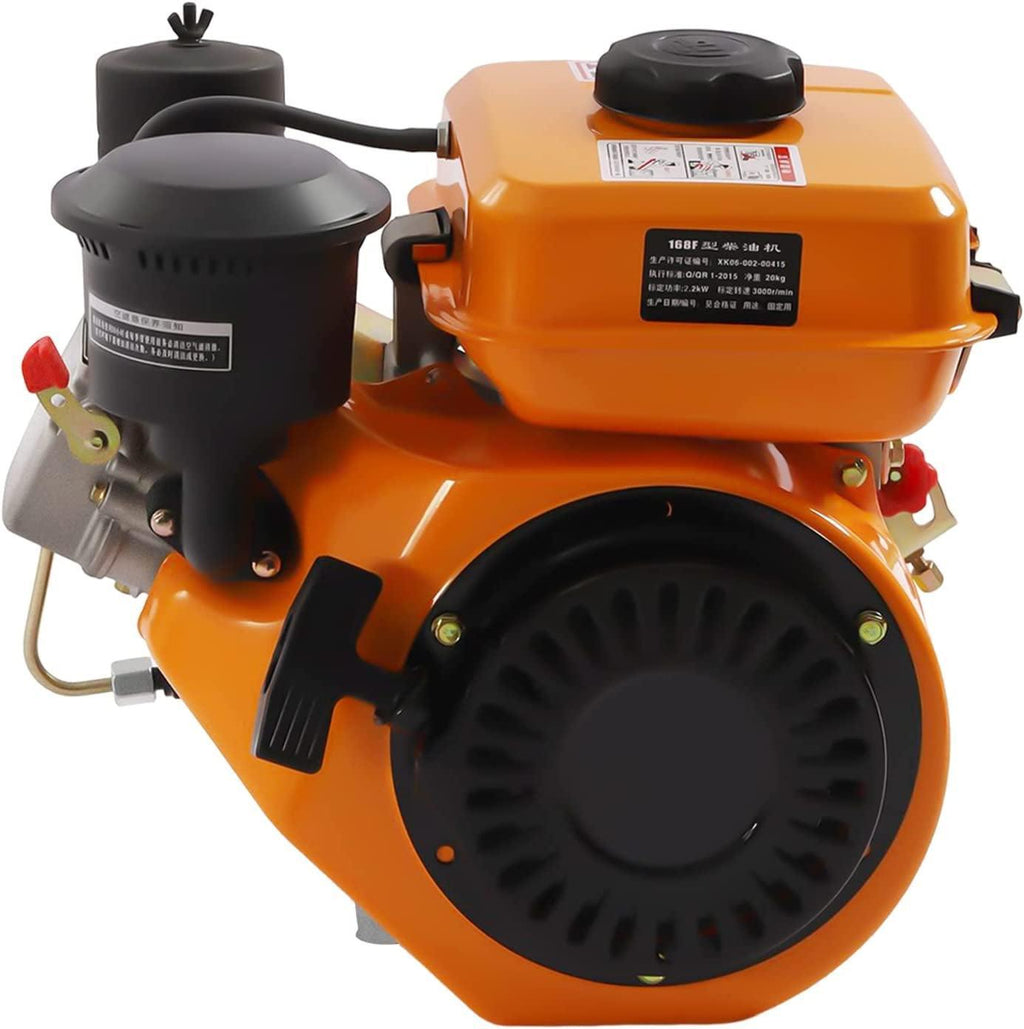

3000RPM 3HP Diesel Engine, 196CC 4 Stroke Single Cylinder Air Cooling Diesel Engine Manual Recoil Start System Diesel Motor
Regular price $0.00 $405.04
[Main parameters] Engine: four-stroke air-cooled diesel engine; engine displacement. 196CC; speed: 3000rpm; maximum output power: 2.42KW; cooling mode: air-cooled; starting mode: recoil...
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
- [Main parameters] Engine: four-stroke air-cooled diesel engine; engine displacement. 196CC; speed: 3000rpm; maximum output power: 2.42KW; cooling mode: air-cooled; starting mode: recoil type manual starting.
- [Aluminum alloy material] The diesel engine is made of high quality aluminum alloy, which is durable. Therefore, you can use it for a long time for cutting machine, cultivator, small transport vehicle, etc.
- [Good heat dissipation] The diesel engine is equipped with forced air-cooling system and heat dissipation holes, which has good heat dissipation effect and can reduce the motor temperature in time, prolong the life of the motor and reduce the safety hazards.
- [Excellent fuel system] The diesel engine adopts a socket flow diesel system and single-valve fuel injection. It runs stably, emits less harmful gases, and causes less harm to the environment and the human body.
- [Large capacity fuel tank] 3L large capacity fuel tank, large fuel tank volume can support you to work for a long time without frequent refueling, which helps to improve your working efficiency.
Ā Details
Air Filter: The air filter with a paper core inside is easy to maintain and disassemble, which can purify the air and make filtration more thorough.
Camshaft: The camshaft is made of steel, which makes the engine work stably and can effectively control the opening and closing of the valve.
Pressure Relief Cover: Made of aluminum, the pressure relief cover can help you start the engine more easily and make the product run more stably.
Base: The base of the product is very solid, which can make the machine more stable and not easy to shake during operation.
Specification
Model: 168F
Type: Singer-Cylinder, 4-stroke Diesel Engineļ¼Oblique horizontal Engine
Color: Orange+Black
Material: Aluminum Alloy, Steel, Aluminum
Surface Treatment: Shot Blasting, Color Galvanizing, and Plastic Spraying
Power Source: Diesel-powered
Engine Cooling Type: Air Cooling
Fuel Type: 0#(Summer), -10#(Winter) Diesel Oil
Displacement: 196CC
Rotation Direction: Anti-clockwise
Lubrication Way: Splash Lubrication
Lube Capacity: 0.7L/29.59oz
Lube Brand: SAE10W30 (Above CC Grade)
Rated Output Power: 2.2kw(3HP)
Max Output Power: 2.42kw(3.3HP)
Rotational Speed: 3000rpm
Load Speed: 2800rpm
Fuel Tank Capacity: 3L/126.8oz
Fuel Consumption Rate: ā¤280g/ kw. h
Compression Ratio: 22:1
BoreĆStroke: 68Ć54mm/2.68*2.13inch
Starter System: Recoil Hand Start
Net Weight: 21.6kg/ 47.62lbs
Gross Weight: 27kg/ 59.52lbs

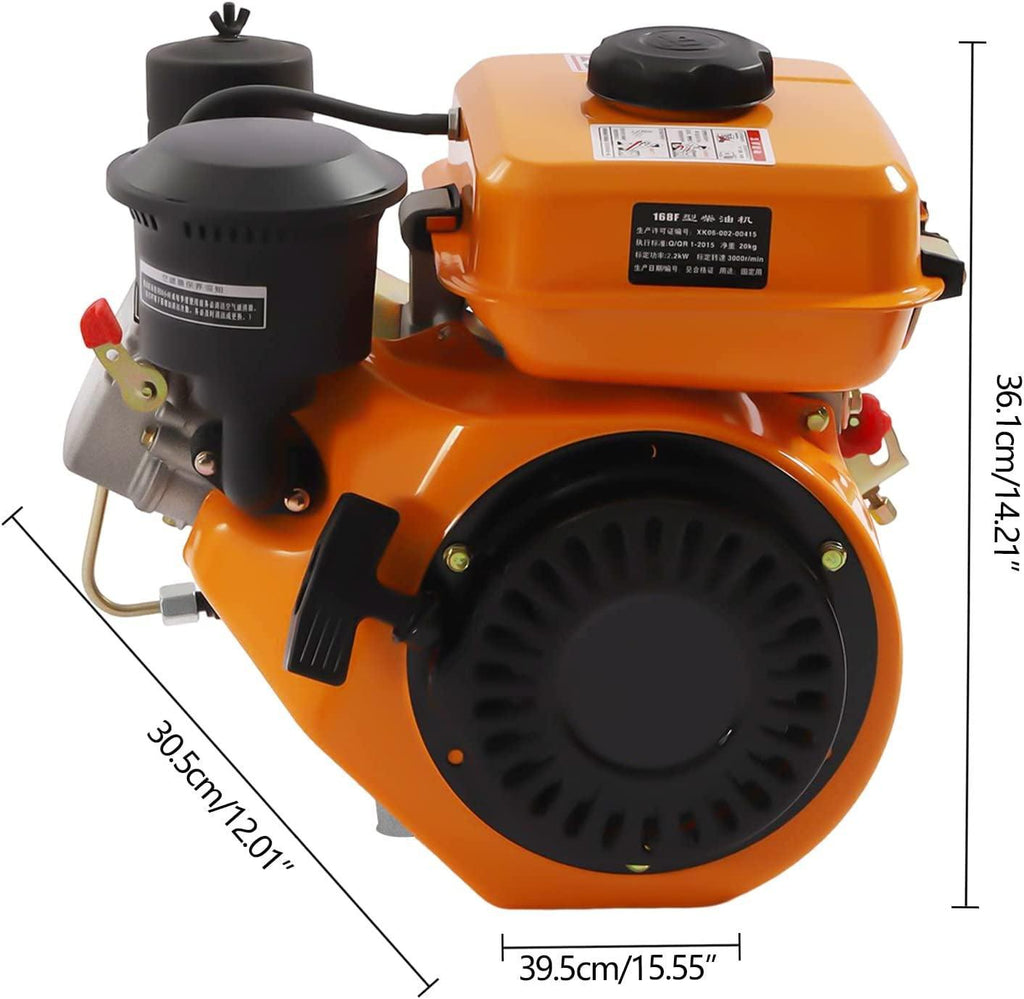

Product Size: 36.1*39.5*30.5cm/14.21*15.55*12.01inch
Package Size: 42.5*38.5*41cm/16.73*15.16*16.14inch
Package Included
1* Diesel Engine
1* English Manual
