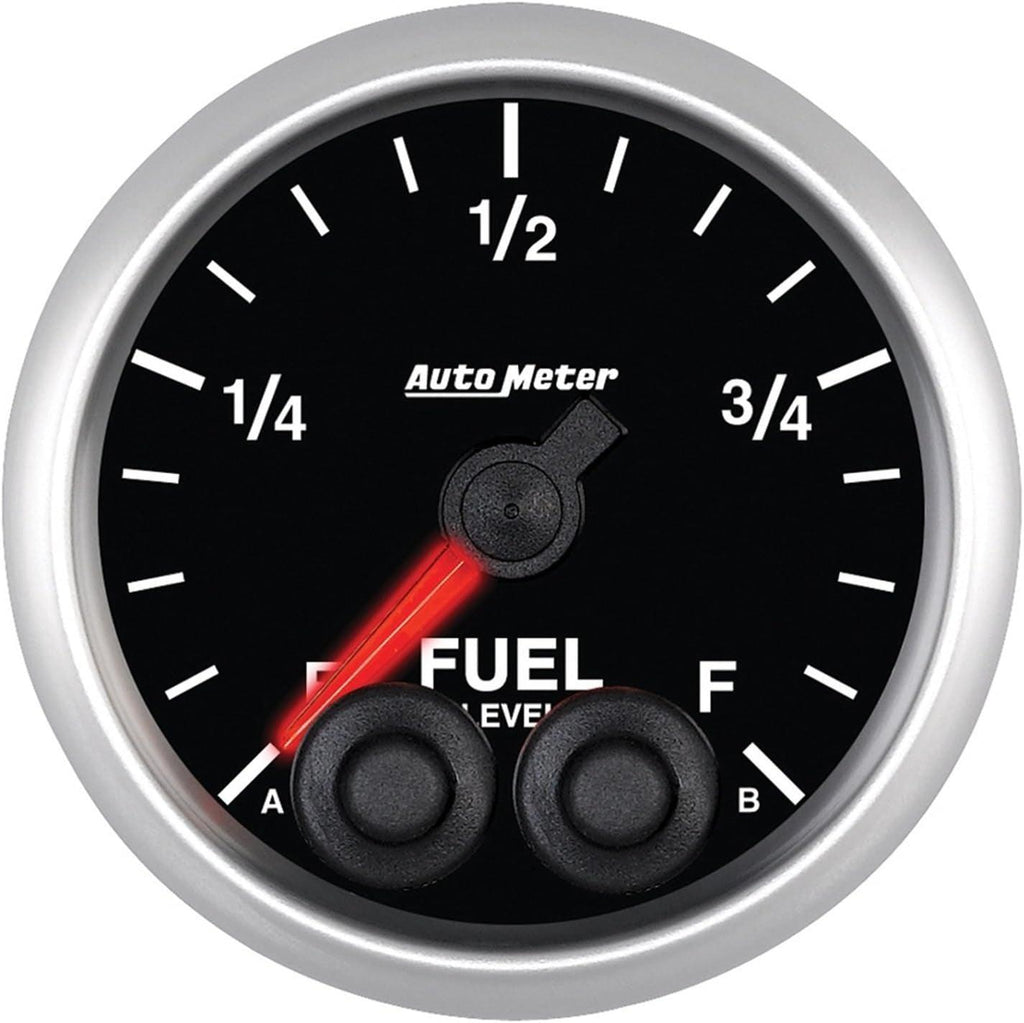

5609 Elite 2-1/16" Programmable Fuel Level Gauge

Availability: Unavailable

Product type:

Regular price $0.00 $287.93

7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions Built-in...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Guaranteed safe checkout:

7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
User definable resistance setting programmable anywhere between 0-280 ohms
Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation

Fuel GaugeElite Series Programmable Fuel Level GaugeElite Series Programmable Fuel Level Gauge; Black Dial Face; Fluorescent Red Pointer; 7 User Selectable Colors LED Lighting; Digital Stepper Motor; Programmable 0-280 Ohms;SPECIFICATIONS:Analog Or Digital: AnalogGauge Type: Fuel LevelBezel Color: Brushed AluminumBezel Style: Super BezelBlock Adapter Included: NoBulb and Socket Number: 3220Bulb Type: LEDDial (Face Color): BlackElectric Or Mechanical: ElectricFuel Line Adapter Included: NoGauge Adapter Included: NoGauge Size (in.): 2.0625Gauge Size (mm): 52.4Illuminated: YesLight Covers Number: 3244/321FEATURES:7 User-Selectable Lighting ColorsCustom Programmable Activation And Deactivation PointsSet Custom High And Low Point AlertsUser Definable Resistance Between 0-280 OhmsIncl. 20 ft. Wiring HarnessIncl. Mounting Hardware/Installation InstructionsDigital Stepper Motor Provides Unmatched AccuracyTraditionally, paring the proper fuel level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our "snapshot" programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.Next generation instruments from Auto Meter combine our NASCAR proven racing movements with our award winning LED lighting technology to offer you the ultimate in Accuracy, Durability, Visibi
