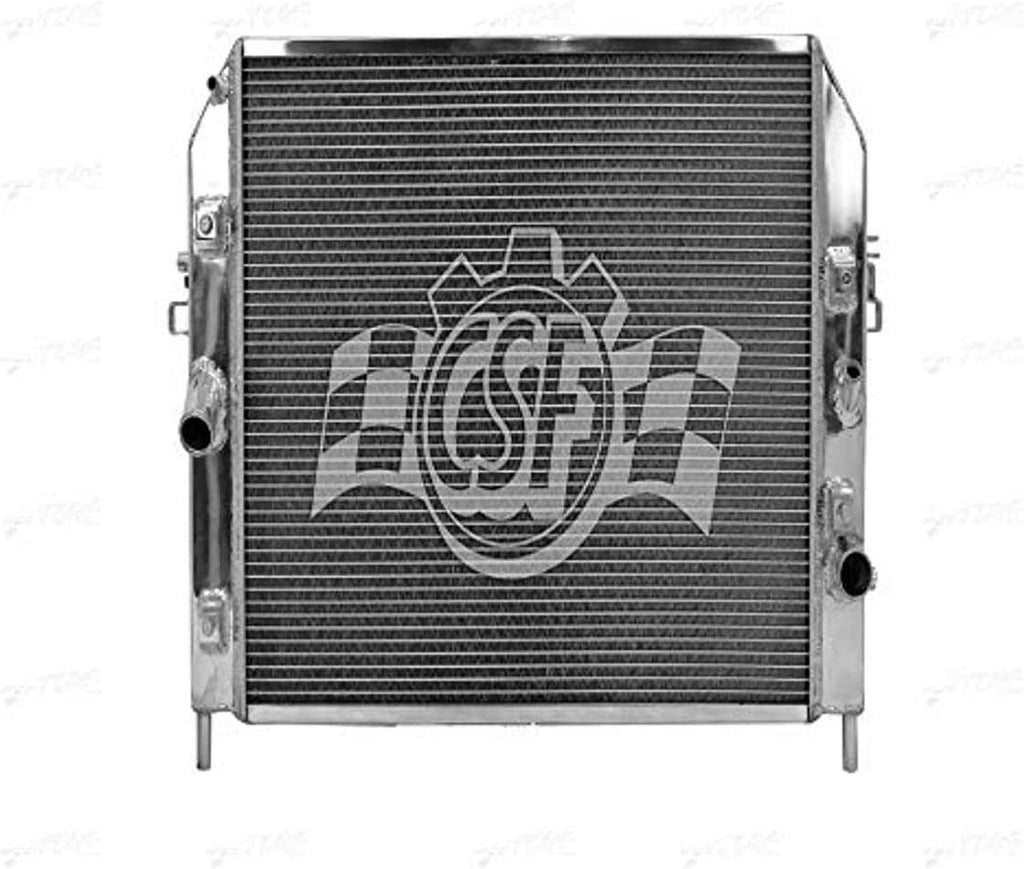

7015 High Performance Radiator
Regular price $0.00 $517.71
Fit Type: Vehicle Specific Package Dimensions: 29.0 L X 7.0 H X 21.0 W (Inches) Made In China Package Weight: 22.5 Pounds...
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
- Fit Type: Vehicle Specific
- Package Dimensions: 29.0 L X 7.0 H X 21.0 W (Inches)
- Made In China
- Package Weight: 22.5 Pounds
HIGH EFFICIENCY CORE manufactures the most advanced and efficient radiator cores in the industry by using innovative tube and fin technologies with industry leading testing methods to maximize airflow and heat dissipation. āB-Tubeā technology ā Unlike a regular oval shape āOā type radiator tube, uses a specially engineered tube in a shape of a āBā. These āB-tubesā are carefully formed and then brazed over the seam to seal. is able to use thinner and lighter aluminum material (better cooling efficiency) because this design is actually stronger than normal āOā shape tubes that are welded. The design (inlet in the middle of tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 5% over regular tubes. You get the efficiency of smaller tubes vs. large tube within the same space criteria. With āB-tubesā you are able to get ādual liquid laminar flow.ā High Efficiency Multi Louvered Fin ā uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab. DESIGN & ENGINEERING aims to lead the cooling systems industry by introducing new technologies and manufacturing processes that allows us to be on the cutting edge of heat transfer innovation. ENGINEERING: CAD/CAM designed using Unigraphics Software OE radial and deep drawn aluminum endtanks āB-Tubeā Technology ā Stronger, most efficient tube in the world Wind tunnel tested for optimal radiator core cooling efficiency āRacing Styleā Aluminum Drain Plug MANUFACTURING: Brazed in CAB Furnace ISO 900/900 certification Military Grade (special clad) aluminum used for tubes, fins, header plates, and side brackets (JIS 3003 spec
