Automatic Transmission Extension Housing Seal Kit for Camaro, Firebird+More 5200

Fitment Chart:

Years Make Model Drive Type Transmission Notes
1998-2000 Isuzu Hombre 4WD Includes Bushings; with New Process 233C Transfer Case; with Part Time 4WD; 2 Speed
1996-1997 Isuzu Hombre Automatic Boot Type; Includes Bushings
1995-1997 Chevrolet Blazer 4WD Includes Bushings; with 27 Splines; with New Process 231C Transfer Case; with Part Time 4WD; 2 Speed
1995-1997 Chevrolet Blazer 4WD Includes Bushings; with 27 Splines; with New Process 233C Transfer Case; with Part Time 4WD; 2 Speed
1995-1997 Chevrolet Blazer AWD Includes Bushings; with 27 Splines; with New Process 233C Transfer Case; with Part Time 4WD; 2 Speed
1995-1997 Chevrolet Blazer AWD Includes Bushings; with 27 Splines; with New Process 231C Transfer Case; with Part Time 4WD; 2 Speed
1995 GMC Jimmy AWD Includes Bushings; with 27 Splines; with New Process 231C Transfer Case; with Part Time 4WD; 2 Speed
1995 GMC Jimmy AWD Includes Bushings; with 27 Splines; with New Process 233C Transfer Case; with Part Time 4WD; 2 Speed
1993-1995 Chevrolet S10 Manual Includes Bushings; with Borg-Warner T5WC Transmission
1993-1995 GMC Sonoma Manual Includes Bushings; with Borg-Warner T5WC Transmission
1992 Cadillac Commercial Chassis Automatic Boot Type; Includes Bushings
1992-1997 Chevrolet S10 4WD Includes Bushings; with 27 Splines; with New Process 233C Transfer Case; with Part Time 4WD; 2 Speed
1992-1994 Chevrolet S10 Blazer 4WD Includes Bushings; with 27 Splines; with New Process 233C Transfer Case; with Part Time 4WD; 2 Speed
1992-1997 GMC Jimmy 4WD Includes Bushings; with 27 Splines; with New Process 231C Transfer Case; with Part Time 4WD; 2 Speed
1992-1997 GMC Jimmy 4WD Includes Bushings; with 27 Splines; with New Process 233C Transfer Case; with Part Time 4WD; 2 Speed
1992-1997 GMC Sonoma 4WD Includes Bushings; with 27 Splines; with New Process 233C Transfer Case; with Part Time 4WD; 2 Speed
1991-1992 Buick Commercial Chassis Automatic Boot Type; Includes Bushings
1991-1992 Buick Roadmaster Automatic Boot Type; Includes Bushings
1991 Cadillac Commercial Chassis Automatic Boot Type; Includes Bushings; with GMC THM700-R4 Transmission
1991-1992 Chevrolet Commercial Chassis Automatic Boot Type; Includes Bushings
1991-1997 Chevrolet S10 4WD Includes Bushings; with 27 Splines; with New Process 231C Transfer Case; with Part Time 4WD; 2 Speed
1991-1994 Chevrolet S10 Blazer 4WD Includes Bushings; with 27 Splines; with New Process 231C Transfer Case; with Part Time 4WD; 2 Speed
1991 GMC S15 Jimmy 4WD Includes Bushings; with 27 Splines; with New Process 231C Transfer Case; with Part Time 4WD; 2 Speed
1991-1997 GMC Sonoma 4WD Includes Bushings; with 27 Splines; with New Process 231C Transfer Case; with Part Time 4WD; 2 Speed
1991-1992 GMC Sonoma Manual Includes Bushings
1990-1992 Cadillac Brougham Automatic Boot Type; Includes Bushings
1989-1990 Chevrolet R1500 Suburban Automatic Boot Type; Includes Bushings
1989 Chevrolet R2500 Automatic Boot Type; Includes Bushings
1989-1990 Chevrolet R2500 Suburban Automatic Boot Type; Includes Bushings
1989-1990 Chevrolet R3500 Automatic Boot Type; Includes Bushings
1989-1990 Chevrolet Tracker Automatic Includes Bushings; with GMC THM180C Transmission
1989-1990 Chevrolet V1500 Suburban Automatic Boot Type; Includes Bushings
1989-1990 Chevrolet V2500 Suburban Automatic Boot Type; Includes Bushings
1989-1990 Chevrolet V3500 Automatic Boot Type; Includes Bushings
1989-1991 Chevrolet V3500 4WD Includes Bushings; with New Process 205 Transfer Case; with Part Time 4WD; 2 Speed
1989-1990 Geo Tracker Automatic Includes Bushings; with GMC THM180C Transmission
1989-1990 GMC Tracker Automatic Includes Bushings; with GMC THM180C Transmission
1989-1990 Oldsmobile Custom Cruiser Automatic Boot Type; Includes Bushings; with GMC THM700-R4 Transmission
1989 Pontiac Safari Automatic Boot Type; Includes Bushings; with GMC THM700-R4 Transmission
1989-1990 Suzuki Sidekick Automatic Includes Bushings; with GMC THM180C Transmission
1988 Buick Electra RWD Automatic Boot Type; Includes Bushings
1988-1990 Chevrolet C1500 Automatic Boot Type; Includes Bushings
1988-1990 Chevrolet C2500 Automatic Boot Type; Includes Bushings
1988-1990 Chevrolet C3500 Automatic Boot Type; Includes Bushings
1988-2002 Chevrolet Camaro Manual Includes Bushings; with Borg-Warner T5WC Transmission
1988-1990 Chevrolet K1500 Automatic Boot Type; Includes Bushings
1988-1990 Chevrolet K2500 Automatic Boot Type; Includes Bushings
1988-1989 Chevrolet K3500 Automatic Boot Type; Includes Bushings
1988-1990 Chevrolet S10 4WD Includes Bushings; with New Process 231C Transfer Case; with Part Time 4WD; 2 Speed
1988-1990 Chevrolet S10 Blazer 4WD Includes Bushings; with New Process 231C Transfer Case; with Part Time 4WD; 2 Speed


Specifications:

Part Category: Automatic Transmission Extension Housing Seal Kit
Brand: National
Manufacturer Part Number: 5200
Vehicle Position: Rear
Placement on Vehicle: Rear
Product Type: Factory Replacement
Type: Automatic Transmission Extension Housing Seal Kit
Number of Pieces: 1
Inside Diameter: 1.502
Inside Diameter: 38.150
Thickness: 0.470
Thickness: 11.940
Outside Diameter: 2.381
Outside Diameter: 60.480
Sealing Material: Nitrile

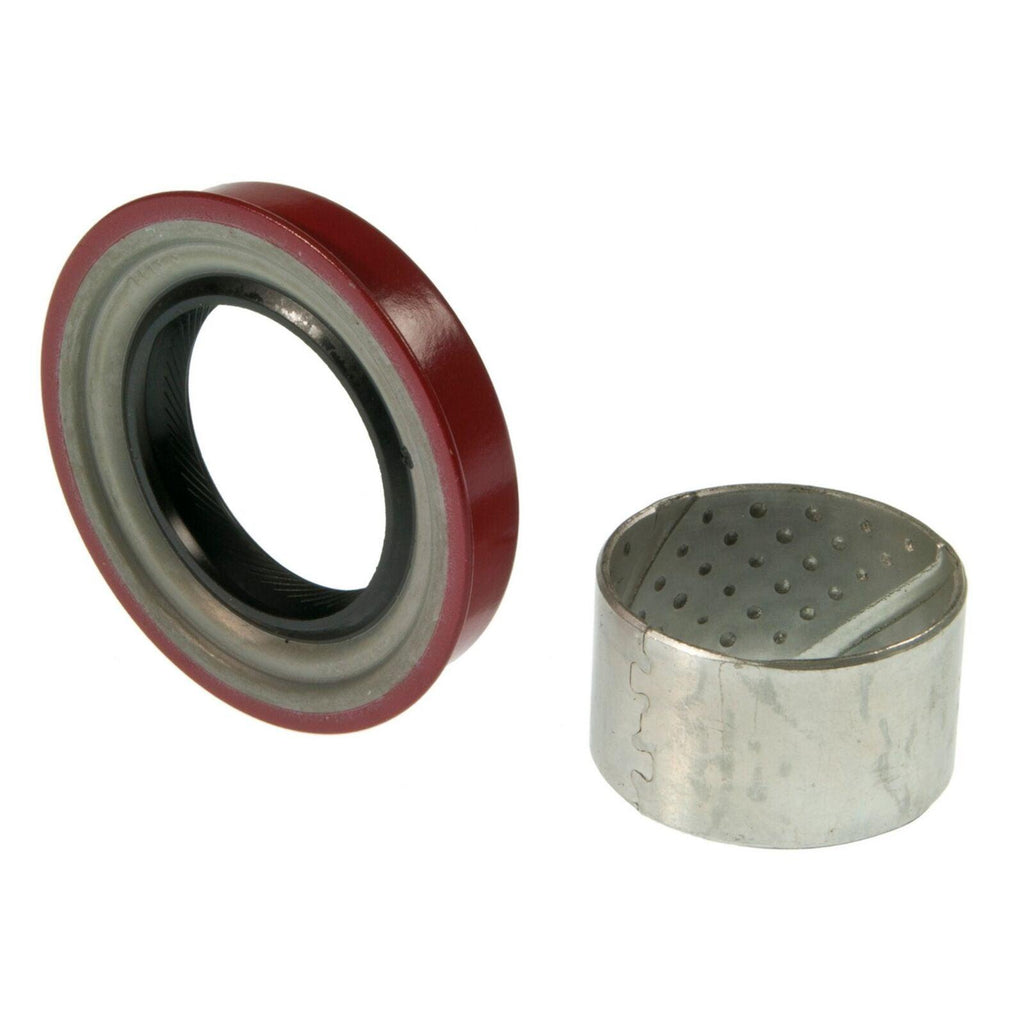

Contains: 9613s seal & rp356 bushing
Flanged Outside Diameter (Inch): 2.550
Flanged Outside Diameter (MM): 64.770
Footnote: Seal & bushing
Helix Type: Counter-clockwise-spiral lip design
Housing Bore (Inch): 2.377
Housing Bore (MM): 60.380
Material: Nitrile
Outside Diameter (Inch): 2.381
Outside Diameter (mm): 60.480
Part Description: Oil seal kit
Series: 5200
Shaft (Inch): 1.502
Shaft (MM): 38.150
Type: 71
Unit of Dimension: Inch
Width (Inch): 0.470
Width (mm): 11.940
Interchange Part Number: 15054 29311 29323 5200 SS46098 SS46328 SS46328SF
