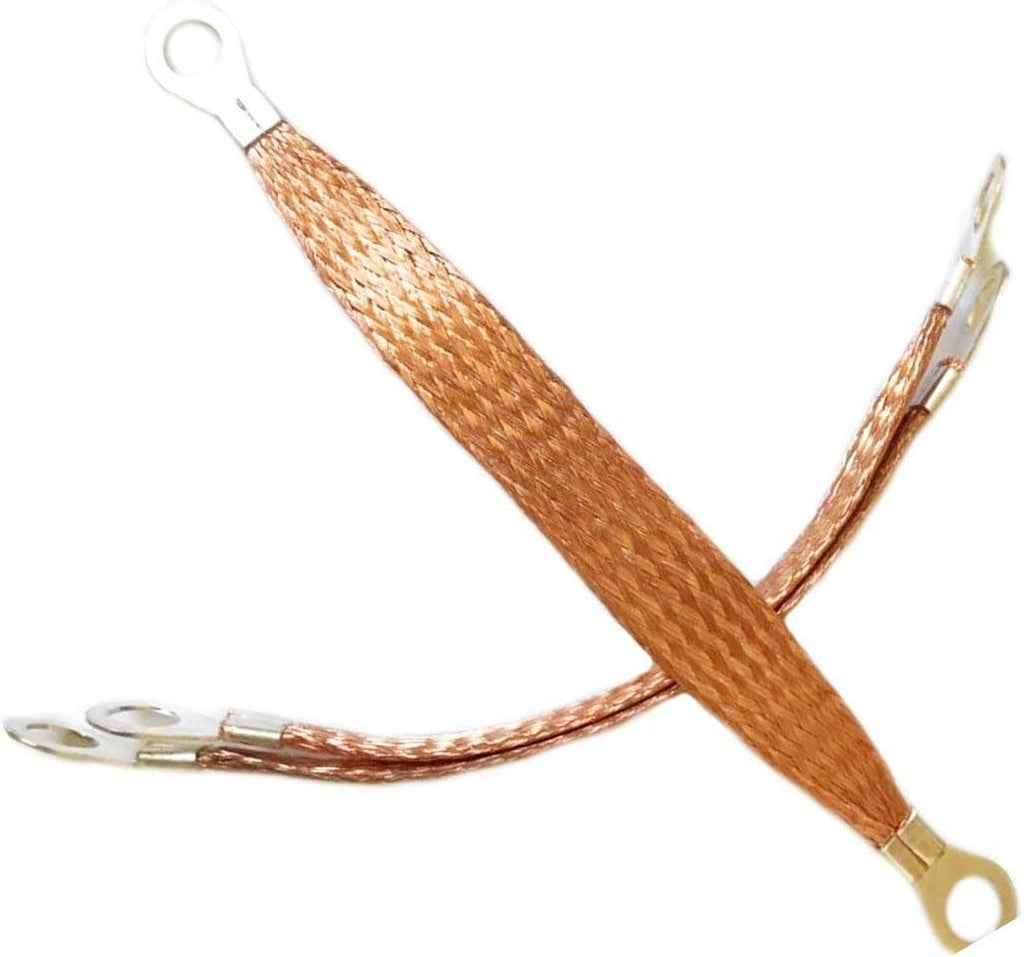

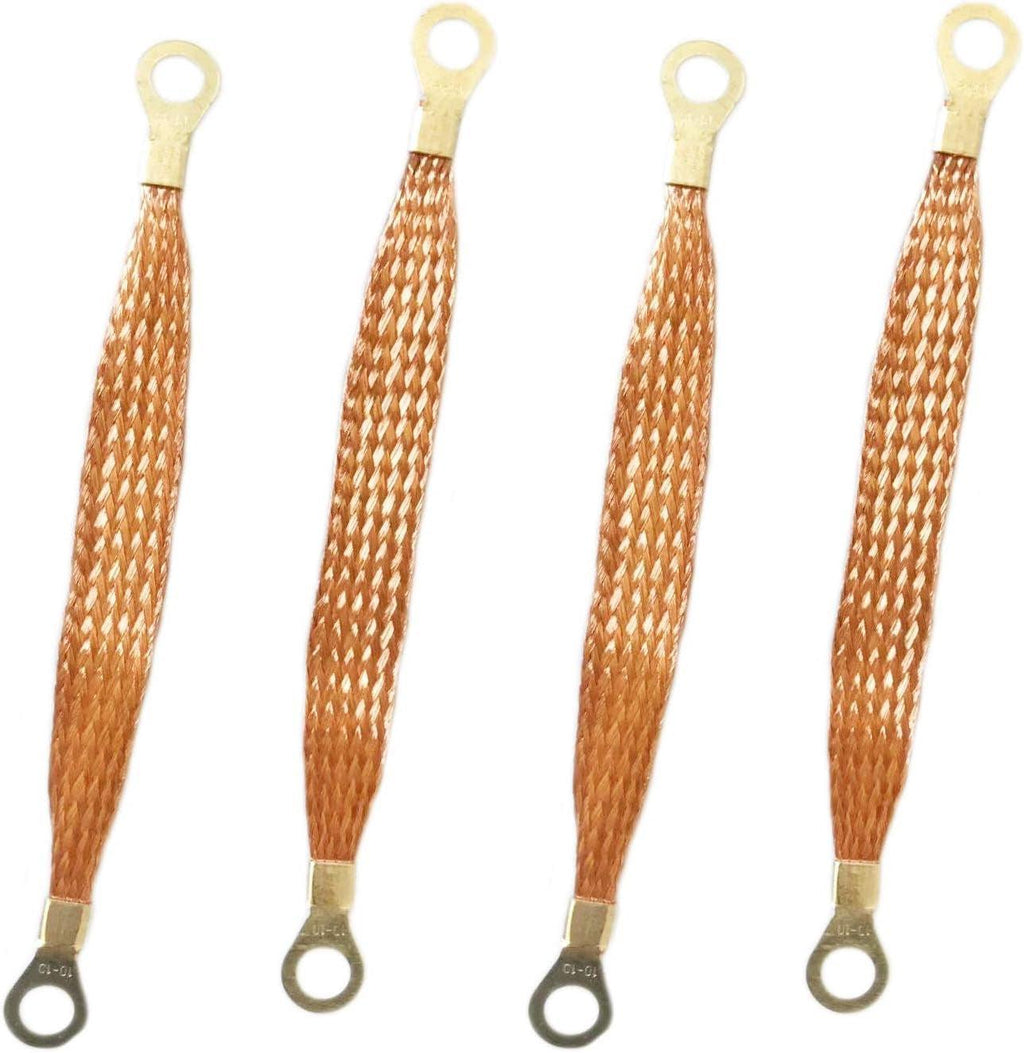

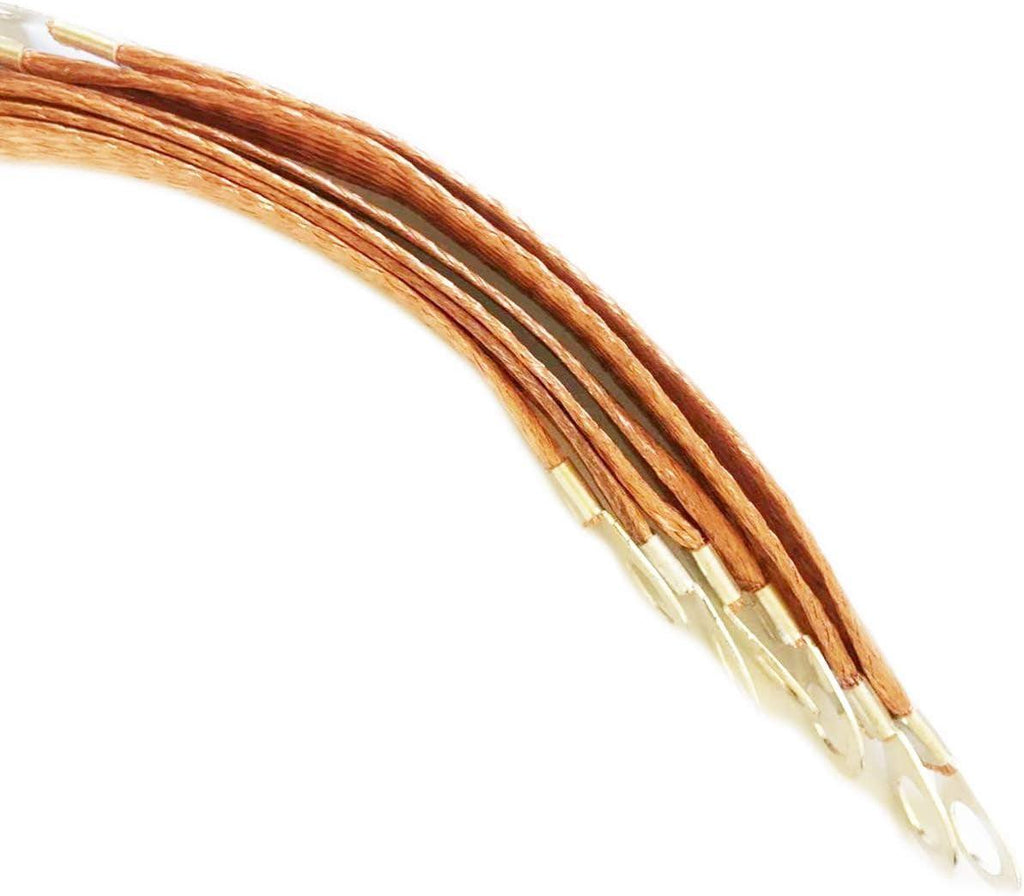

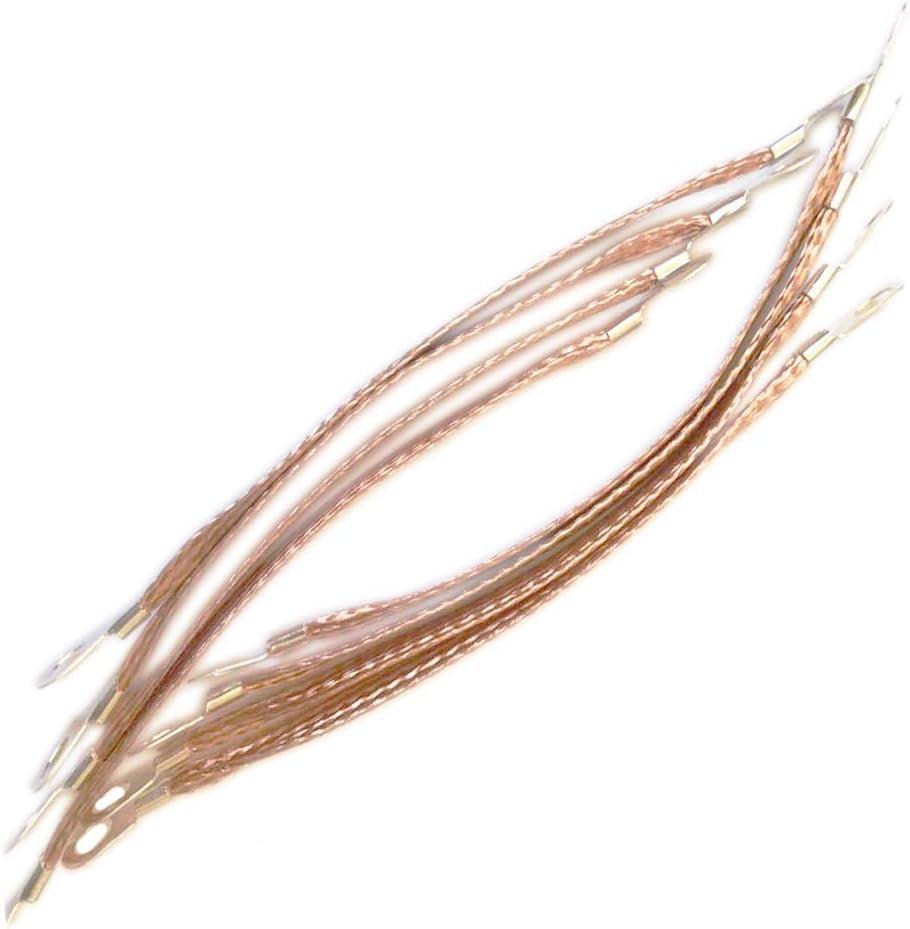

Automotive Universal Engine Grounding Braided Copper Straps Earth Bonding Straps (8 Inch 12 Inch 24 Inch) (Bare Copper 3/4" Width 8" Length 4PCS)

Availability: In stock

Product type:

Vendor: greatparts

Regular price $0.00 $38.89

Material : Bare Copper,Tinned Copper ( C11000 ) ,Length : 8"(203mm)12" (300mm),Terminal Eyelet : 6mm,8mm General purpose Flat Tinned copper braids,Recommended by...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Guaranteed safe checkout:

Material : Bare Copper,Tinned Copper ( C11000 ) ,Length : 8"(203mm)12" (300mm),Terminal Eyelet : 6mm,8mm

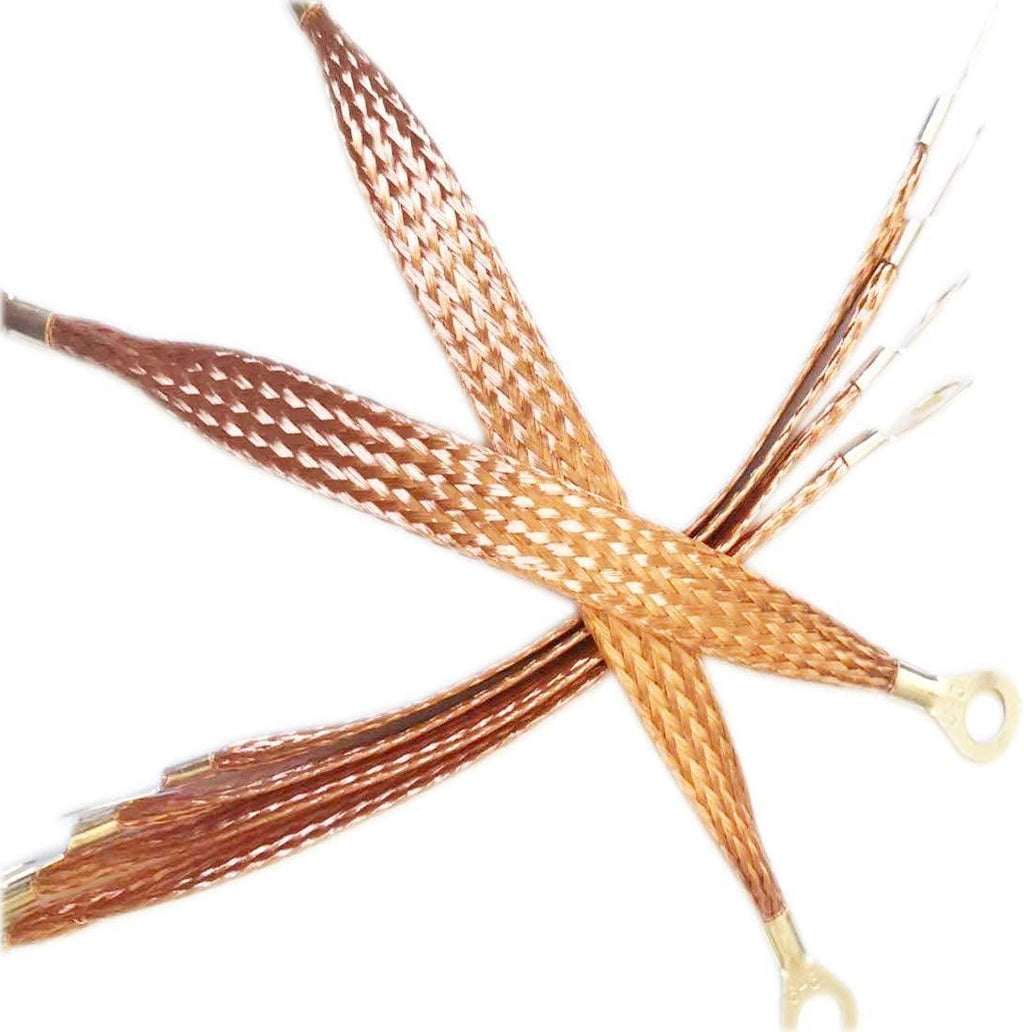

General purpose Flat Tinned copper braids,Recommended by EMC/EMI directives
Electrolytic copper Cu-ETP according to standard EN13602,UL Listed (UL467) except BJ,EAC certificate,RoHS 2002/95/EC Compliant
Copper purity of minimum 99.9%,Maximum resistivity of 0.017241 mm2/m at 20ºC,Bends very close to the contact area
Tinned copper added corrosion resistance and maximum conductivity.

Product Description

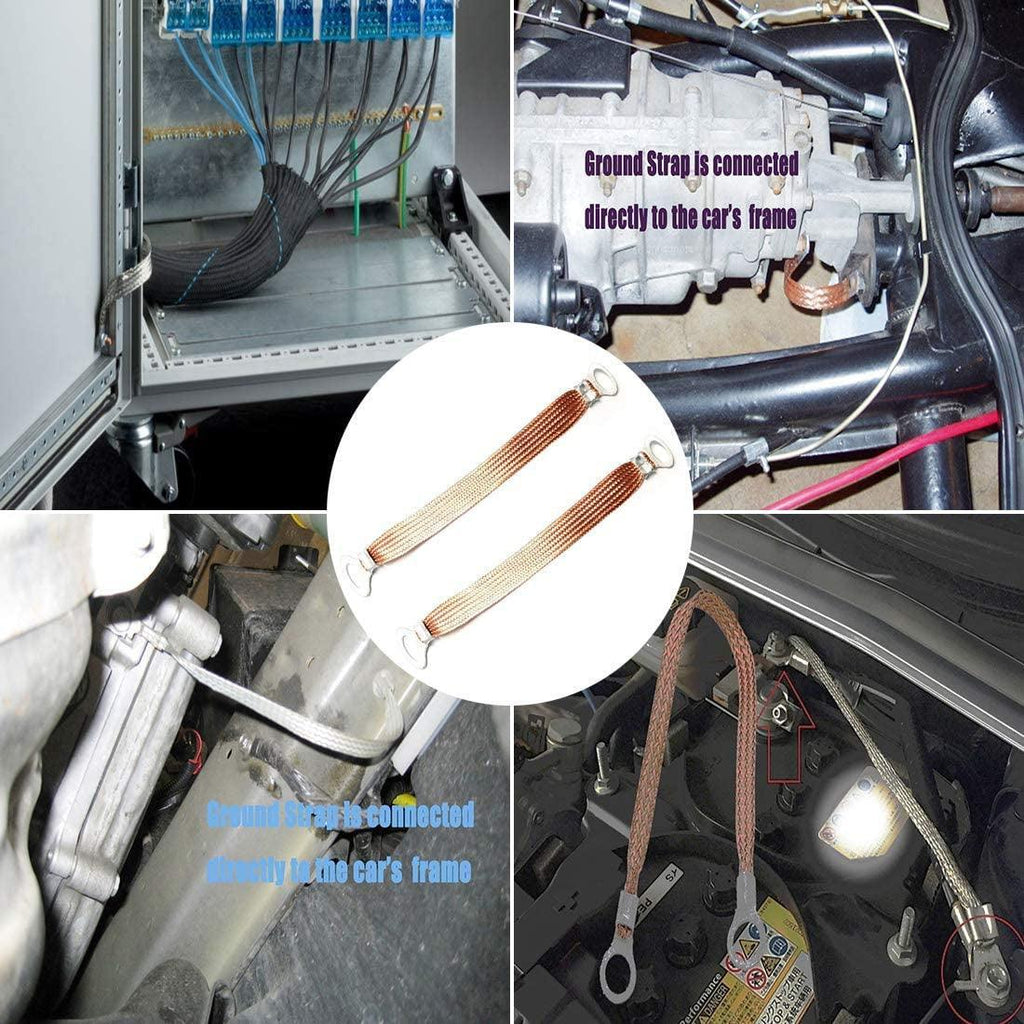

A ground strap is a cable that connects an engine block to a framework. There are cases when it will be directly connected to the negative battery terminal, This completes the circuit for electrical devices that are grounded to the engine. When your vehicle doesn’t start and refuses to hold a charge, or your lights flicker or dim, it may be time to replace your battery ground strap. Since these signs can also point to a failing battery, you may need to test your ground. Braid is the conductor of choice where flexibility is required. It is sometimes used for electrically bonding parts of a vehicle, for example an exhaust pipe, door, or hood.

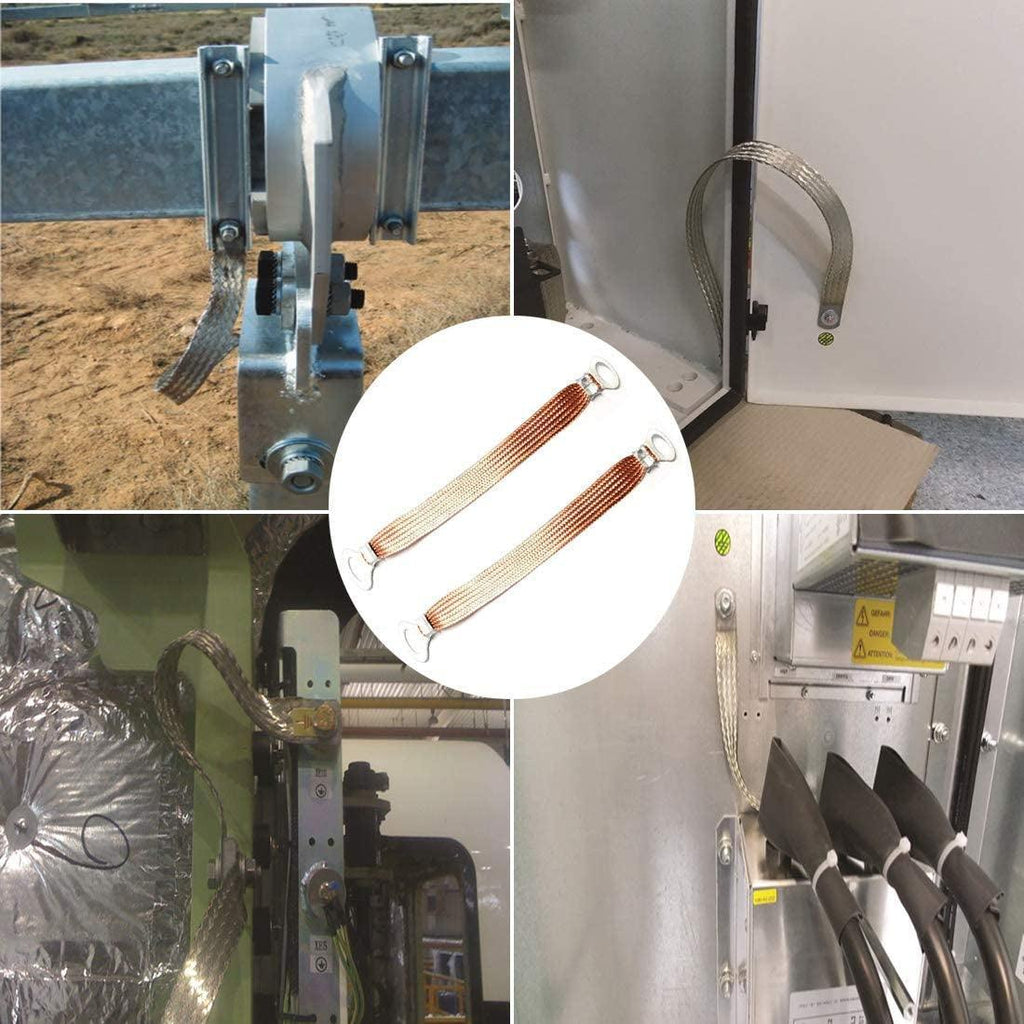

The Grounding of Wind, Solar, Biofuels and Traditional Power Sources is essential to insure the safety of personnel as well as the proper functioning of circuit protective devices. In addition to reducing ground loop noise or electrostatic discharge, braided Ground Straps provide a low resistance path to ground. The physical properties of braid allows for greater amperage thus creating greater heat dissipation over other materials used. flexibility is a must in such an application. Braid also has some degree of popularity for bonding amateur radio equipment to a common ground buss because of its flexibility.

Material	Tinned T-2 Copper	T-2 Copper	T-2 Copper	T-2 Copper	T-2 Copper

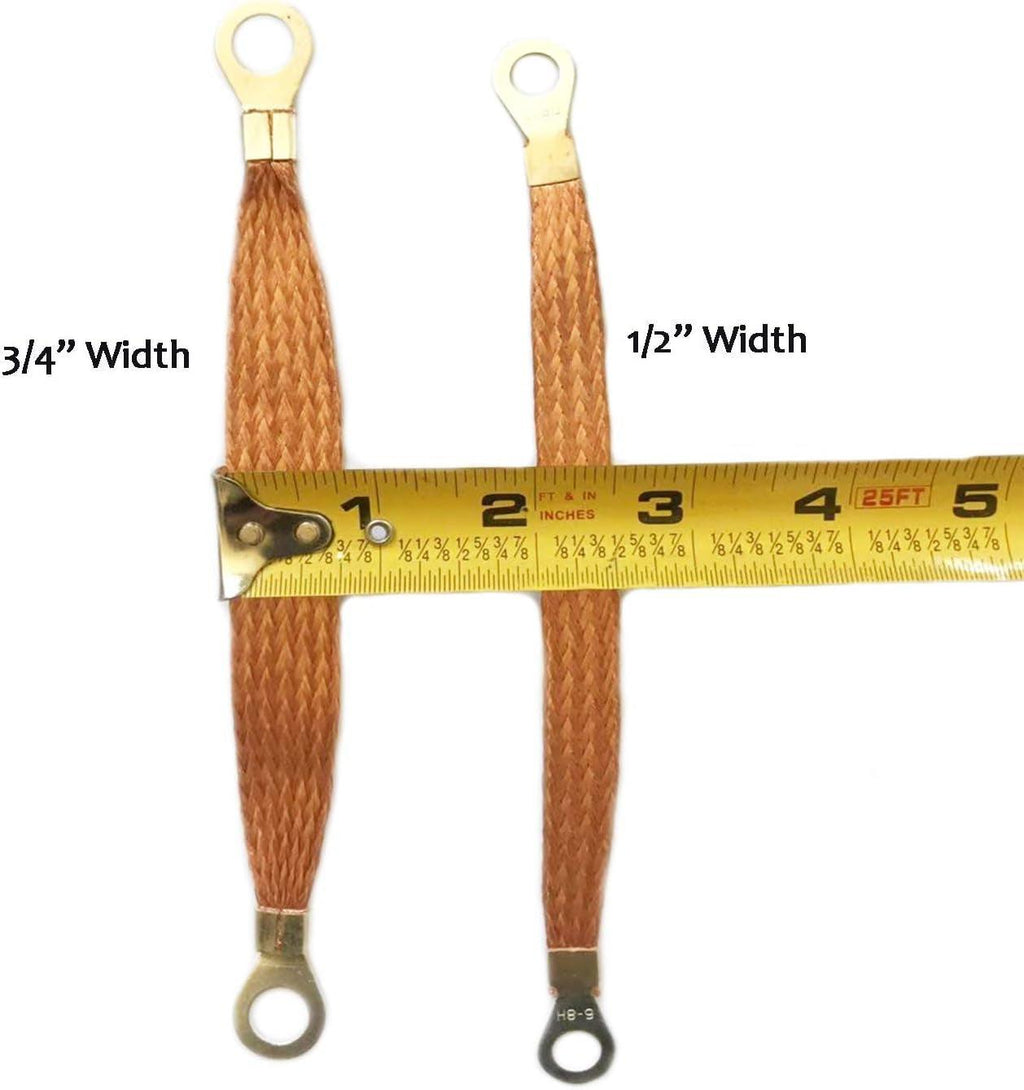

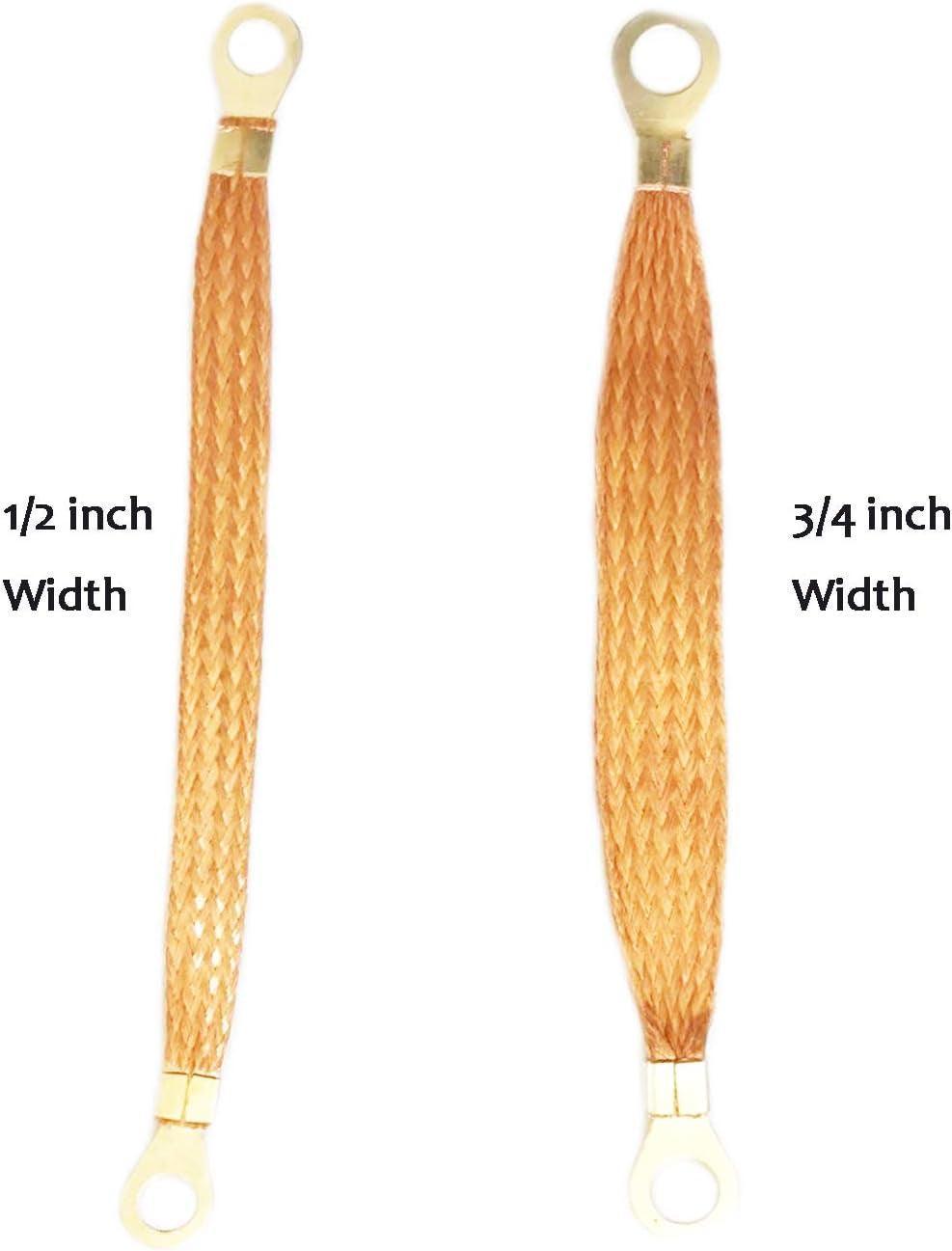

Width	1/2 Inch	1/2 Inch	1/2 Inch	1/2 Inch	1/2 Inch
Length	12 Inch	12 Inch	24 Inch	8 Inch	12 Inch
