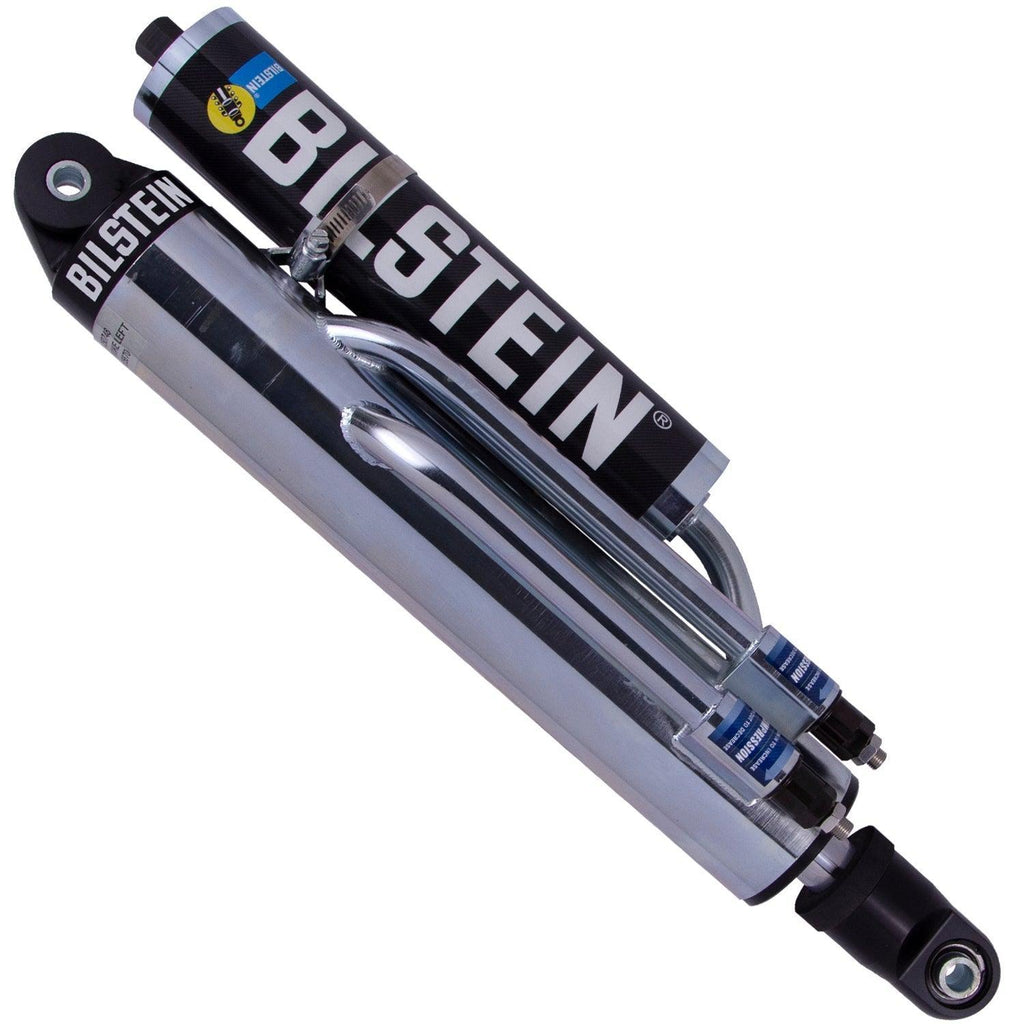

33-250748 Bilstein Shock Absorbers
Regular price $2,014.74 $2,014.74
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock...
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Attributes:
- GTIN: 00651860766478
- Brand Name: Bilstein
- Boot Included: N/A
- Series: M 9200 (Bypass)
- Upper Mount Type: Eye .5x1.5in
- Optional Reservoir Clamp: N/A
- Finish: Zinc Plated
- Collapsed Length (IN) Rounded: 20
- Position: Left
- Internal Design: Monotube
- Lower Mount Type: Eye .5x1.5in
- Collapsed Length (MM): 495.3
- Spring Seat Included: No
- Extended Length (IN): 29.50
- Reservoir: Yes
- Body Design: 4-Tube Bypass Screw Top
- Compression @0.52m/s: Custom
- Extended Length (IN) Rounded: 30
- Extended Length (MM): 749.3
- Collapsed Length (IN): 19.50
- Rebound @0.52m/s: Custom
- Body Diameter (ID): 70mm
- Mount Type: Eye-to-Eye
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 33.5000 x 11.8800 x 8.8800 inches
- Weight: 29.1000 lb
