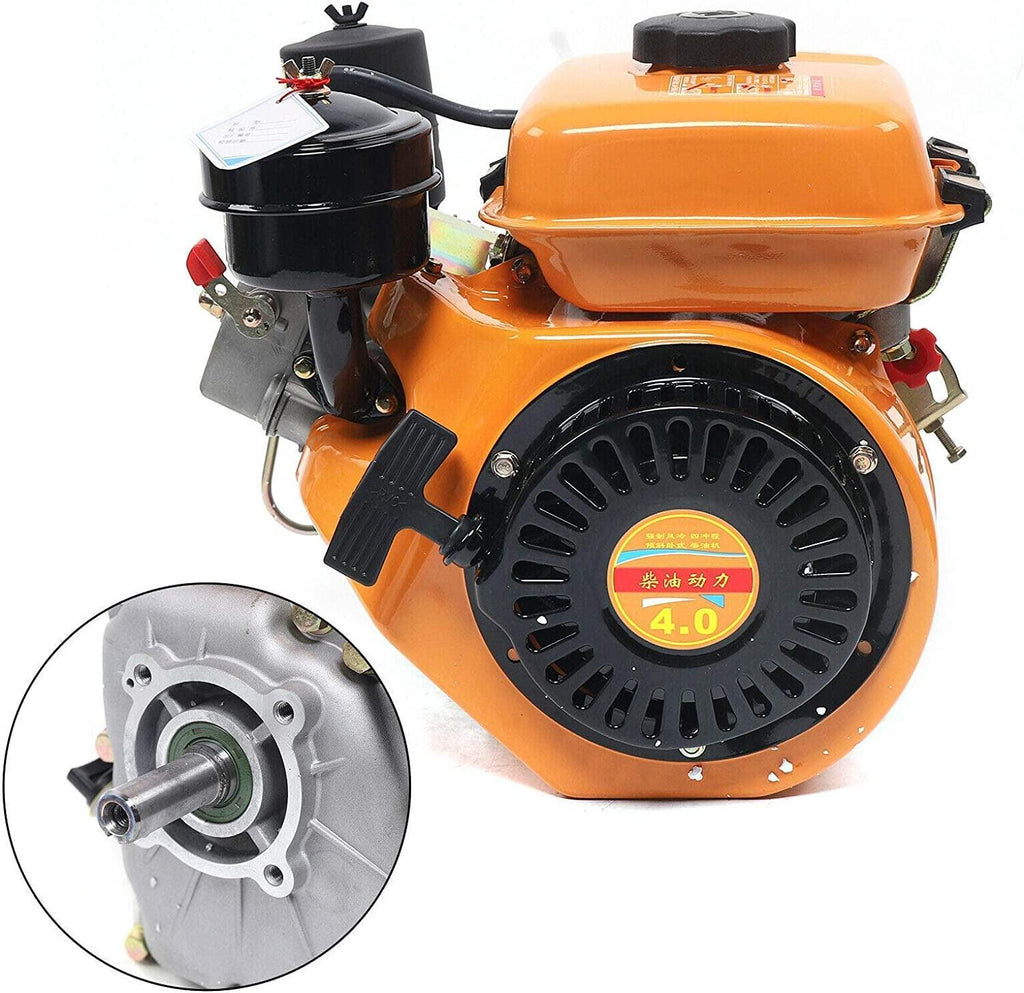

Diesel Engine 196CC Vertical 4-Stroke Diesel Engine Manual Start Single Cylinder Engine 2200KW

Availability: In stock

Product type:

Vendor: greatparts

Regular price $0.00 $354.65

Widely used in pasture management machines, irrigation and drainage machines, generator sets, small transport vehicles, small walking tractors and other small agricultural...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Guaranteed safe checkout:

Widely used in pasture management machines, irrigation and drainage machines, generator sets, small transport vehicles, small walking tractors and other small agricultural machinery fields.
Through advanced software analysis and optimization design, the reliability of the diesel engine in terms of structure and cooling is ensured.
Optimize the fuel system and intake and exhaust systems to save energy and fuel.
Compact structure, small size and light weight.Compared with gasoline engines, it is more economical and lighter than vertical diesel engines.
High performance, reliable quality.Economical and compact structure.We have warehouses in the eastern and southern parts of the United States, and we have a professional customer service team that will reply to your information email within 24 hours.

Product Description

196cc Air-cooled Diesel Engine 4 Stroke Single Cylinder 53mm Shaft Length 168f

Packing List

Diesel Engines

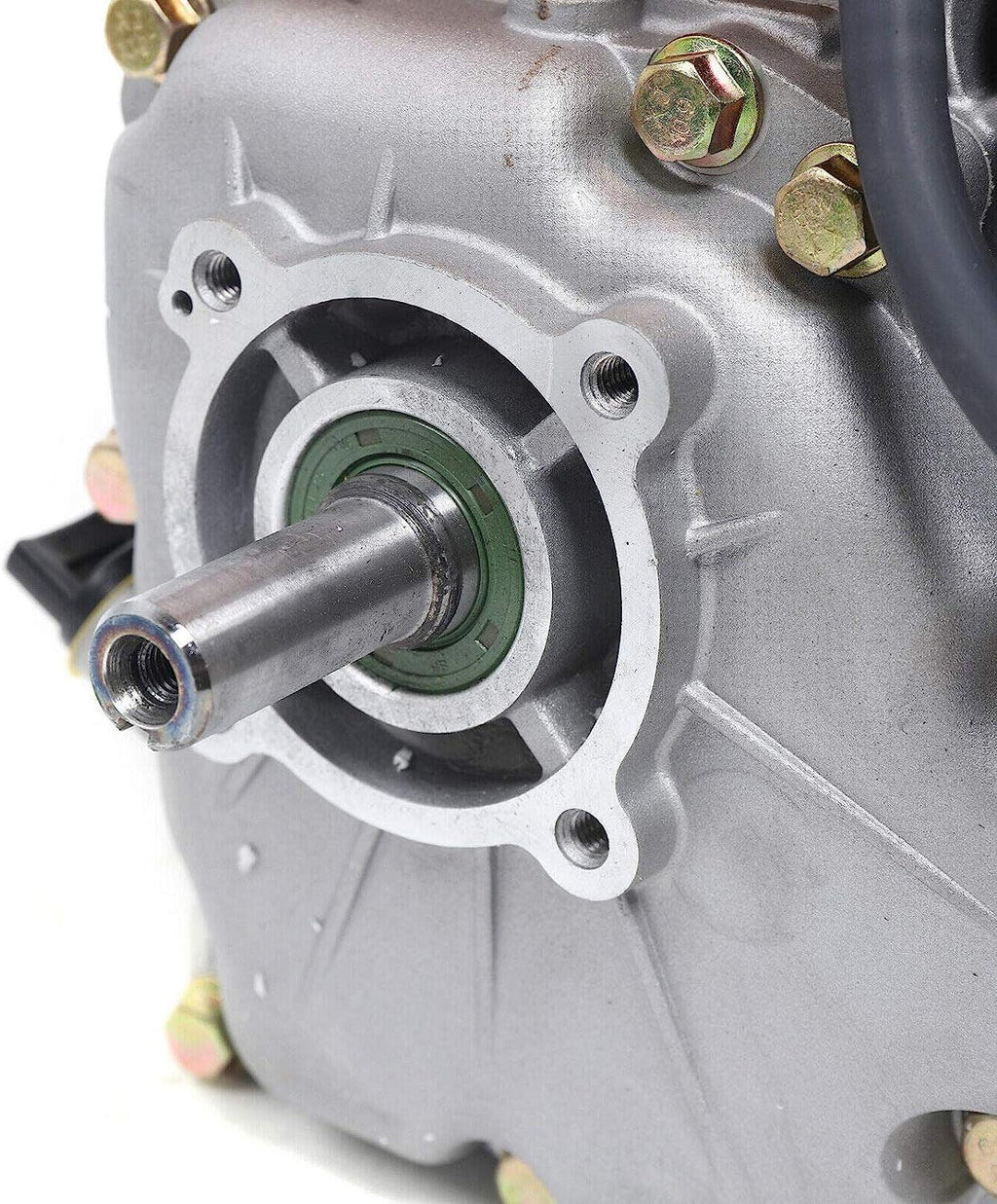

Shaft Length: 20*53mm (0.787*2.09 Inches)
Shaft Inner Diameter Thread Size: M8*1.25mm (0.049 Inch)
Oil System: Splash
Engine Cooling Method: Air Cooling
Weights&Dimensions:

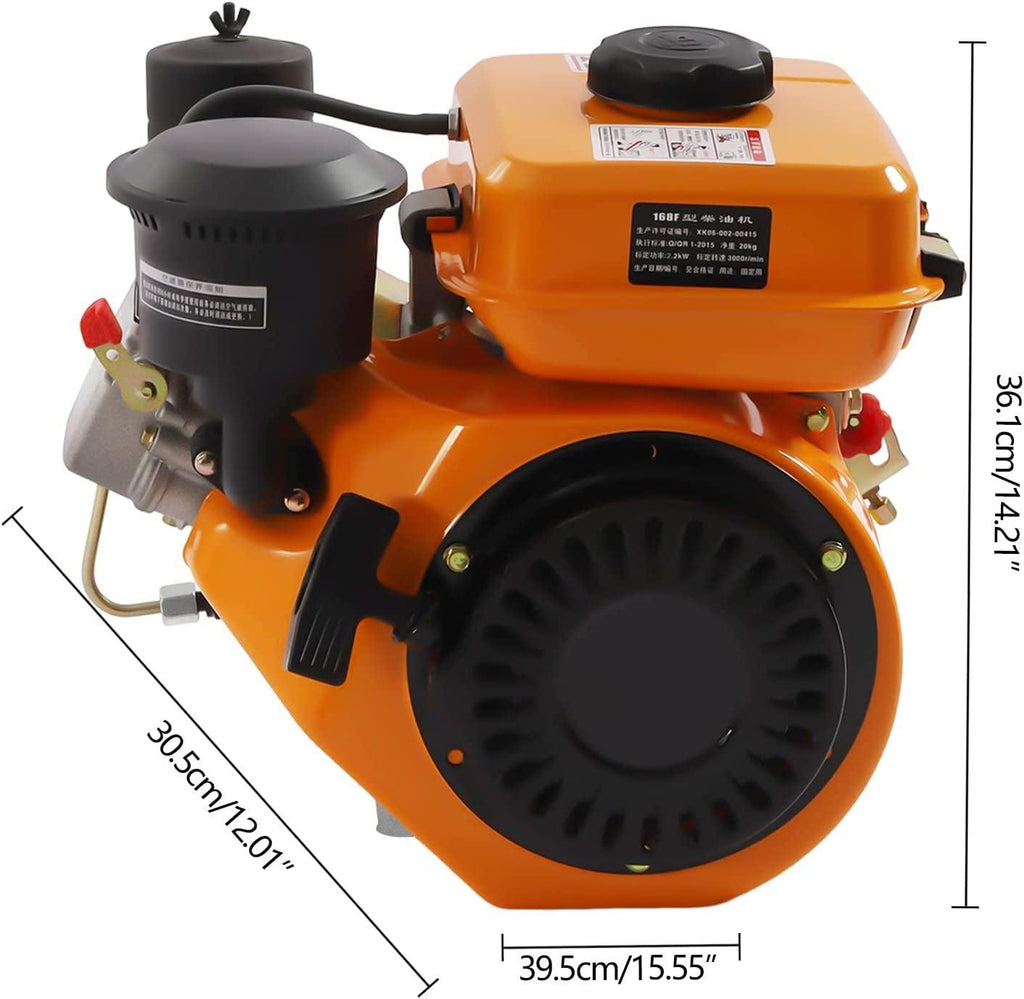

Dimensions: 395*305*361mm (15.55*12.01*14.21 Inches)
Product Weight: 20kg (44.09 Pounds)

Specification

Model: 168f
Type: Horizontal Axis, Four-stroke, Air-cooled Diesel Engine
Shell Material: Aluminum
Ignition Method: Compression Ignition
Displacement (Cc): 196cc
Speed (Rpm): 3000 Rpm
Maximum Output (Kw): 2.2kw
Start Method: Manual Start
Fuel Tank Capacity (L): 3l
Engine Oil Capacity: 0.7l

Net Torque: 8n.m/2880rpm
Number of Cylinders: Single Cylinder
Compression Ratio: 22:1
Bore Size (Mm): 68*54mm (2.68*2.13 Inches)
Fuel: 0# Diesel
Fuel Consumption Rate (G / Kw.h): 310g / Kw.h
Starting System: Hand Recoil
Shaft Type: Flat Key
Shaft Diameter: 2.0cm (0.787 Inch)
Keyway: 5mm (0.197 Inch)

Through Advanced Software Analysis and Optimization Design, the Reliability of the Diesel Engine in Terms of Structure and Cooling Is Ensured

Optimize the Fuel System and Intake and Exhaust Systems to save Energy and Fuel

High performance, reliable quality. Compact Structure, Small Size and Light Weight.compared with Gasoline Engines, It Is More Economical and Lighter than Horizontal Axis Diesel Engines

Application

Widely Used in Pasture Management Machines, Irrigation and Drainage Machines, Generator Sets, Small Transport Vehicles, Small Walking Tractors and Other Small Agricultural Machinery Fields
