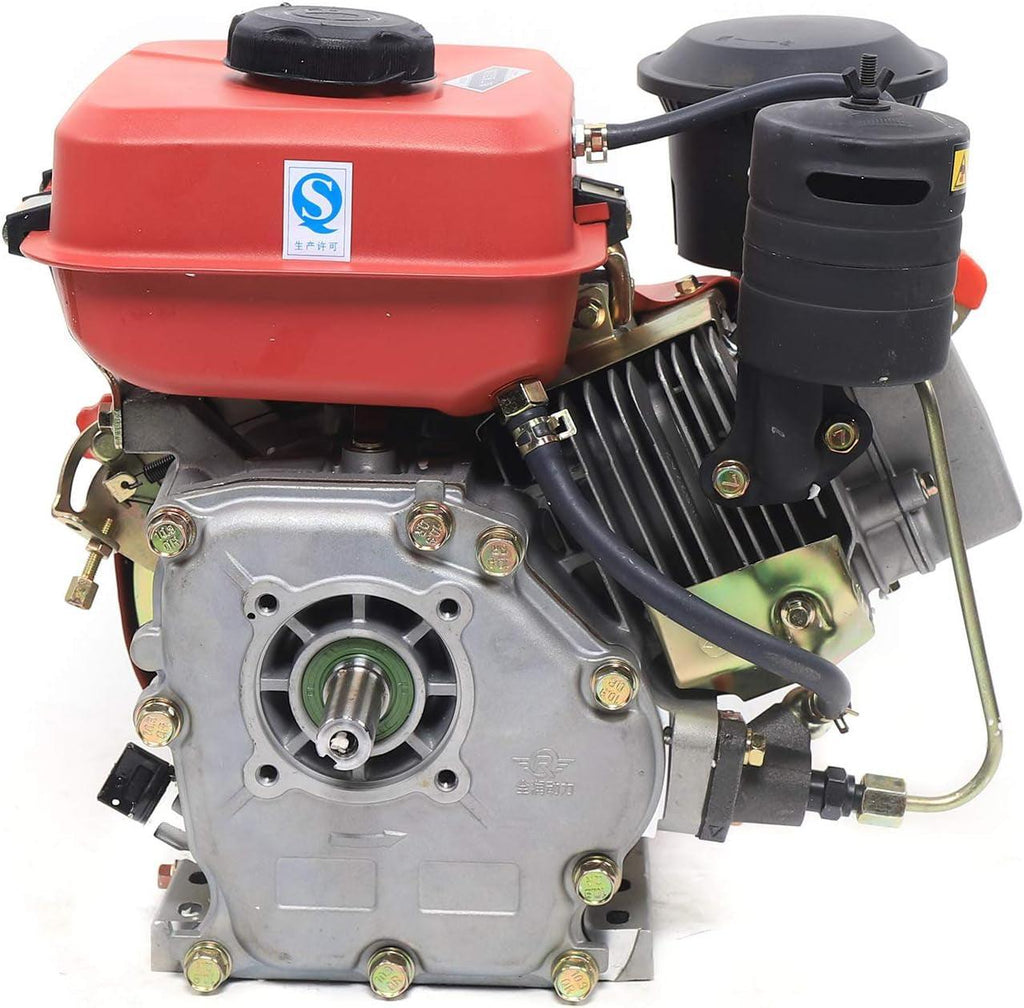

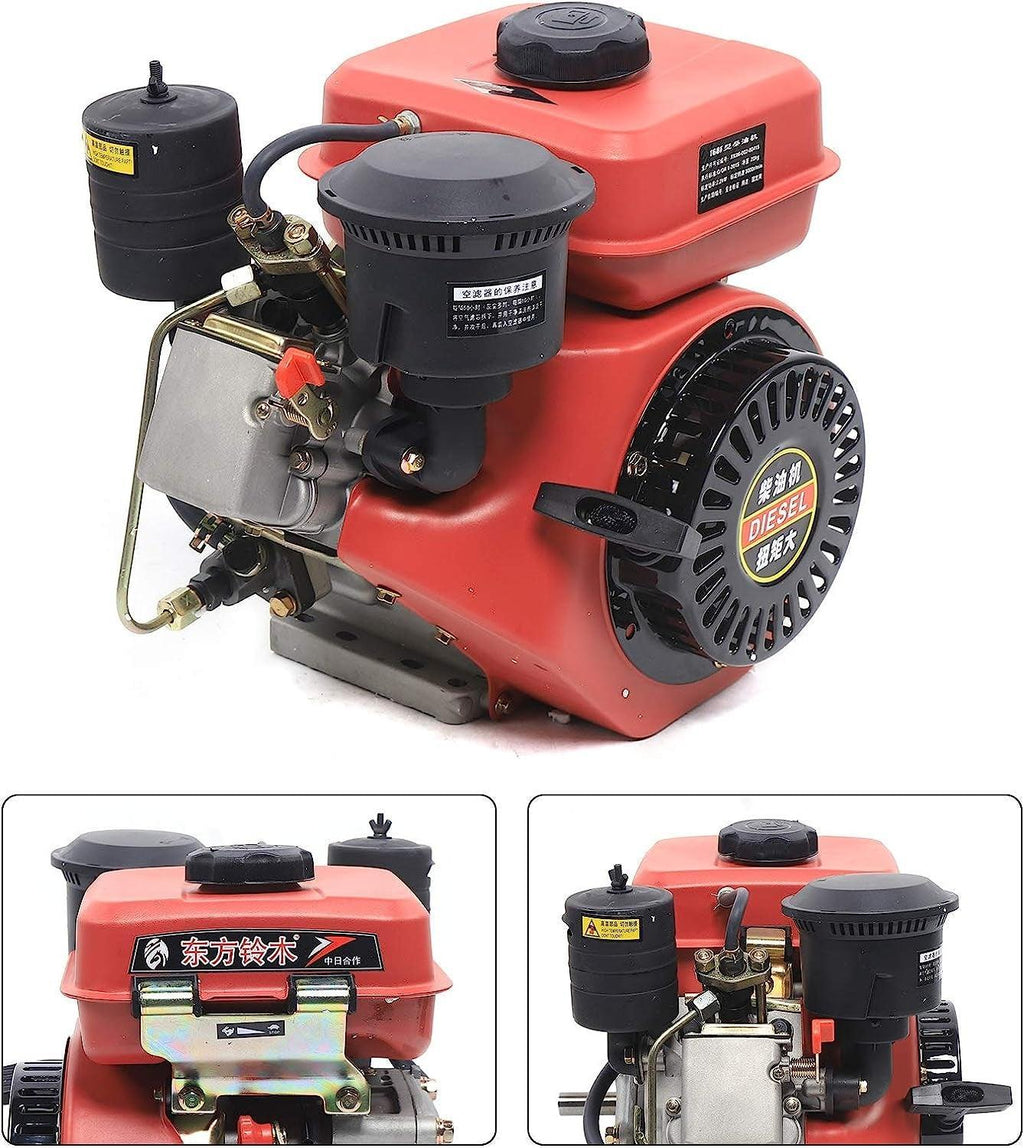

Diesel Engine, 4 Stroke 196CC Engine Air Cooling Single Cylinder Motor Recoil Hand Start 53Mm Shaft Length 3000RPM 2.2KW, 3L Air Cooling Vortex Oil System

Availability: Unavailable

Product type:

Vendor: greatparts

Regular price $0.00 $197.72

Through advanced software analysis and optimized design, the reliability of the diesel engine in terms of structure and cooling is ensured. Optimize...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Guaranteed safe checkout:

Through advanced software analysis and optimized design, the reliability of the diesel engine in terms of structure and cooling is ensured.
Optimize the fuel system and intake and exhaust systems to save energy and fuel. Self-injection fuel system: good atomization, low fuel consumption, more punctual fuel injection, and long service life.
Compact structure, small size and light weight. Compared with gasoline engines, it is more economical and lighter than vertical diesel engines.
Large capacity fuel tank：Enhanced thickening, large fuel tank volume, special painting process, seam welding, and oil leakage.
Alloy box：Enhanced thickening, fast heat dissipation, low oil temperature, light weight.

Product Description

Through advanced software analysis and optimized design, the reliability of the diesel engine in terms of structure and cooling is ensured.
Optimize the fuel system and intake and exhaust systems to save energy and fuel.
Self-injection fuel system: good atomization, low fuel consumption, more punctual fuel injection, and long service life
Compact structure, small size and light weight. Compared with gasoline engines, it is more economical and lighter than vertical diesel engines.
Large capacity fuel tank：Enhanced thickening, large fuel tank volume, special painting process, seam welding, and oil leakage
Alloy box：Enhanced thickening, fast heat dissipation, low oil temperature, light weight

usage method

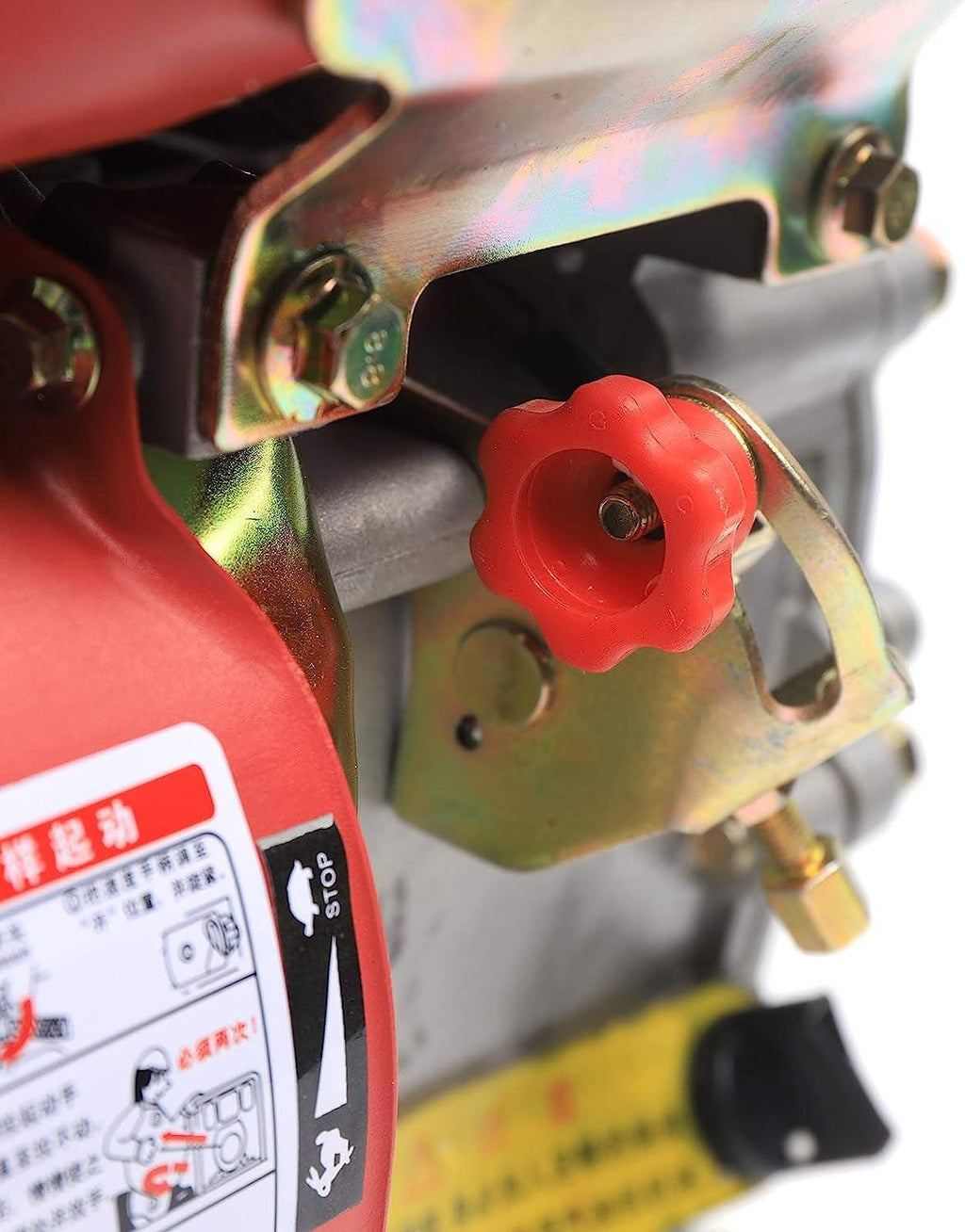

1. Turn on the throttle switch and fix the throttle handle (the throttle handle can be rotated left and right for fixing and restoring the throttle switch)

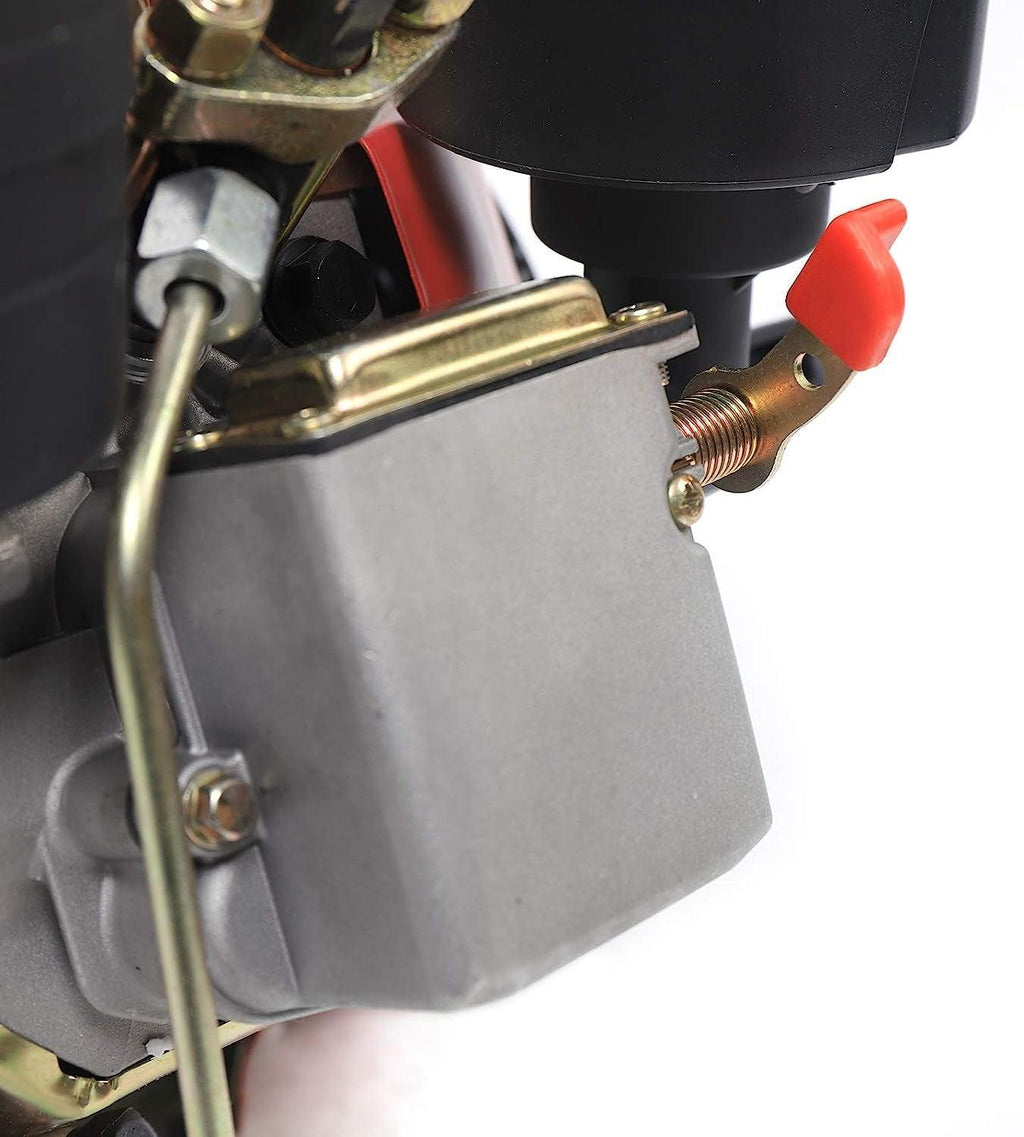

2. Press the decompression handle, pull the starting handle, and pull it several times until you hear the sound of the engine starting, then release the decompression handle.

3. Pull the startup handle again. When the startup handle cannot be pulled, press the decompression handle again and pull the startup handle forcefully and quickly to start successfully.

Rated power	2.2KW
maximum power	2.4KW
Calibration speed	3000r/min
lube brand	SAE10W30(above CC grade)

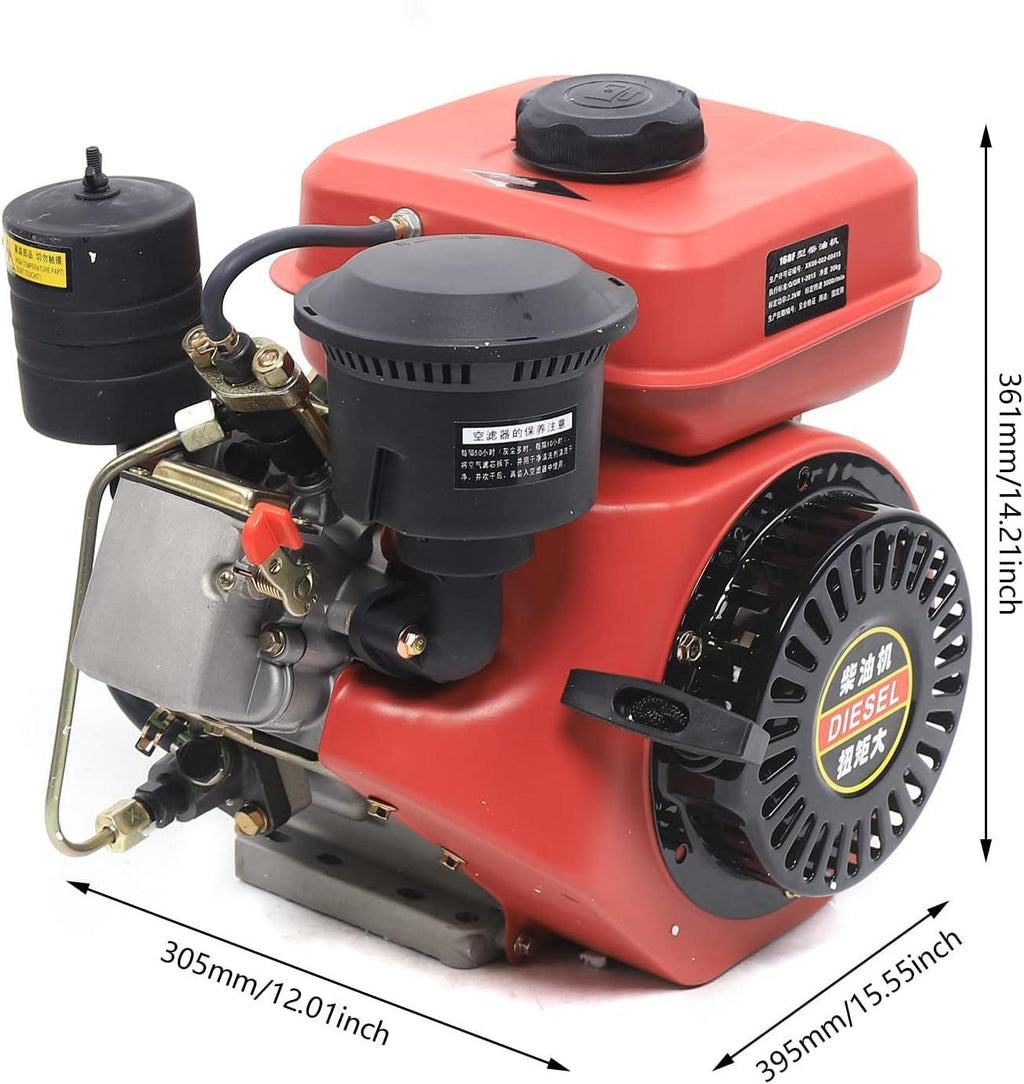

dimension(L x W x H)（mm）	395 X 305 X 361
packing size(L x W x H)（mm）	430 X 385 X 410
Gross weight(kg)	22/26(electric starter)

Model	QR168F
Engine type	single cylinder, tilt, 4-stroke, swirl chamber, forcible air-cool
bore X stroke(mm)	68x54
displacement(cc)	196
compression retio	22:1
engine speed(r/min)	3000
max output power[kw(hp)]	2.42(3.3)
rated output power[kw(hp)]	2.2(3)

SPE fuel consumption（g/kw.h）	≤280

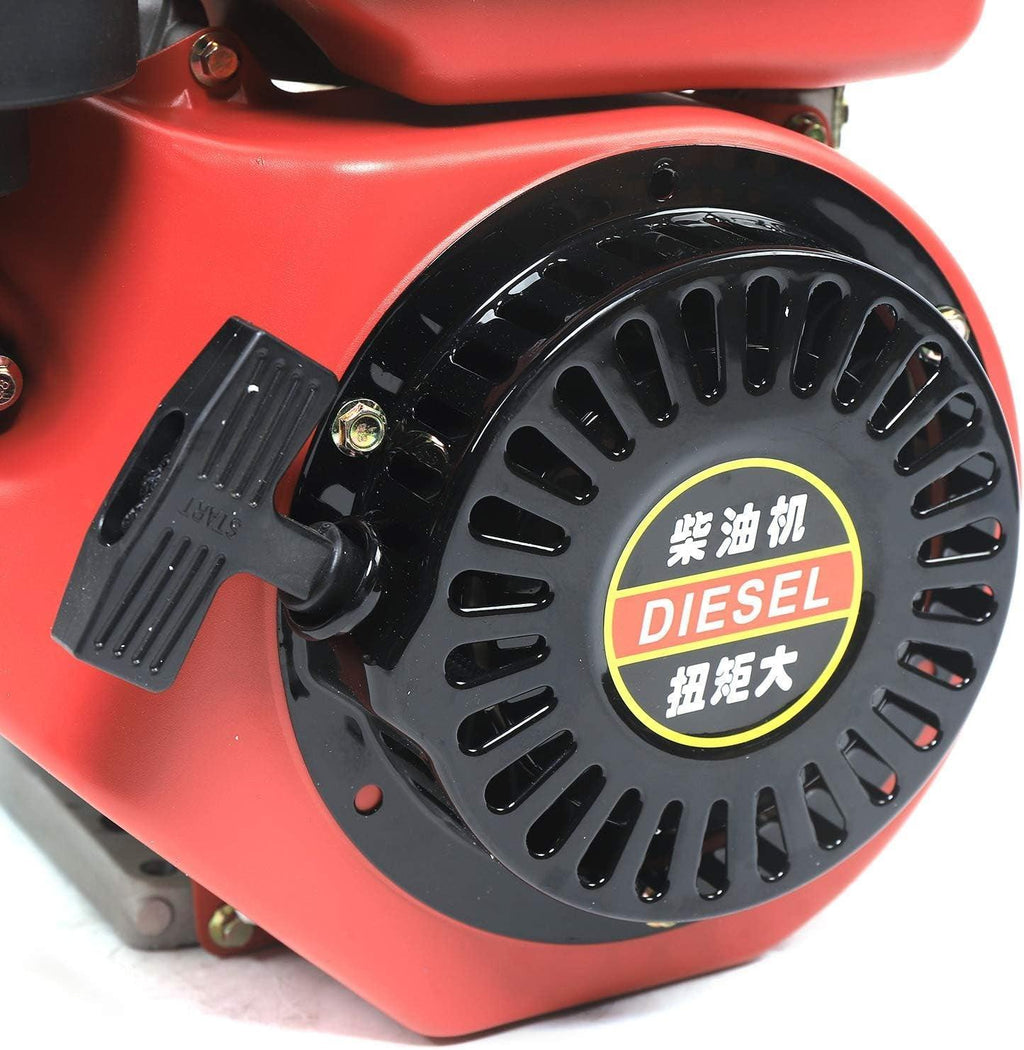

starter system	recoil starter(electric starter)

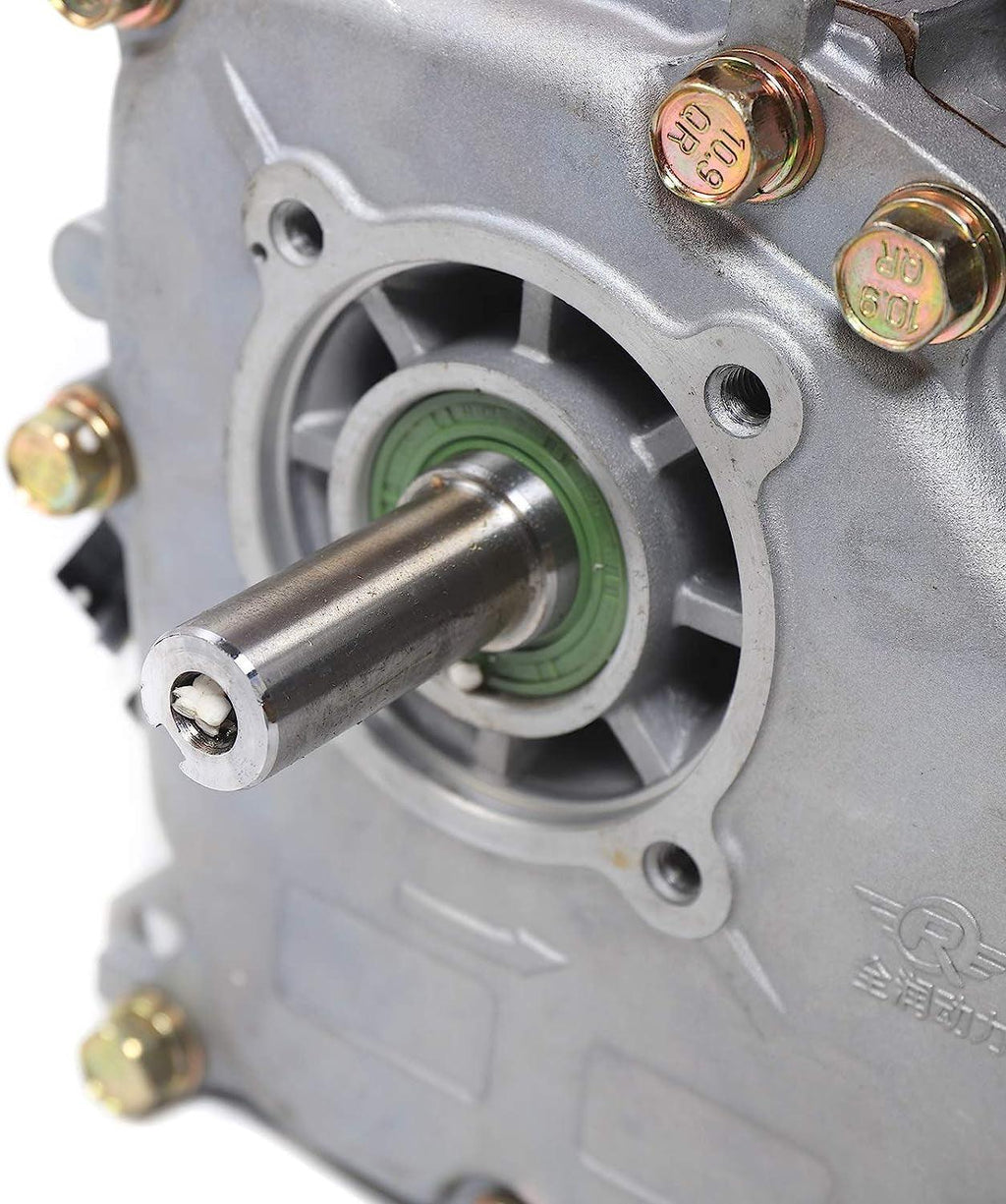

POT shaft	crankshaft
Net weight(kg)	20/24(electric starter)
rotation	anti-clockwise (view from flywheel )
fuel type	0#(summer),-10#(winter) diesel oil
fuel tank capacity(L)	3
Lubrication way	splash lubrication
