Engine Cooling Fan Clutch for S10, Sonoma, S15, S10 Blazer, S15 Jimmy+More 2580
Regular price $0.00 $75.98
eBay Engine Cooling Fan Clutch for S10, Sonoma, S15, S10 Blazer, S15 Jimmy+More 2580 Fitment Chart: Years Make Model Liters Cylinders Notes...
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.

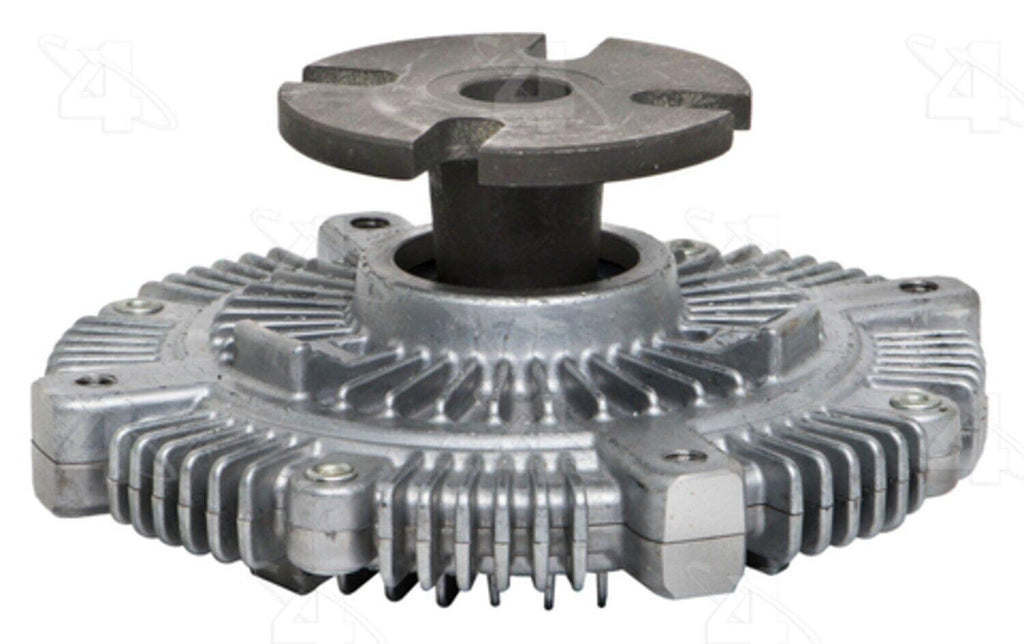

Engine Cooling Fan Clutch for S10, Sonoma, S15, S10 Blazer, S15 Jimmy+More 2580
Specifications:
Part Category: Engine Cooling Fan Clutch
Brand: Hayden
Manufacturer Part Number: 2580
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Material: Aluminum
Use Type: Standard
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 2.15
Distance From Clutch To Mounting Flange: 2.16
Clutch Maximum Diameter: 5.65
Clutch Maximum Diameter: 5.66
Rotation: Rev
Mounting Type: Flange
Bolt Quantity: 4
Bolt Thread: M6 x 1.0 hole
Clutch Type: A - 5" & 6" import
Description: Fan clutches
Dia. IN: 5.65
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 5.03
Fan Bolt Circle MM: 127.8
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 2.7
Mount Dia. MM: 69
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 143.5
Overall Height IN: 2.69
Overall Height MM: 68.1
Performance Rated?: Yes
Pilot Depth IN: 0.7
Pilot Depth MM: 17.8
Interchange Part Number: 067010 11136900V 115179 1540052 154374 154604 154977 15549993
Replaces Part Numbers: 15564860 15642505 19149906 215179 22179 230256 2580 2580TA 271332
Replacement Part Numbers: 2911255 2911285 36900 402256 402580 4879R 5529 7136900 77213
Replace Part Numbers: 922580 9302220 A71332 CWK922580 FC117 FC2580 FFC5780T GC825 LF256
Replaces Parts: KG2580
Brand Label: Fan Clutch
Important Information:
HOW TO CHECK VEHICLE FITMENT:
Please use eBay Vehicle Compatibility Guide to determine fitment to your vehicle.
RETURN POLICY:
We offer a 30 day return policy on new and unused items in original packaging. Please see the Returns section of the listing for full return policy information.
Damaged items can only be exchanged once the original shipment is received back.
SHIPPING INFORMATION:
This ships via standard shipping.
We ship from multiple warehouses and will always ship from the closest warehouse to your location.
International orders are handled exclusively through the eBay Global Shipping Program.
Fitment Chart:
| Years | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1989-1991 | Chevrolet | S10 | 2.5L | L4 | Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Front Mount Fan |
| 1987-1993 | Chevrolet | S10 | 2.8L | V6 | Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Front Mounted Fan; w/o AC |
| 1991 | GMC | Sonoma | 2.5L | L4 | Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Front Mount Fan |
| 1991-1993 | GMC | Sonoma | 2.8L | V6 | Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Front Mounted Fan; w/o AC |
| 1989-1990 | GMC | S15 | 2.5L | L4 | Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Front Mount Fan |
| 1987 | Chevrolet | Astro | 2.5L | L4 | Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Front Mounted Fan; w/o AC |
| 1987-1989 | Chevrolet | S10 Blazer | 2.8L | V6 | Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Front Mounted Fan; w/o AC |
| 1987-1990 | GMC | S15 | 2.8L | V6 | Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Front Mounted Fan; w/o AC |
| 1987-1989 | GMC | S15 Jimmy | 2.8L | V6 | Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Front Mounted Fan; w/o AC |
| 1987 | GMC | Safari | 2.5L | L4 | Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Front Mounted Fan; w/o AC |
Specifications:
Part Category: Engine Cooling Fan Clutch
Brand: Hayden
Manufacturer Part Number: 2580
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Material: Aluminum
Use Type: Standard
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 2.15
Distance From Clutch To Mounting Flange: 2.16
Clutch Maximum Diameter: 5.65
Clutch Maximum Diameter: 5.66
Rotation: Rev
Mounting Type: Flange
Bolt Quantity: 4
Bolt Thread: M6 x 1.0 hole
Clutch Type: A - 5" & 6" import
Description: Fan clutches
Dia. IN: 5.65
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 5.03
Fan Bolt Circle MM: 127.8
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 2.7
Mount Dia. MM: 69
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 143.5
Overall Height IN: 2.69
Overall Height MM: 68.1
Performance Rated?: Yes
Pilot Depth IN: 0.7
Pilot Depth MM: 17.8
Interchange Part Number: 067010 11136900V 115179 1540052 154374 154604 154977 15549993
Replaces Part Numbers: 15564860 15642505 19149906 215179 22179 230256 2580 2580TA 271332
Replacement Part Numbers: 2911255 2911285 36900 402256 402580 4879R 5529 7136900 77213
Replace Part Numbers: 922580 9302220 A71332 CWK922580 FC117 FC2580 FFC5780T GC825 LF256
Replaces Parts: KG2580
Brand Label: Fan Clutch
Important Information:
- Product Notes - If the product notes states "with" or "without", this means this will fit if your vehicle is equipped "with" or "without" that feature. For example, if it states "with fog lamps", this means your vehicle must be equipped with fog lamps. This does not mean that fog lamps are included.
HOW TO CHECK VEHICLE FITMENT:
Please use eBay Vehicle Compatibility Guide to determine fitment to your vehicle.
- Select your vehicle using the eBay Compatibility Guide
- Important: Hover or click the Notes section to view additional fitment information
RETURN POLICY:
We offer a 30 day return policy on new and unused items in original packaging. Please see the Returns section of the listing for full return policy information.
Damaged items can only be exchanged once the original shipment is received back.
SHIPPING INFORMATION:
This ships via standard shipping.
We ship from multiple warehouses and will always ship from the closest warehouse to your location.
International orders are handled exclusively through the eBay Global Shipping Program.
Your order are processed for fast delivery within 24hrs.
- Standard delivered 4-5 Business Days
- Express delivered 2-4 Business Days
Orders are processed and delivered Monday-Friday (excluding public holidays)
eMarket members enjoy free returns.
