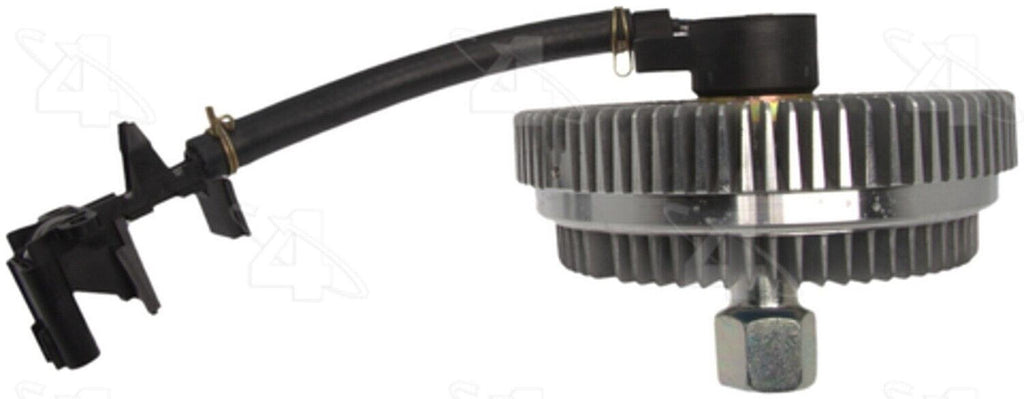

Engine Cooling Fan Clutch for Trailblazer, Envoy, Rainier, Ascender+More 46024

Availability: In stock

Product type:

Vendor: Does not apply

Regular price $0.00 $266.35

eBay Engine Cooling Fan Clutch for Trailblazer, Envoy, Rainier, Ascender+More 46024 Fitment Chart: Years Make Model Notes 2006-2009 Chevrolet Trailblazer Reverse Rotation;...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Guaranteed safe checkout:

eBay

Engine Cooling Fan Clutch for Trailblazer, Envoy, Rainier, Ascender+More 46024

Fitment Chart:

Years	Make	Model	Notes
2006-2009	Chevrolet	Trailblazer	Reverse Rotation; Severe Duty Thermal Fan Clutch; w/ Electronic Fan Clutch
2006	Chevrolet	Trailblazer EXT	Reverse Rotation; Severe Duty Thermal Fan Clutch; w/ Electronic Fan Clutch
2006-2009	GMC	Envoy	Reverse Rotation; Severe Duty Thermal Fan Clutch; w/ Electronic Fan Clutch
2006	GMC	Envoy XL	Reverse Rotation; Severe Duty Thermal Fan Clutch; w/ Electronic Fan Clutch
2005-2007	Saab	9-7x	Reverse Rotation; Severe Duty Thermal Fan Clutch
2004-2007	Buick	Rainier	Reverse Rotation; Severe Duty Thermal Fan Clutch
2003-2006	Chevrolet	SSR	Reverse Rotation; Severe Duty Thermal Fan Clutch
2004-2005	GMC	Envoy XUV	Reverse Rotation; Severe Duty Thermal Fan Clutch
2002-2005	GMC	Envoy	Reverse Rotation; Severe Duty Thermal Fan Clutch
2003-2007	Isuzu	Ascender	Reverse Rotation; Severe Duty Thermal Fan Clutch
2002-2005	Chevrolet	Trailblazer	Reverse Rotation; Severe Duty Thermal Fan Clutch
2002-2005	Chevrolet	Trailblazer EXT	Reverse Rotation; Severe Duty Thermal Fan Clutch
2002-2005	GMC	Envoy XL	Reverse Rotation; Severe Duty Thermal Fan Clutch
2002-2004	Oldsmobile	Bravada	Reverse Rotation; Severe Duty Thermal Fan Clutch; w/ AC

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Four Seasons
Manufacturer Part Number: 46024
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Number of Pieces: 1
Material: Aluminum
Use Type: Electro-viscous
Color: Raw aluminum in color
Wire Gauge Measurement: Uses original equipment connector
Bolt Hole Quantity: 4
Terminal Type: Male
Wire Quantity: Uses original equipment connector
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 1.54
Clutch Maximum Diameter: 7.48
Rotation: Rev
Mounting Type: Hex
Bolt Quantity: 4
Bolt Thread: M8 x 1.25 hole
Clutch Type: D - severe duty & truck fan drive
Description: Fan clutches
Dia. IN: 7.48
Electronic Clutch?: Yes
Fan Bolt Circle IN: 3.81
Fan Bolt Circle MM: 96.8
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.44
Mount Dia. MM: 36
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 190
Overall Height IN: 5.52
Overall Height MM: 140.2
Performance Rated?: Yes
Pilot Depth IN: 0.77
Interchange Part Number: 10383029 11146024 11146042 15071248 15116115 15192192 15293048
Replaces Part Numbers: 1540133 154994 15802524 15802525 215156 216033 22310 22330 271626
Replacement Part Numbers: 25790869 271644 2911336 2911337 2911349 3200 3201 376734021 46024
Replace Part Numbers: 46042 622001 8103830290 8150712480 8151161150 8151921920 89040306
Replaces Parts: 8152930480 8158025240 8158025250 8257908690 8890403060 922498 930
Brand Label: Fan Clutch
