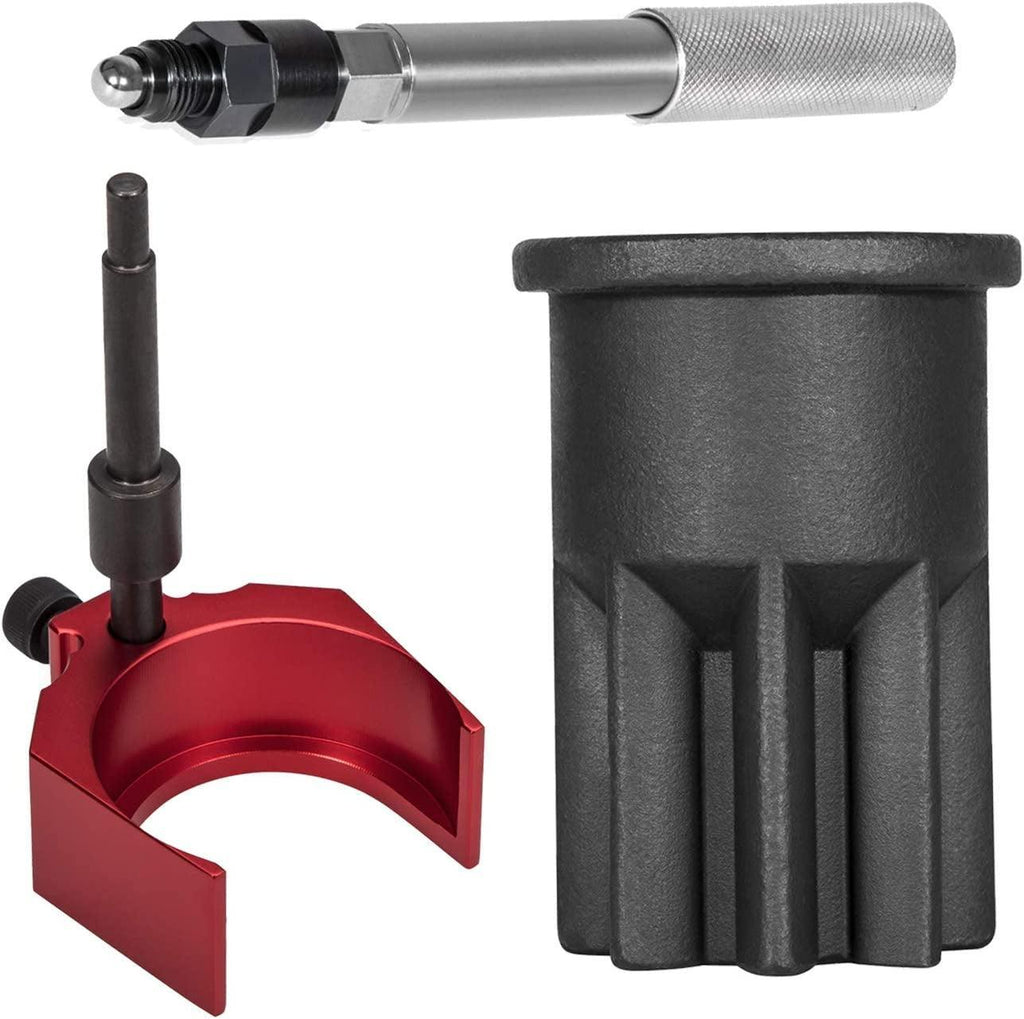

J-42083 Automatic Timing Pin+9U-7227 Injector Height Adjustment Gauge Tool+Engine Barring Socket for Caterpillar CAT 3406E C-15 C-16 (3 Tools)

Availability: In stock

Product type:

Regular price $0.00 $67.06

APPLICATION-- Three are used on Catetpillar C-15,C-16. But each can be used on many other models of CAT.(Show On Picture 2) REPLACEMENT--The...

QUESTIONS & ANSWERS

Be the first to ask a question about this.

Guaranteed safe checkout:

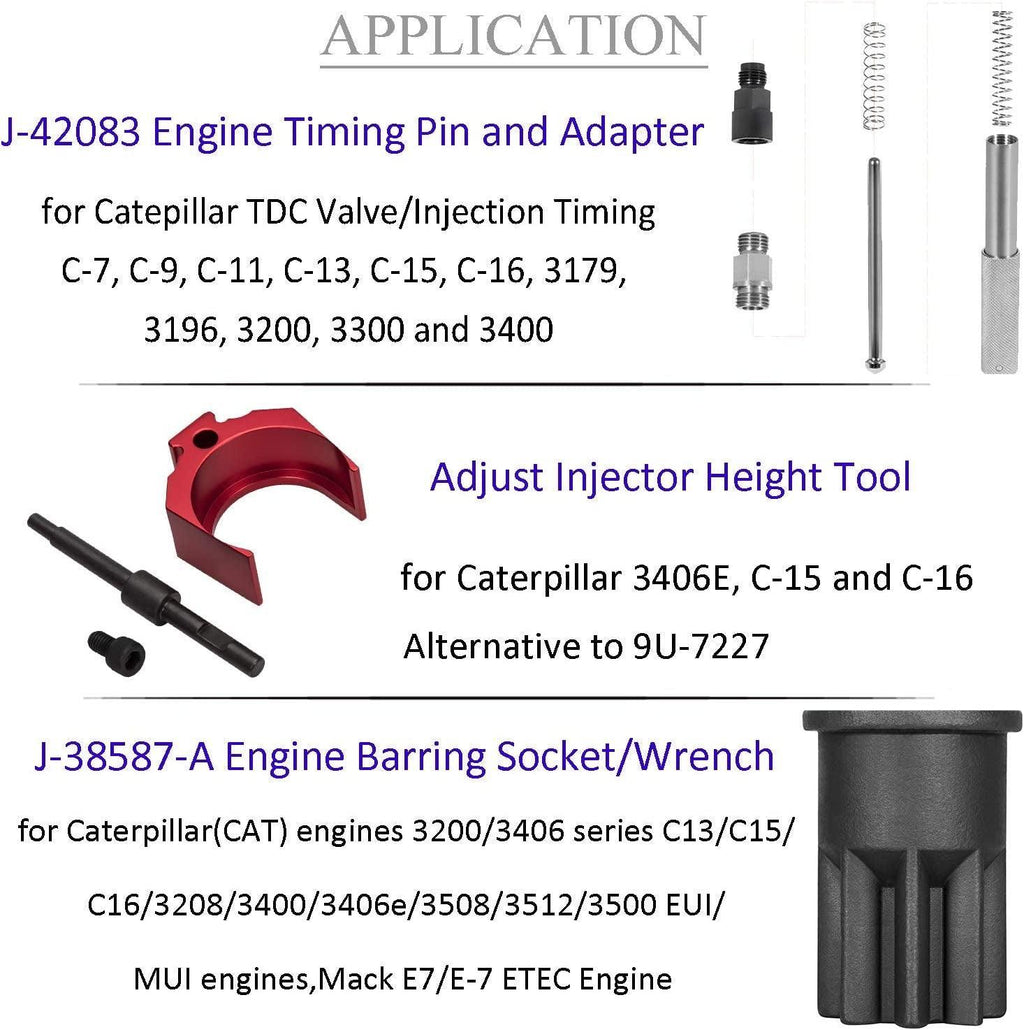

APPLICATION-- Three are used on Catetpillar C-15,C-16. But each can be used on many other models of CAT.(Show On Picture 2)
REPLACEMENT--The Engine Barring Socket is Similar to Factory Tool J-38587-A, and the Automatic Engine Timing Pin is alternative to J-42083, 139-7064 (adapter for C11), 220-2793, 136-4632. ( C-11 and C-13 require adapters 139-7063 or 139-7064 depending on the application.)Alternative to 9U-7227，properly maintain the Caterpillar Injector height.

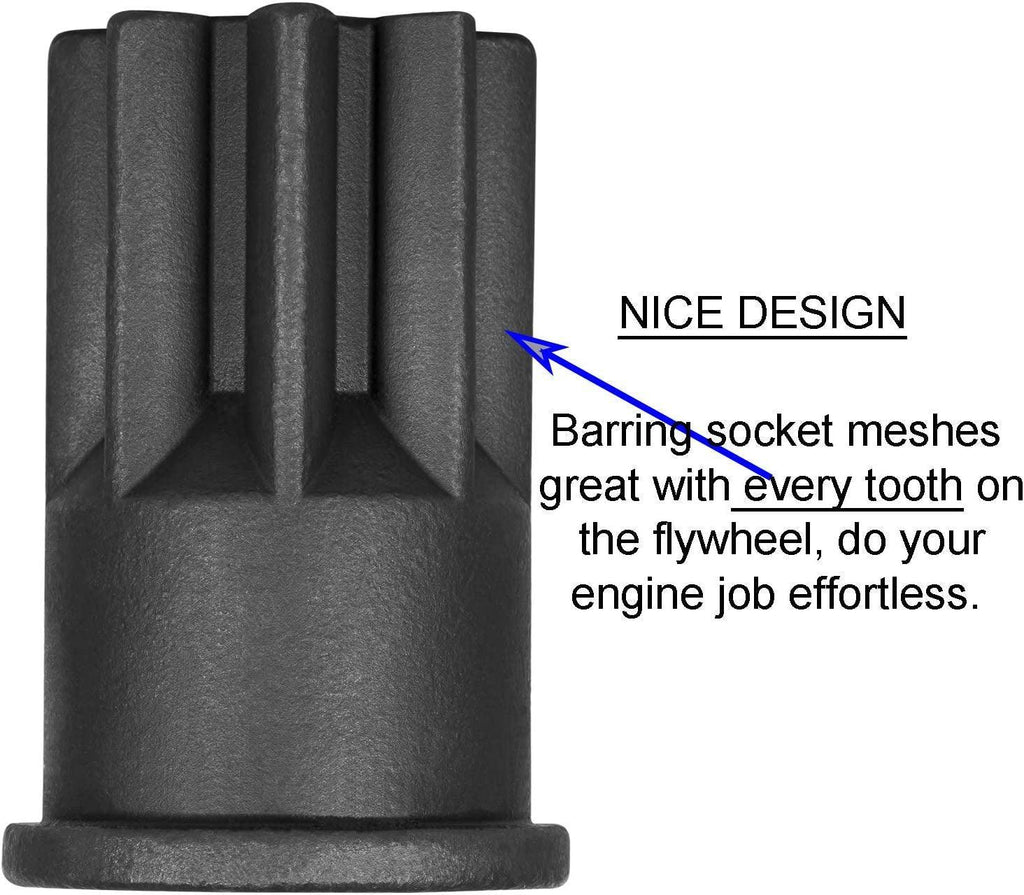

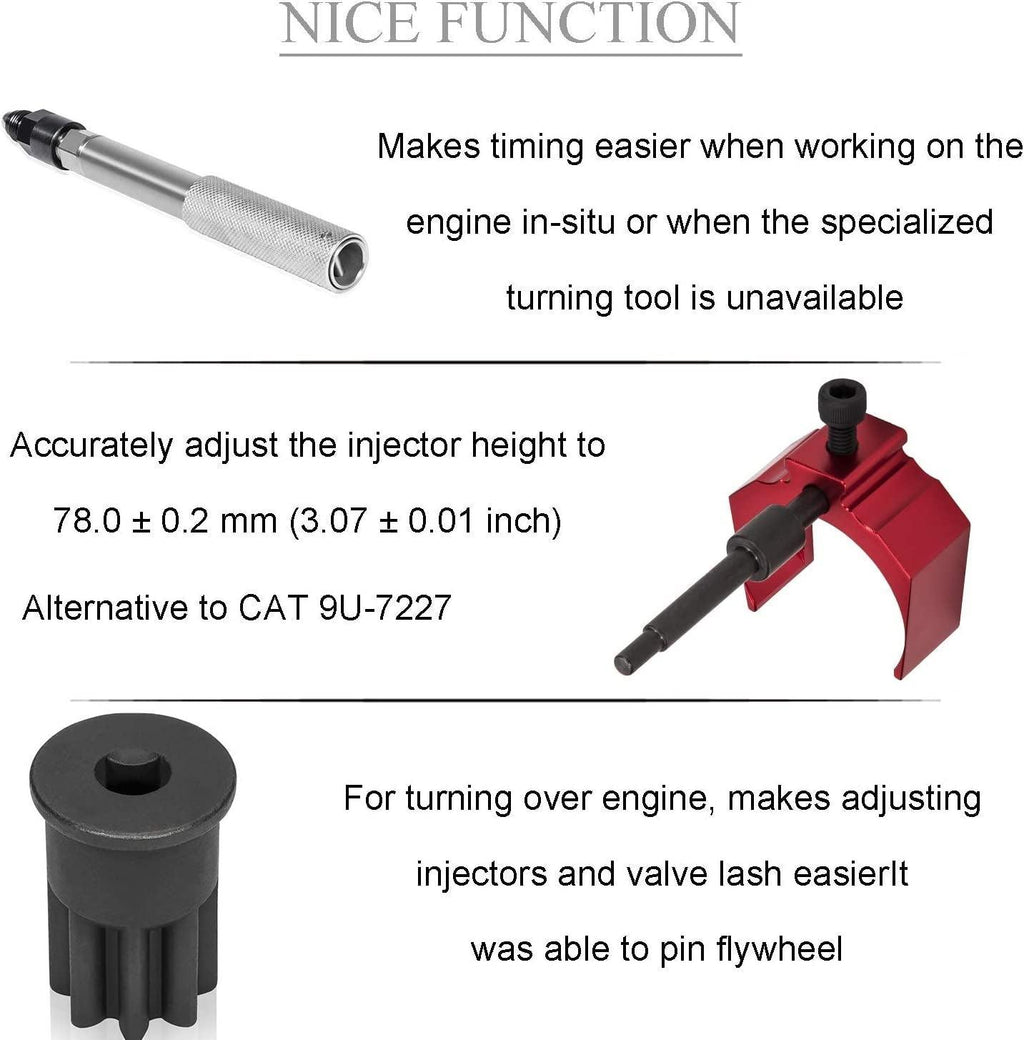

FUNCTION--Great Tool Set Timing Pin and Adapater- Make timing easier, acquire TDC and begin valve and fuel injection timing procedures; 9U7227 Injector Height Tool-Accurately adjust the Injector Height of the engine; Engine Barring Socket--Turn over engine, makes adjusting injectors and valve lash easierIt was able to pin flywheel
HIGH QUALITY MATERIAL---Constructed with high quality carbon steel, which is the best quality of those markets in sale, with great strength and durability for years of trouble-free use.
100% SATISFACTION GUARANTEE:--If you're not 100% satisfied with our Tool Set, simply return it for a full refund in 30 days, Premium Support & 12 Months Warranty

Works on Caterpillar C-7, C-9, C-11, C-13, C-15, C-16, 3179, 3196, 3200, 3300 and 3400.

Works on Caterpillar(CAT) engines 3200/3406 series
C13/C15/C16/3208/3400/3406e/3508/3512/3500 EUI/MUI engines,Mack E7/E-7 ETEC Engine etc.

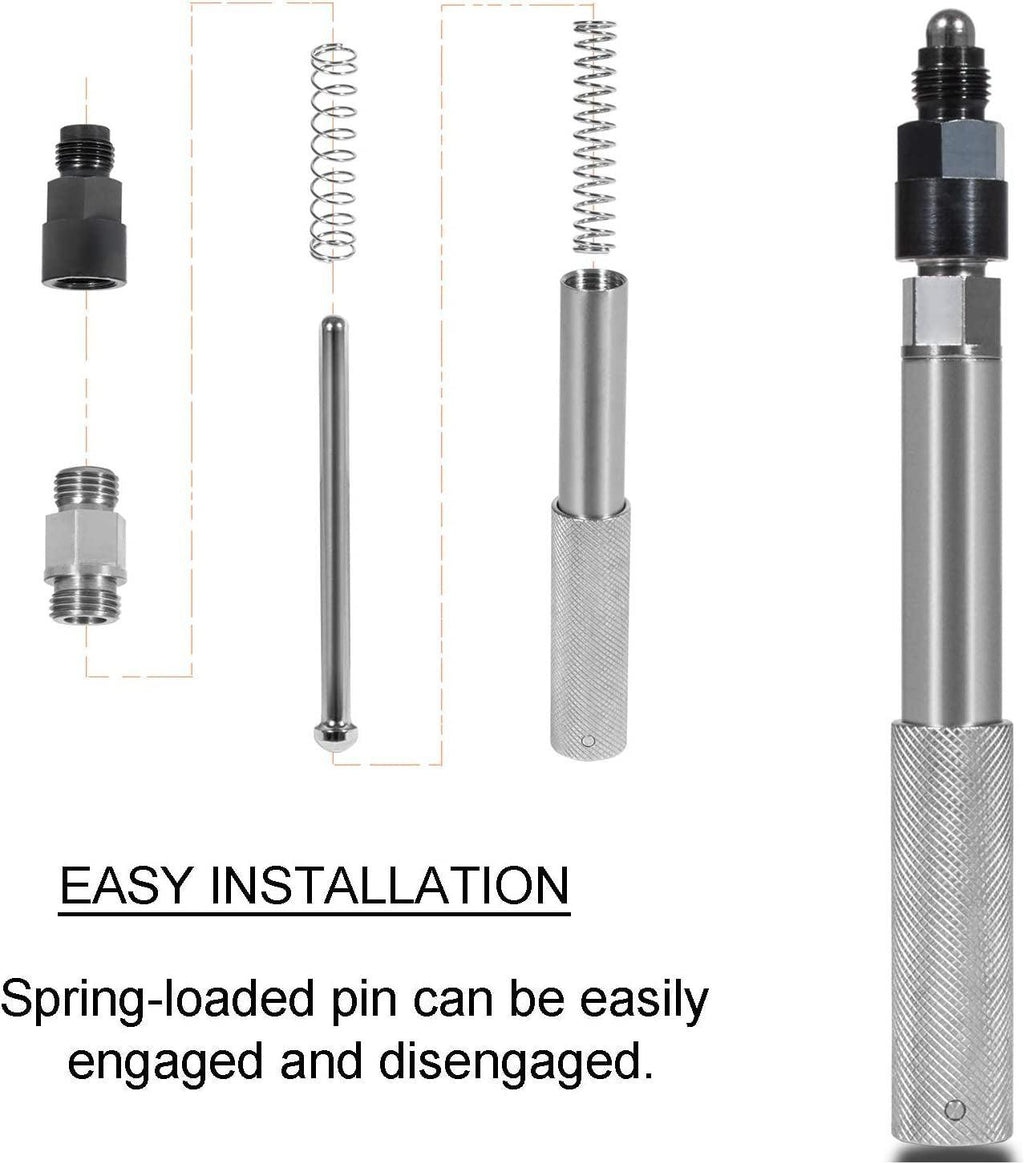

1. Remove the plug from either the left or right side timing access holes.
2. To install, hand tighten the J42083 Automatic Timing Pin Lock into the timing access hole.

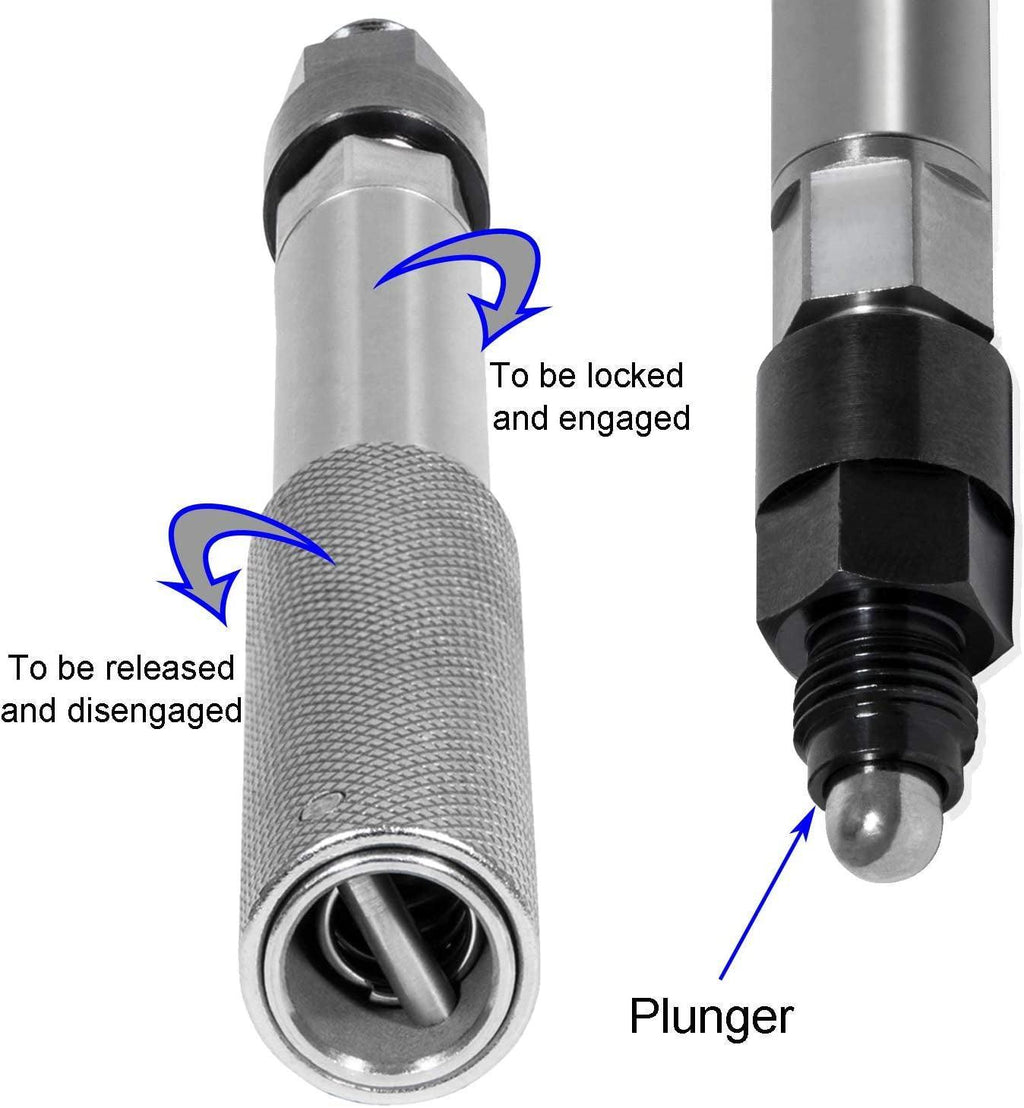

3. Preload the spring on the automatic timing lock by pushing the slide handle forward and turn it clockwise to engage either of the two locking slots.
4. Manually, turn engine in direction of rotation(usually counter clockwise refer to Caterpillar Service Manual)until a notice “click” sound is heard.
5.The automatic timing pin plunger has now engaged the flywheel timing holes in either the top center compression or exhaust stroke.
6. To remove, turn slide handle counter clockwise to release spring tension on the plunger (if plunger doesn’t retract from flywheel with light pressure, jog the flywheel back and forth). Unscrew from flywheel housing.

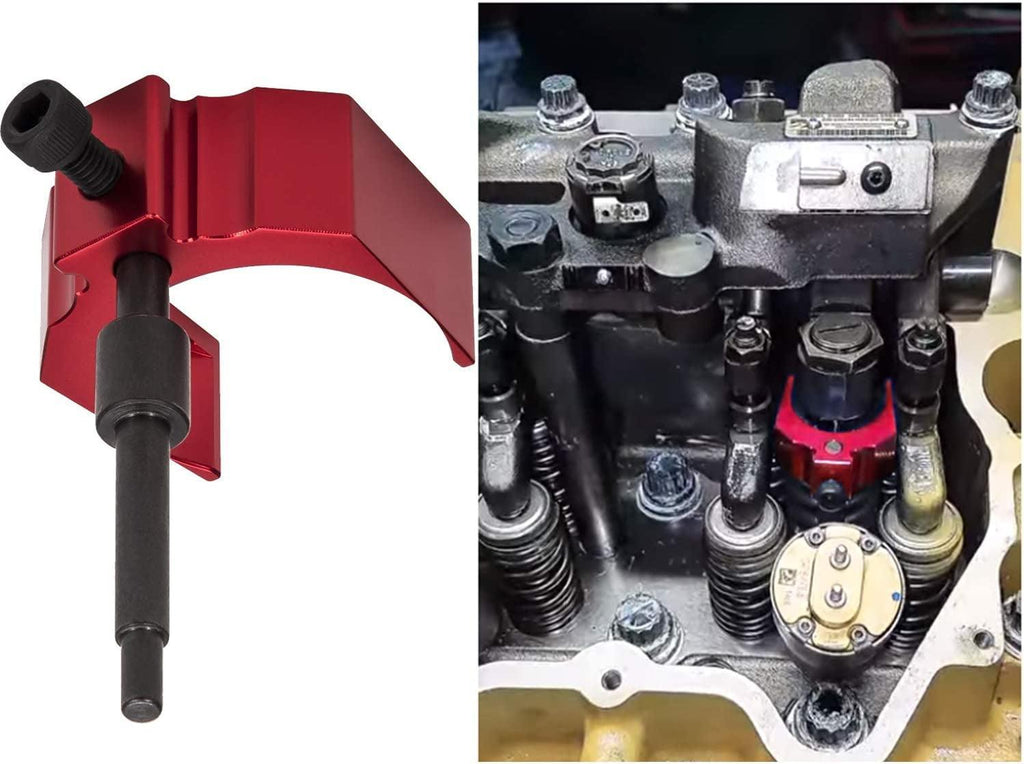

1. When you finish the valve adjustments to the injector height, you can use the tool to accurately adjust the injector height to 78.0 ± 0.2 mm (3.07 ± 0.01 inch).
TIP:The dimension is measured from the top of the unit injector to the machined ledge of the fuel injector body.
2. Tighten lock-nut to a torque of 100 ± 10 N·m (74 ± 7 lb ft).
