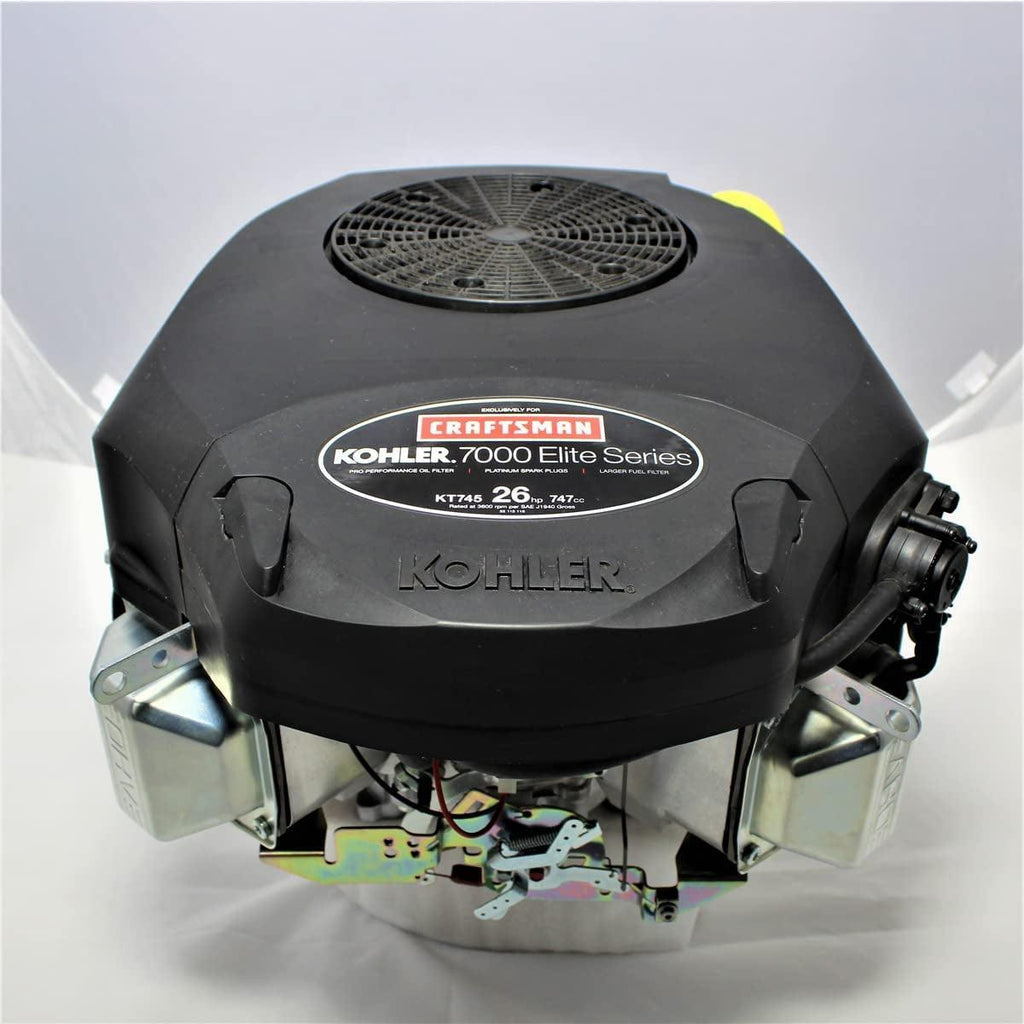

KT745 26HP Engine Replacement Upgrade for KT735-3024

Availability: In stock

Product type:

Vendor: greatparts

Regular price $0.00 $2,661.19

This engine was originally built for Craftsman. It is compatible with the specification number in this listing Engineered and assembled in the...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Guaranteed safe checkout:

This engine was originally built for Craftsman. It is compatible with the specification number in this listing
Engineered and assembled in the United States
PRO Performance filtration package increases air, oil and fuel filter capacity for extra protection
Starts hot or cold, even at temperatures below freezing, with Smart-Choke technology
Pressure lubrication extends engine life by keeping critical components well lubricated
Consistent-Cut technology maintains engine speed even in tough mowing conditions

7000 SERIES KT745 26HP

Note: This engine was originally built for Craftsman. It is compatible with the specification number in this listing.

Note: The Muffler is not included. Your original muffler is compatible. We provide exhaust gaskets to re-use the original.

Includes:

3 Year, Unlimited Hour, Limited Warranty Serviced by your Local Engine OEM Dealer *seller does not service manufacturer defect warranty
Plug-N-Play Wiring Adaptor
New Engine

Based on the Command PRO commercial engine design, the air-cooled, V-time 7000 Series will run rings around your neighbors.

Features

PRO Performance filtration package increases air, oil and fuel filter capacity for extra protection
Pressure lubrication extends engine life by keeping critical components well lubricated
Starts hot or cold, even at temperatures below freezing, with Smart-Choke technology
No need to choke the engine - starts at any throttle position
Cleaner cuts - Consistent-Cut technology maintains engine speed even in tough mowing conditions

Additional Features:

Based on commercial engine designs
Heavy-duty cast-iron cylinder liners
Pressure lubrication
Consistent-Cut technology for more consistent power
Dual-sealed air filter
Optional HD or PRO Performance air filtration and platinum spark plug
Smart-Choke technology with mechanical calibrated choke system
Engineered and assembled in the United States.

Engine Type and Specs:

Four-cycle, twin-cylinder, air-cooled, vertical shaft, gasoline, OHV, with cast iron liner.

Power: 19.4[1]kw / 26hp

Displacement: 747cm3 / 45.6"

Bore: 83mm / 3.3"

Stroke: 69mm / 2.7"

Gross Torque: 57.5[1]Nm / 42.4(lb-ft)

Compression Ratio: 9.1:1

Dry Weight: 38.6kg / 85lbs

Oil Capacity: 1.9L / 2qt

Lubrication: Pressure lubrication w/full flow filter

Dimensions: LxWxH 473 x 445 x 354mm / 18.6 x 17.5 x 13.9"

Backpressure Limit[2]: 50

Certified Power: 18.71[3]kw / 25.1hp

Certified rpm: 3600

Emissions Compliance: EPA Phase III

Tech support is not included with engines.
