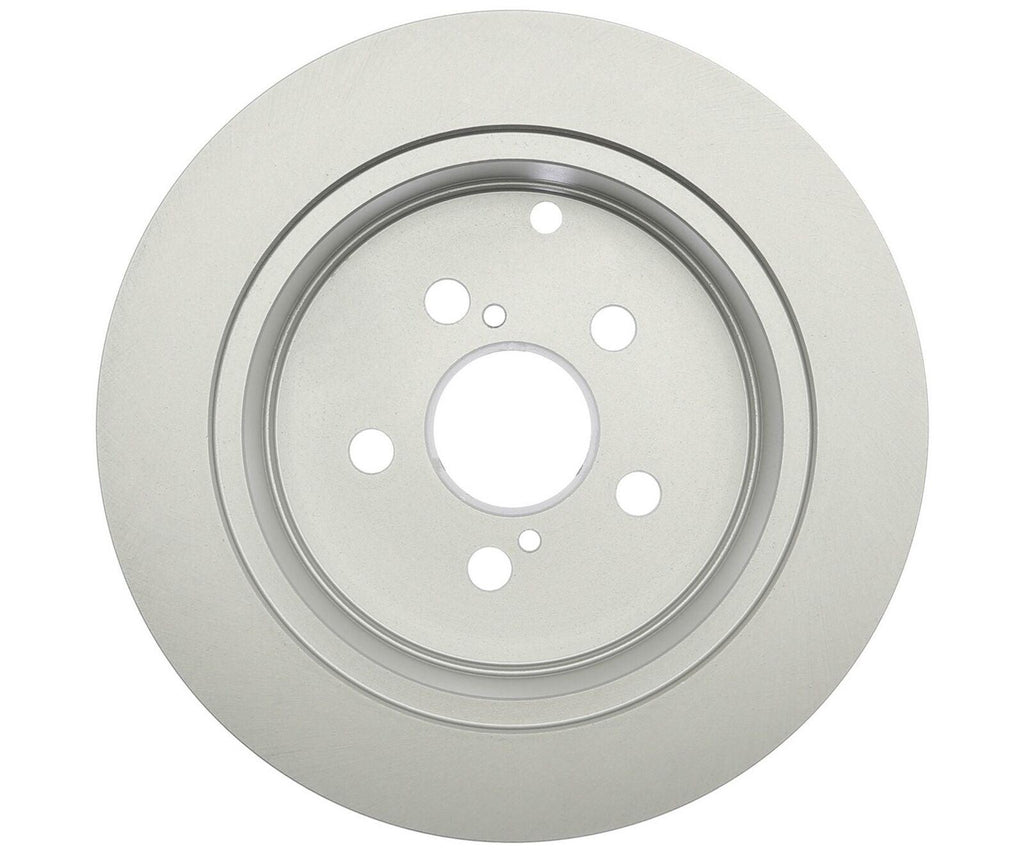

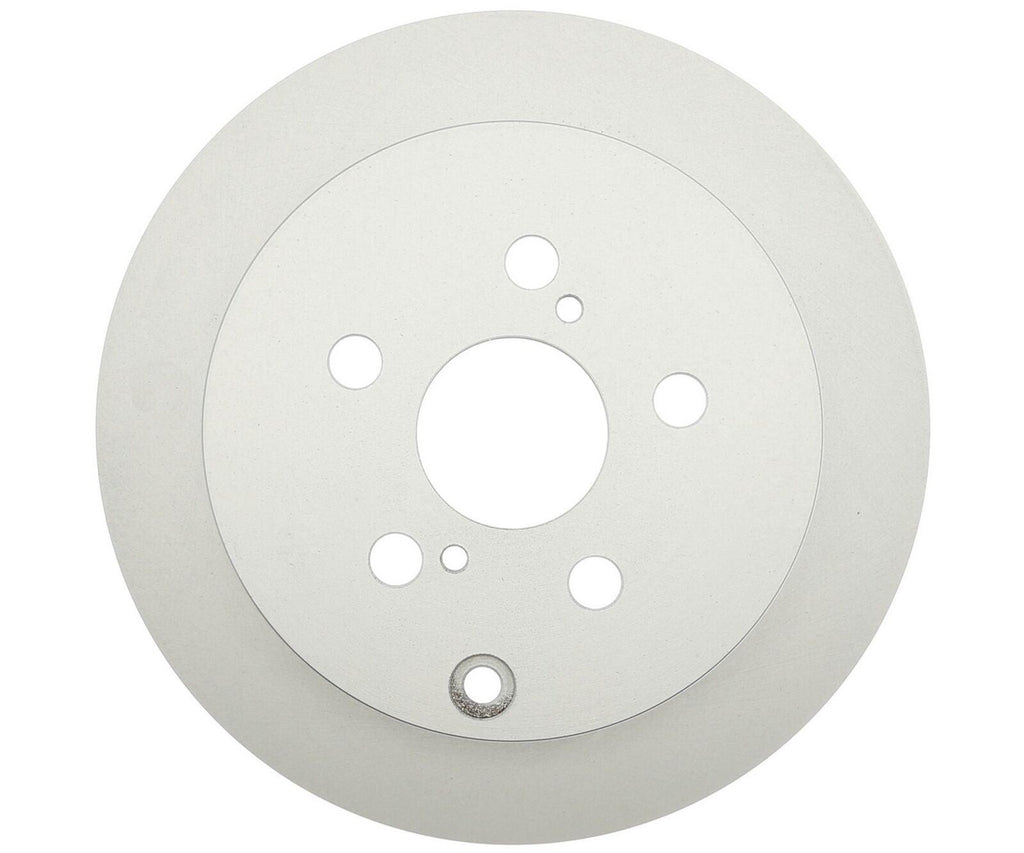

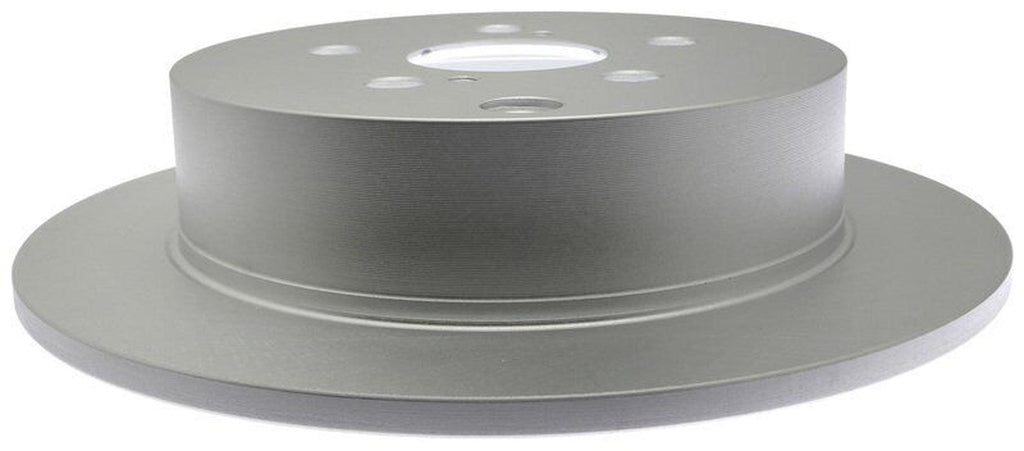

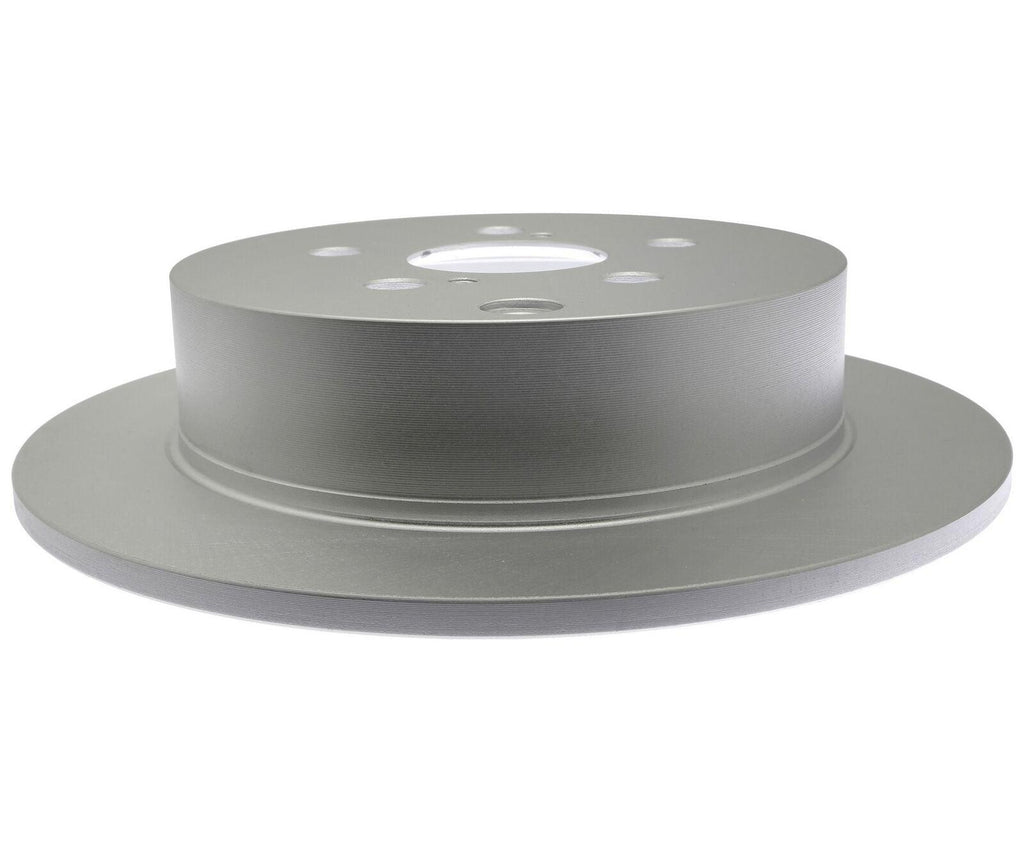

Raybestos Rear Disc Brake Rotor for Tc, Matrix, Vibe, Corolla, Celica (96933FZN)

Availability: In stock

Product type:

Vendor: Does not apply

Regular price $0.00 $73.62

eBay Raybestos Rear Disc Brake Rotor for tC, Matrix, Vibe, Corolla, Celica (96933FZN) Fitment Chart: Years Make Model Submodel Drive Type 2005-2010...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Guaranteed safe checkout:

eBay

Raybestos Rear Disc Brake Rotor for tC, Matrix, Vibe, Corolla, Celica (96933FZN)

Fitment Chart:

Years	Make	Model	Submodel	Drive Type
2005-2010	Scion	tC
2000-2005	Toyota	Celica
2005-2006	Toyota	Corolla
2003-2006	Pontiac	Vibe	GT	FWD
2003-2008	Toyota	Matrix

Specifications:

Part Category: Disc Brake Rotor
Brand: Raybestos
Manufacturer Part Number: 96933FZN
Vehicle Position: Rear
Placement on Vehicle: Rear
Label: Element3; Coated Rotor
Product Type: Factory Replacement
Type: Disc Brake Rotor
Number of Pieces: 1
Discard Thickness: 0.295
Discard Thickness: 7.500
Nominal Thickness: 0.354
Nominal Thickness: 9.000
Overall Height: 2.195
Overall Height: 55.750
Outside Diameter: 10.585
Outside Diameter: 268.850
Mounting Bolt Hole Quantity: 5
Solid Or Vented Type Rotor: Solid
Center Hole Diameter: 2.168
Center Hole Diameter: 55.050
Mounting Bolt Hole Circle Diameter: 100.000
Mounting Bolt Hole Circle Diameter: 3.937
Mounting Bolt Hole Diameter: 100.000
Mounting Bolt Hole Diameter: 3.937
Stud/Lug Hole Quantity: 5
Conventional Or Drum-In-Hat Type Rotor: Drum-in-hat
Interchange Part Number: 08.8501.85 08.A273.20 08.A273.21 080-2183 083-2827 107302 117302
Replaces Part Numbers: 120.44115 120.44115CRY 121.44115 125.44115 125.44115CRY 14-31269
Replacement Part Numbers: 126.44115CSL 126.44115CSR 126.44115SL 126.44115SR 127.44115CL
Replace Part Numbers: 127.44115CR 127.44115L 127.44115R 128.44115CL 128.44115CR 145293
Replaces Parts: 128.44115L 128.44115R 211285-C 25565 31269 31269DG 31269G 320.441
