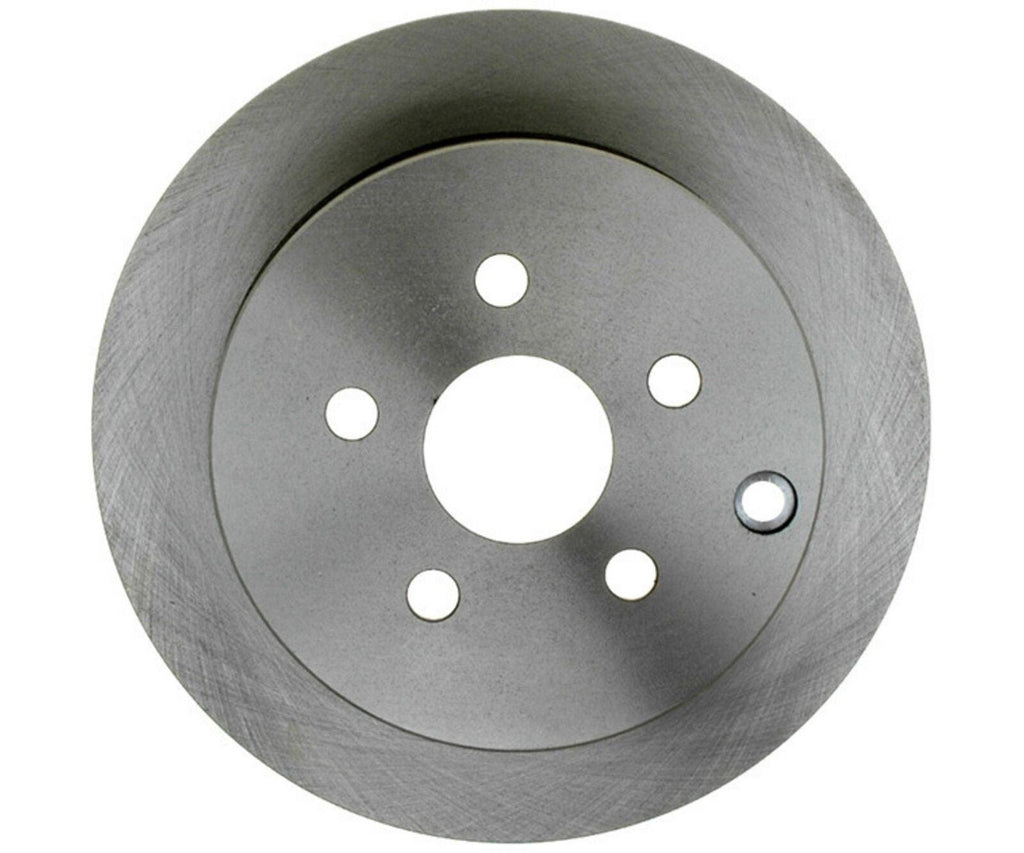

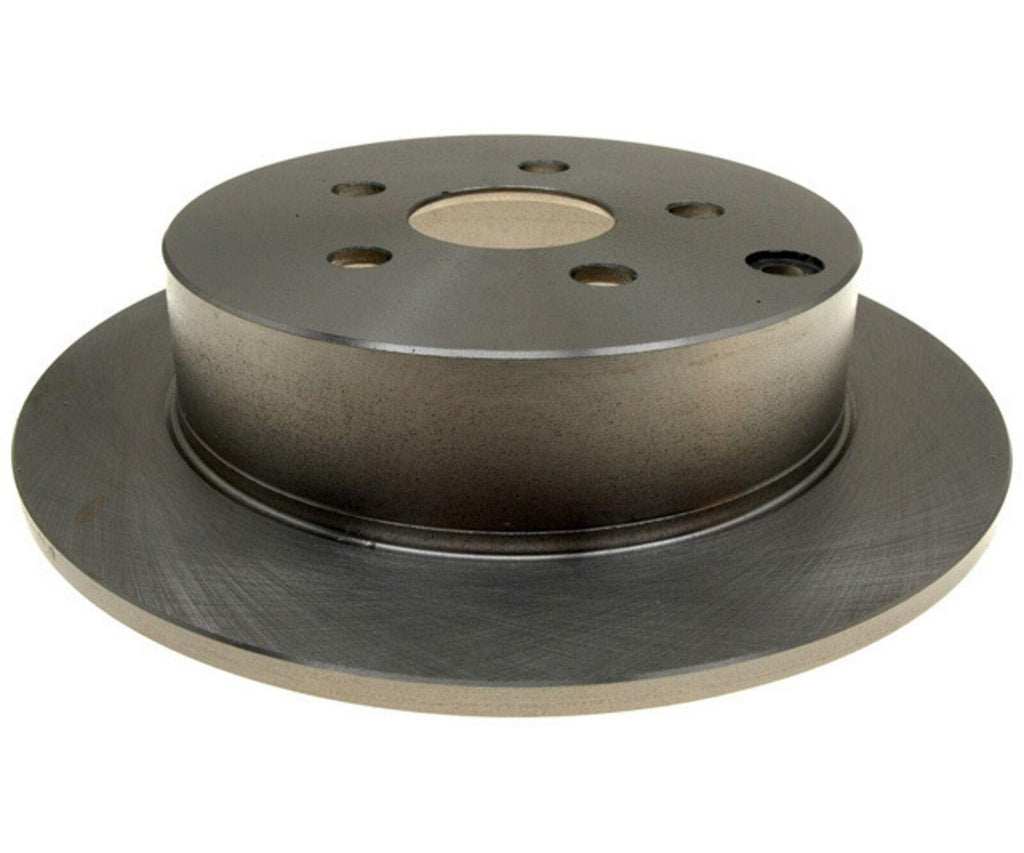

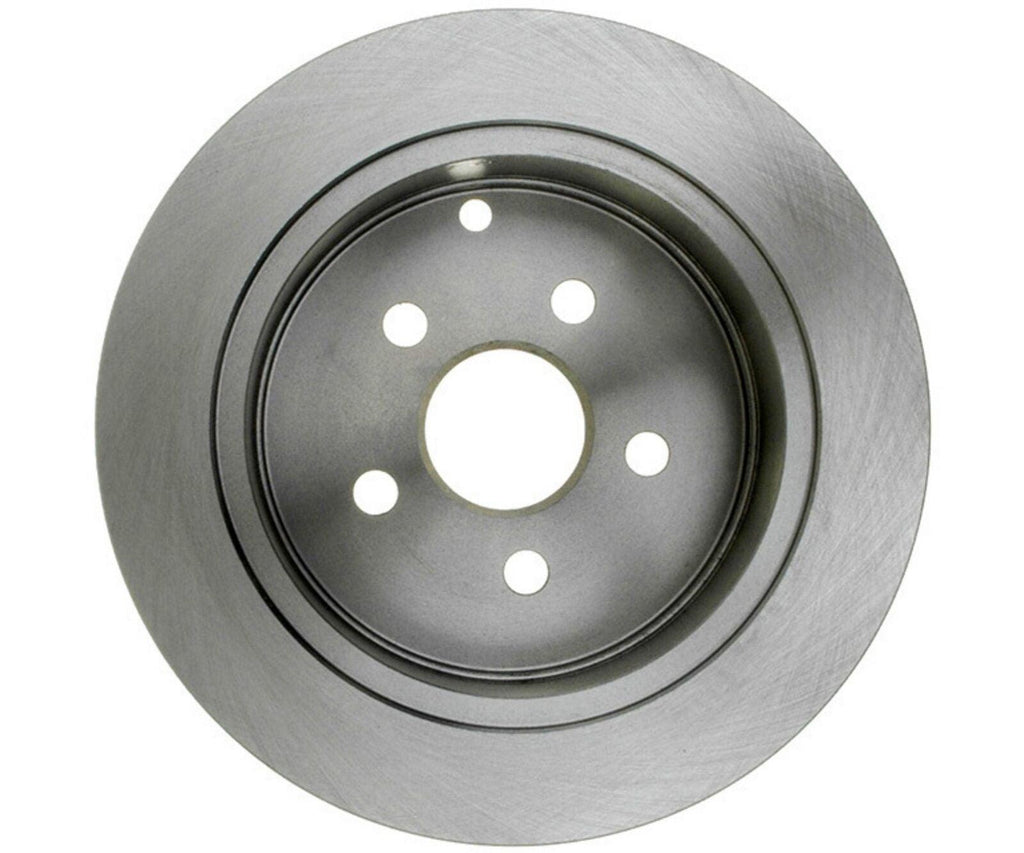

Raybestos Rear Disc Brake Rotor for Tc, Matrix, Vibe, Corolla, Celica (96933R)

Availability: In stock

Product type:

Vendor: Does not apply

Regular price $0.00 $66.13

eBay Raybestos Rear Disc Brake Rotor for tC, Matrix, Vibe, Corolla, Celica (96933R) Fitment Chart: Years Make Model Submodel Drive Type 2005-2010...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Guaranteed safe checkout:

eBay

Raybestos Rear Disc Brake Rotor for tC, Matrix, Vibe, Corolla, Celica (96933R)

Fitment Chart:

Years	Make	Model	Submodel	Drive Type
2005-2010	Scion	tC
2000-2005	Toyota	Celica
2005-2006	Toyota	Corolla
2003-2006	Pontiac	Vibe	GT	FWD
2003-2008	Toyota	Matrix

Specifications:

Part Category: Disc Brake Rotor
Brand: Raybestos
Manufacturer Part Number: 96933R
Vehicle Position: Rear
Placement on Vehicle: Rear
Label: R-Line
Product Type: Factory Replacement
Type: Disc Brake Rotor
Number of Pieces: 1
Discard Thickness: 0.295
Discard Thickness: 7.500
Nominal Thickness: 0.354
Nominal Thickness: 9.000
Overall Height: 2.195
Overall Height: 55.750
Outside Diameter: 10.585
Outside Diameter: 268.850
Mounting Bolt Hole Quantity: 5
Solid Or Vented Type Rotor: Solid
Center Hole Diameter: 2.168
Center Hole Diameter: 55.050
Mounting Bolt Hole Circle Diameter: 100.000
Mounting Bolt Hole Circle Diameter: 3.937
Mounting Bolt Hole Diameter: 100.000
Mounting Bolt Hole Diameter: 3.937
Stud/Lug Hole Quantity: 5
Conventional Or Drum-In-Hat Type Rotor: Drum-in-hat
Interchange Part Number: 08.8501.85 08.A273.20 08.A273.21 080-2183 083-2827 107302 117302
Replaces Part Numbers: 120.44115 120.44115CRY 121.44115 125.44115 125.44115CRY 14-31269
Replacement Part Numbers: 126.44115CSL 126.44115CSR 126.44115SL 126.44115SR 127.44115CL
Replace Part Numbers: 127.44115CR 127.44115L 127.44115R 128.44115CL 128.44115CR 145293
Replaces Parts: 128.44115L 128.44115R 211285-C 25565 31269 31269DG 31269G 320.441

Important Information:

Product Notes - If the product notes states "with" or "without", this means this will fit if your vehicle is equipped "with" or "without" that feature. For example, if it states "with fog lamps", this means your vehicle must be equipped with fog lamps. This does not mean that fog lamps are included.
